Instrument Cluster / Carrier: Service and Repair

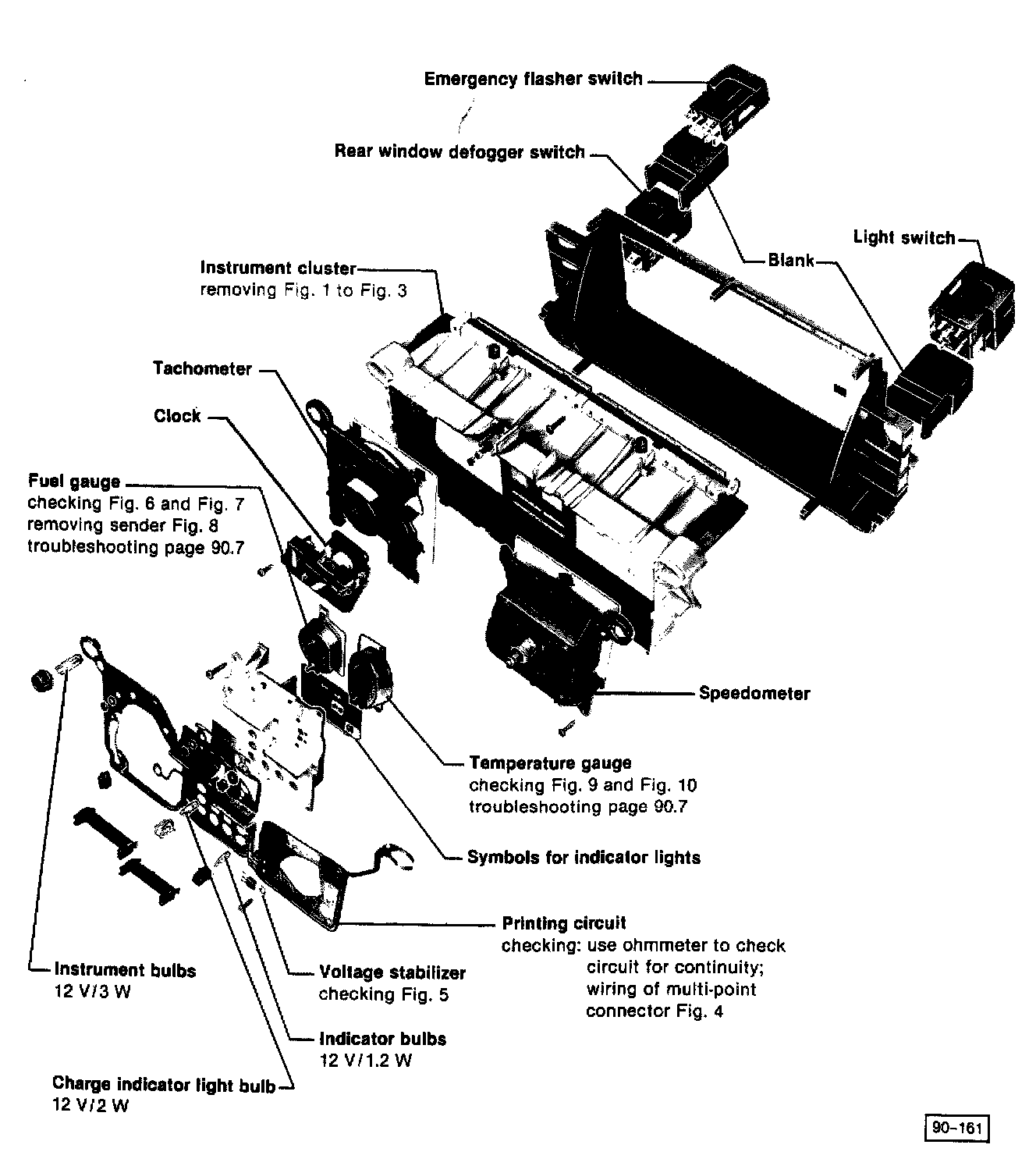

INSTRUMENT CLUSTER REMOVAL:

Fig 1 Instrument Cluster Removing:

CAUTION: Before starting to work on any part of the electrical system disconnect battery ground strap.

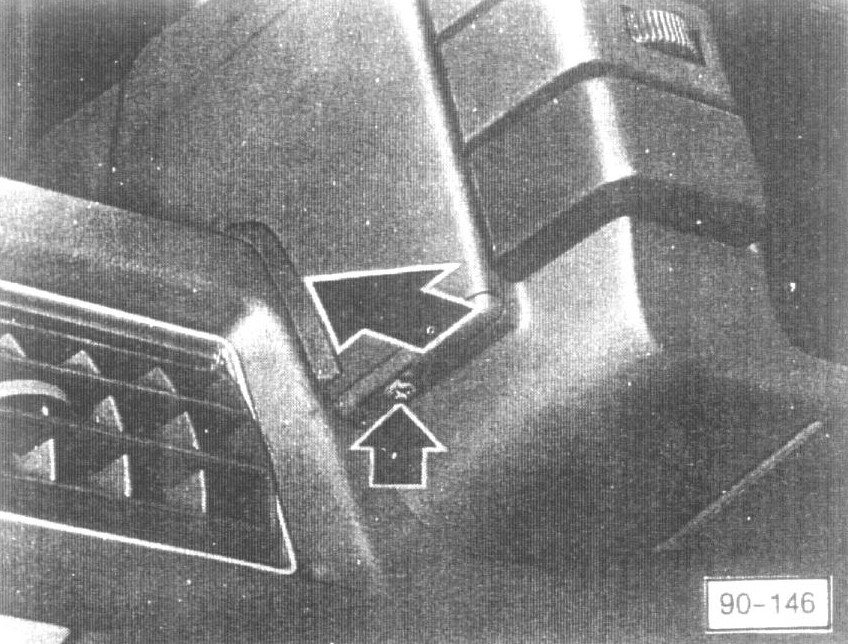

-Remove screws ( bottom arrow )
-Remove instrument cluster cover and trim strip ( top arrow )

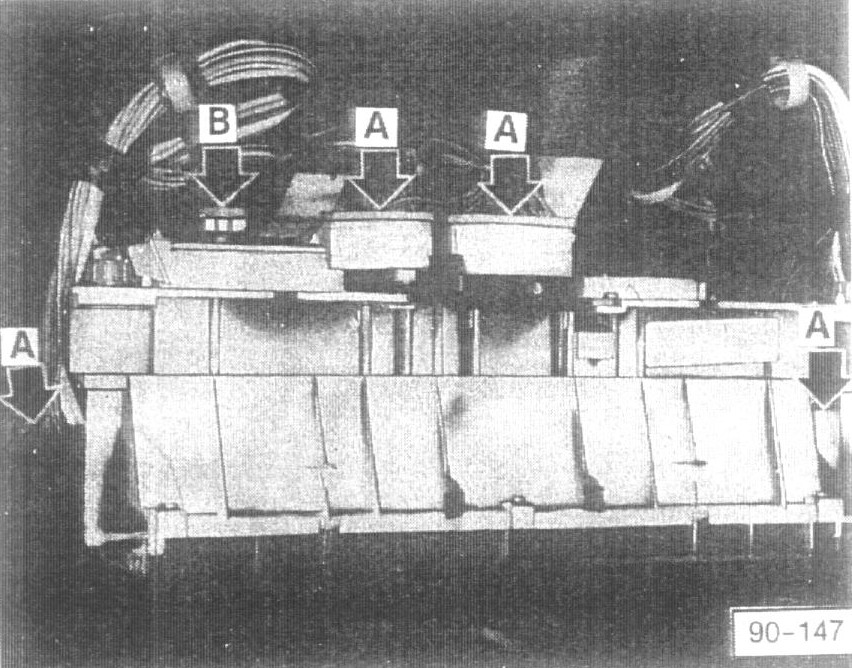

-Disconnect multi-point connectors ( arrows A )
-Detach speedometer cable ( arrow B )






-Remove switches

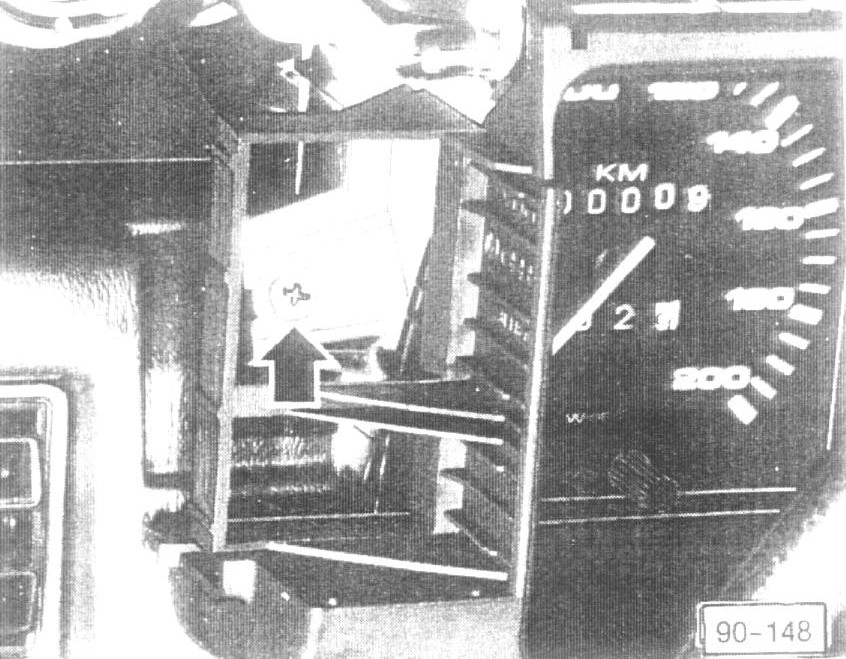

-Remove screws ( arrow )
-Remove instrument cluster

INSTALL:

-Reverse procedures
