Vacuum Brake Booster: Adjustments

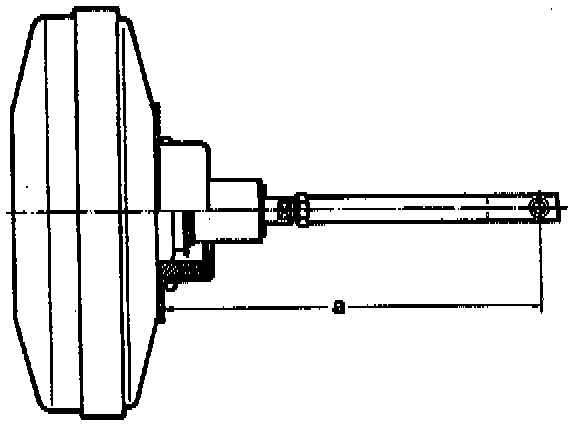

Vacuum Brake Booster With Push Rod:

- When measuring, the push rod must be perpendicular to the surface of the brake booster.
- Adjust dimension - A - to 269.0 mm (10 19/32 in.).
