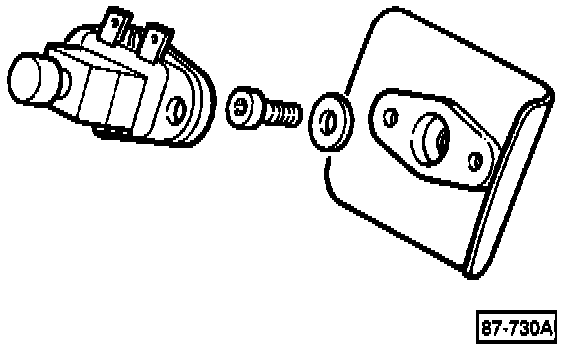

Throttle Full Open Switch HVAC
>>
Description and Operation
>>
Up to VIN GA 053 400
Up to VIN GA 053 400
Disengages A/C compressor clutch at full throttle via A/C time delay relay.
