Evaporator Temperature Sensor / Switch: Testing and Inspection

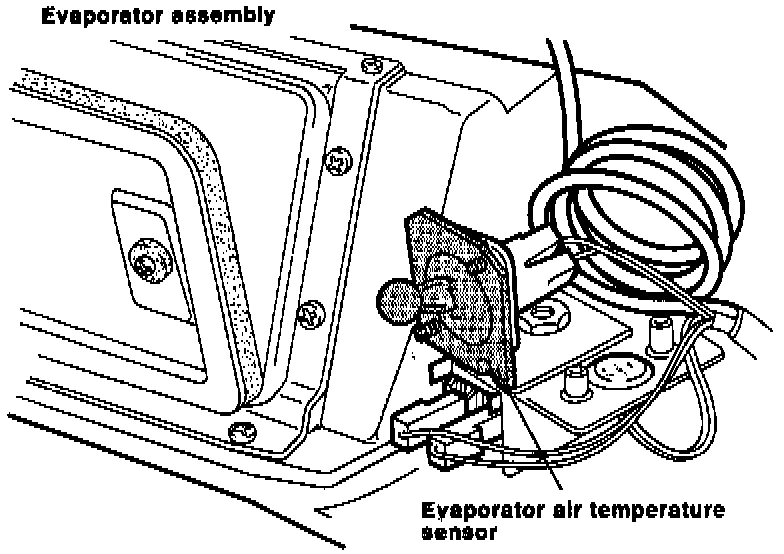

Remove connections on evaporator air temperature sensor and measure resistance.

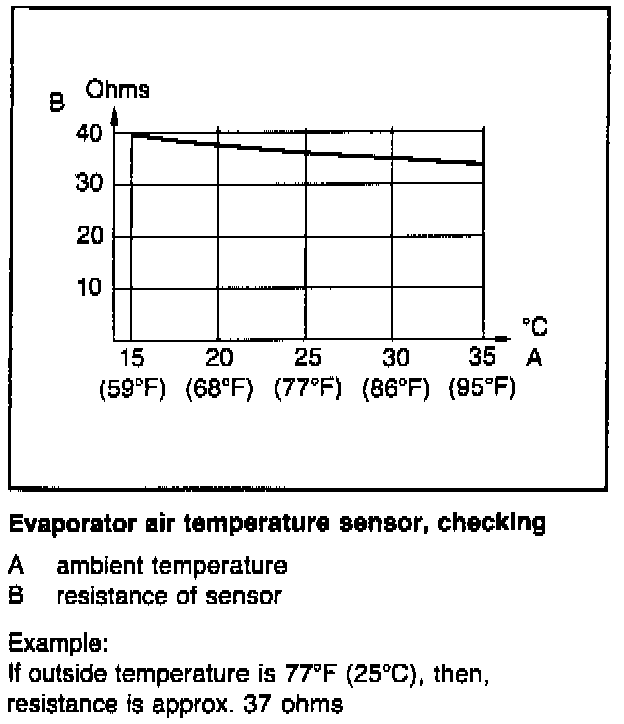

Refer to graph.
