Home >> Audi >> 1986 >> 5000CS Turbo L5-2226cc 2.22L SOHC Turbo (MC) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - HVAC >> Coolant Temperature Sensor / Switch HVAC >> Locations >> Blower Thermo-Switch >> Non-Turbo

Non-Turbo

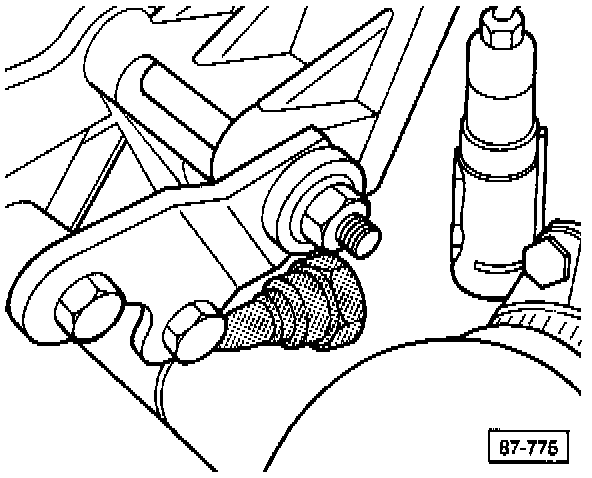

5000S: in cylinder head next to #1 cylinder
