Ambient Temperature Sensor / Switch HVAC: Testing and Inspection

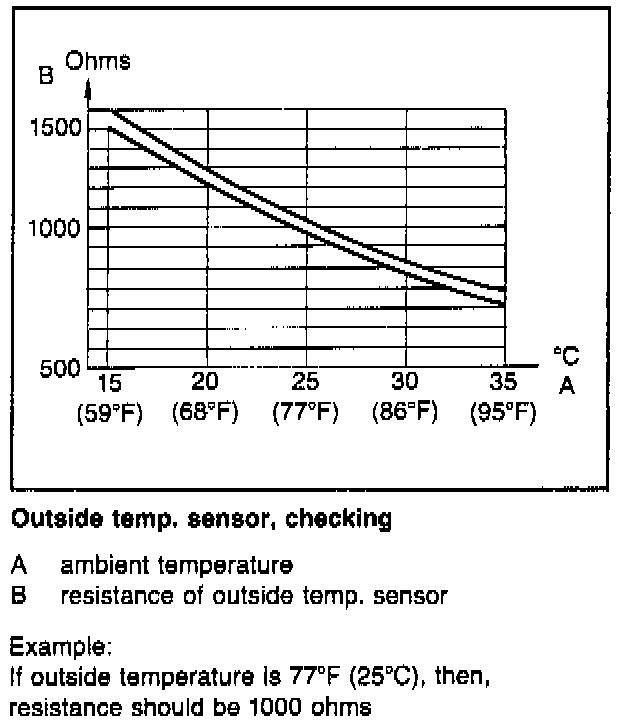

Measure resistance at terminals. Refer to graph for specification.
