Intake Air Temperature Sensor (Turbo)

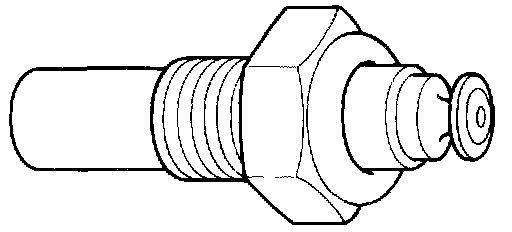

Intake Air Temperature Sensor

The intake air temperature sensor is located in the intercooler outlet. The resistance signal is used by the control unit to aid in controlling boost pressure.
