Home
>>
Audi
>>
1986
>>
5000CS Turbo L5-2226cc 2.22L SOHC Turbo (MC)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Locations
>>

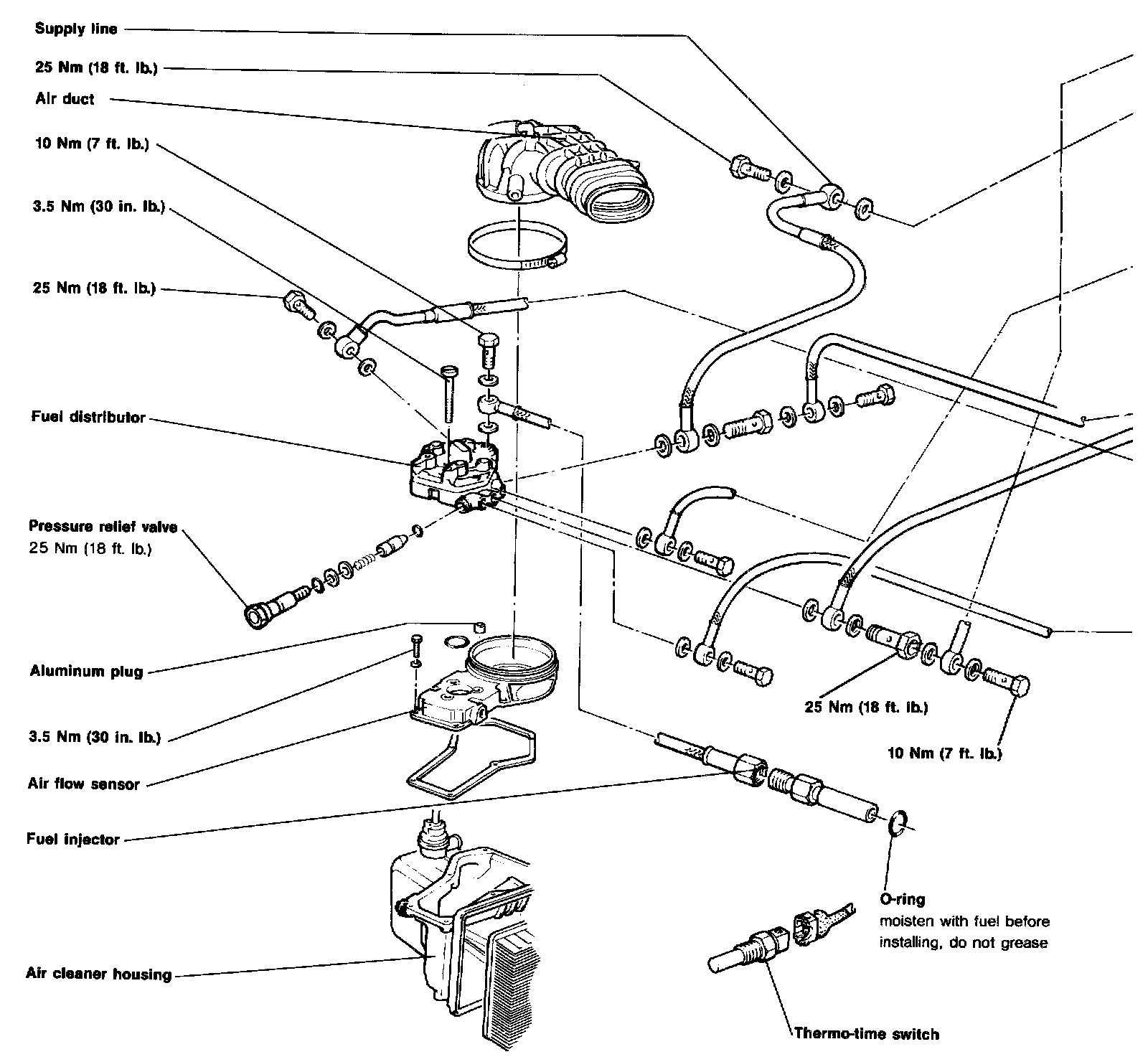

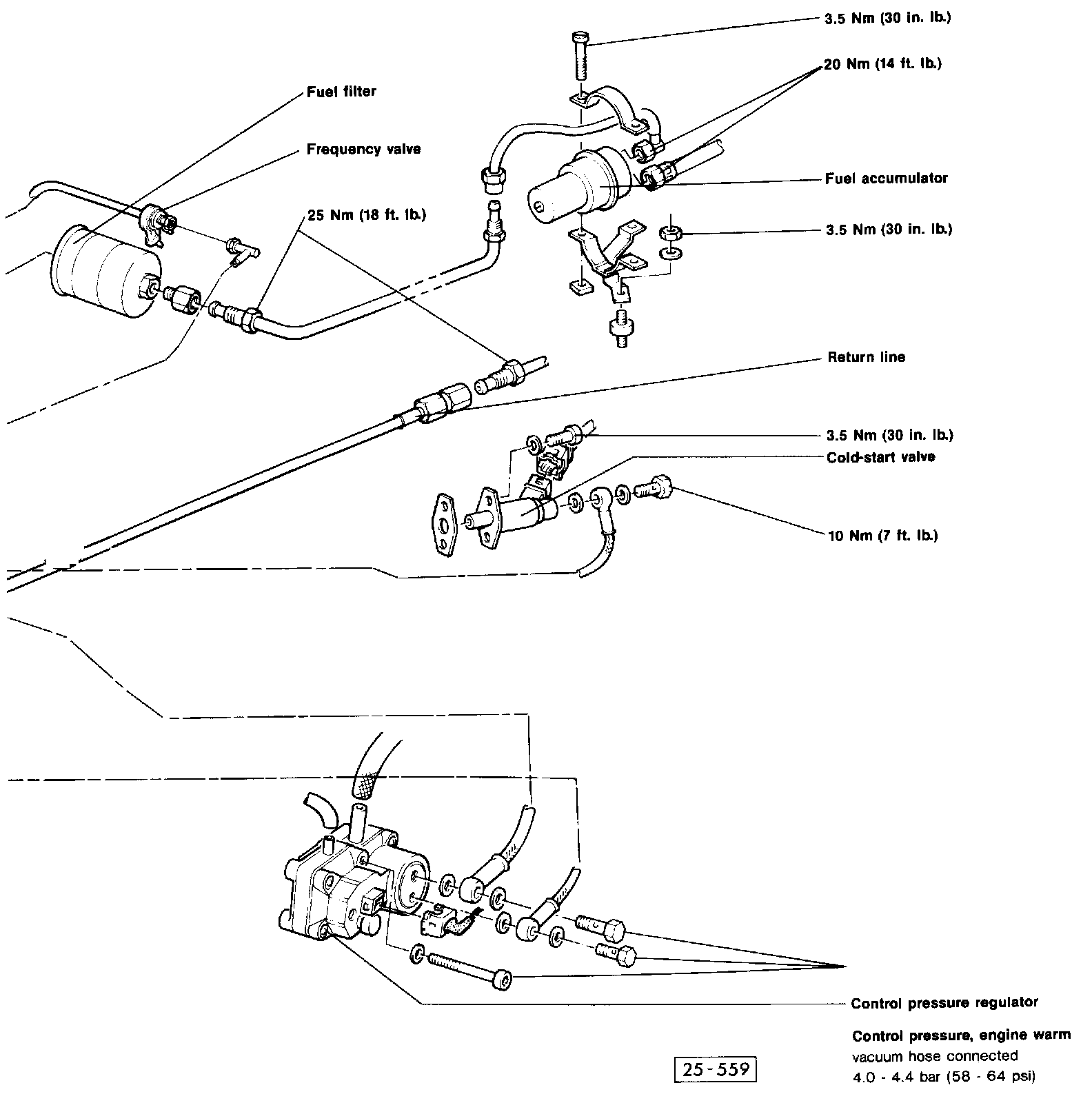

CIS Injection System
CIS Injection System
I Of II:
II Of II:
