High Pressure Sensor / Switch: Service and Repair

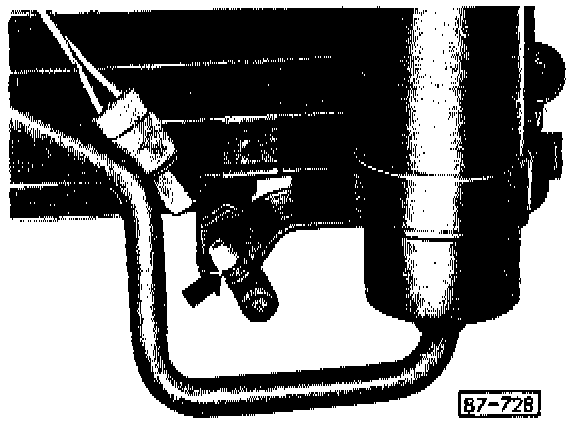

High pressure switch can be removed without opening refrigerant system.
When installing, make sure O-ring is properly located in groove (arrow).
Lubricate with refrigerant oil.
