Evaporator Temperature Sensor / Switch: Service and Repair






When installing

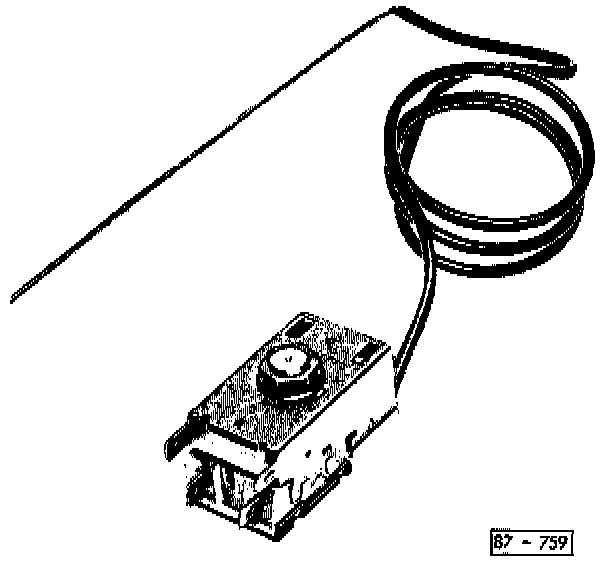

- Insert capillary tube 180 mm (7.0 in.) into evaporator case
- Ensure contact with fins
