Home >> Audi >> 1986 >> 5000CS Turbo L5-2226cc 2.22L SOHC Turbo (MC) >> Repair and Diagnosis >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Emission Control Systems >> System Diagram >> Turbo (U.S.)

Turbo (U.S.)

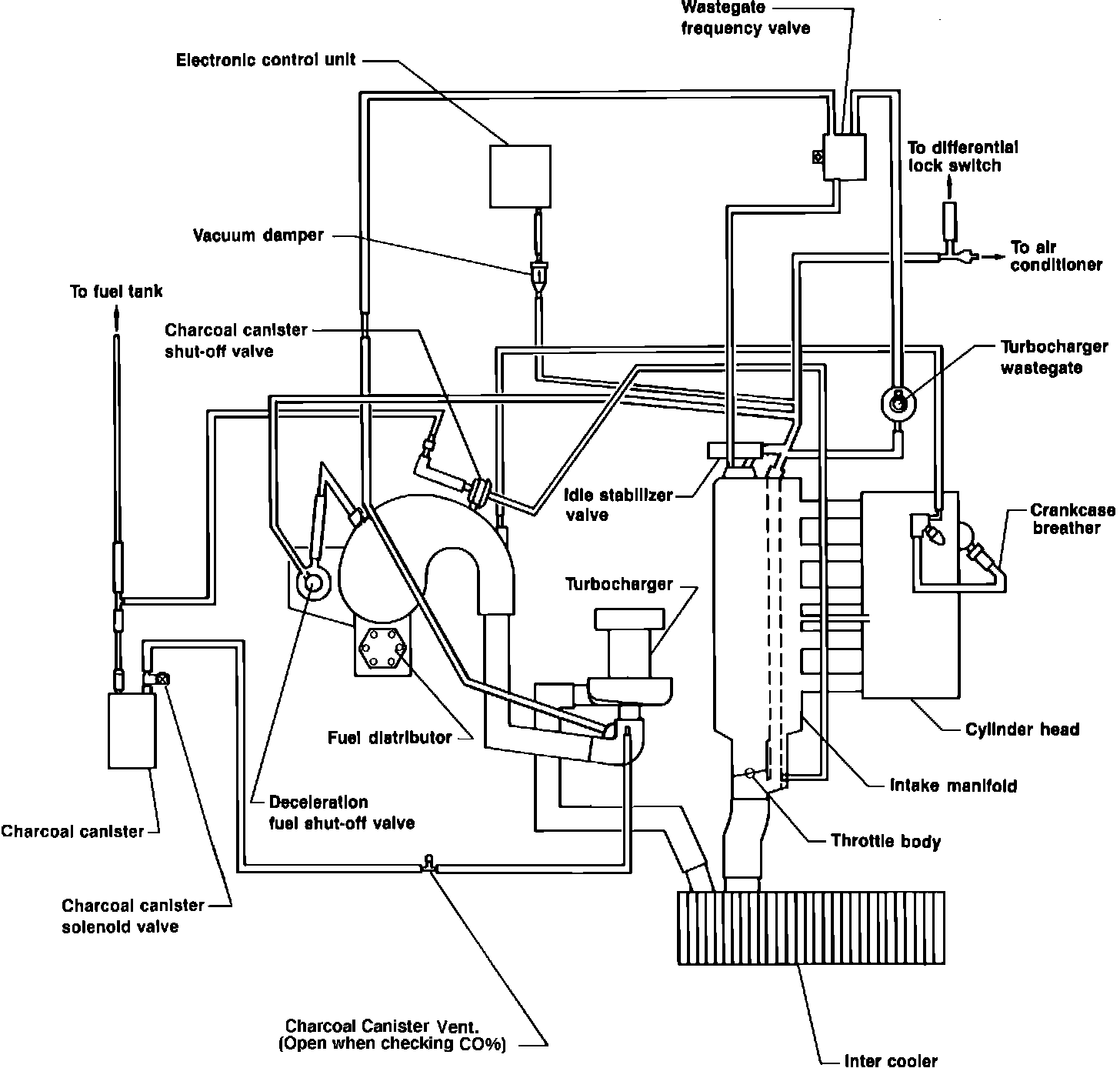

Fig. 10 Vacuum Hose Diagram:
