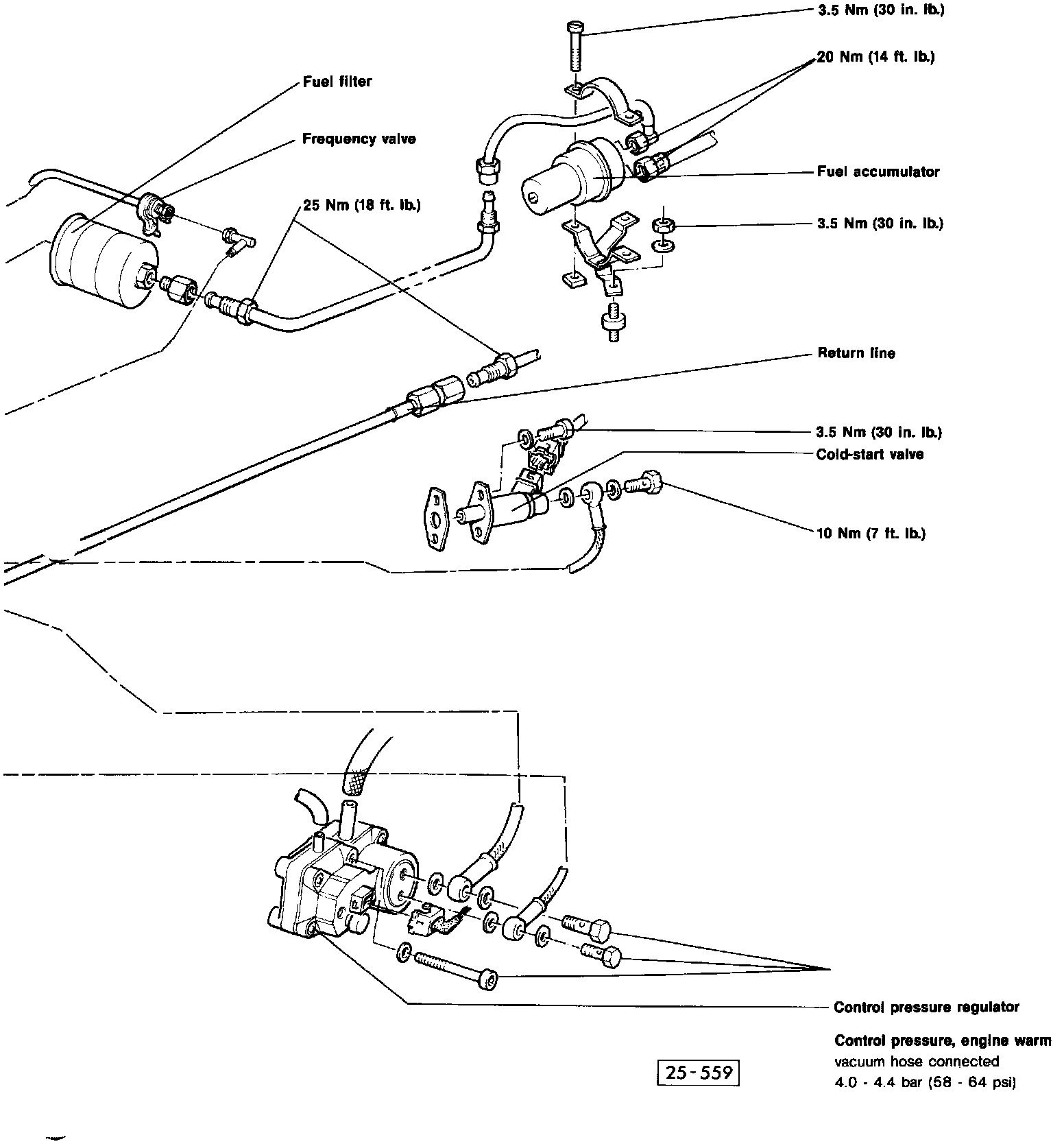

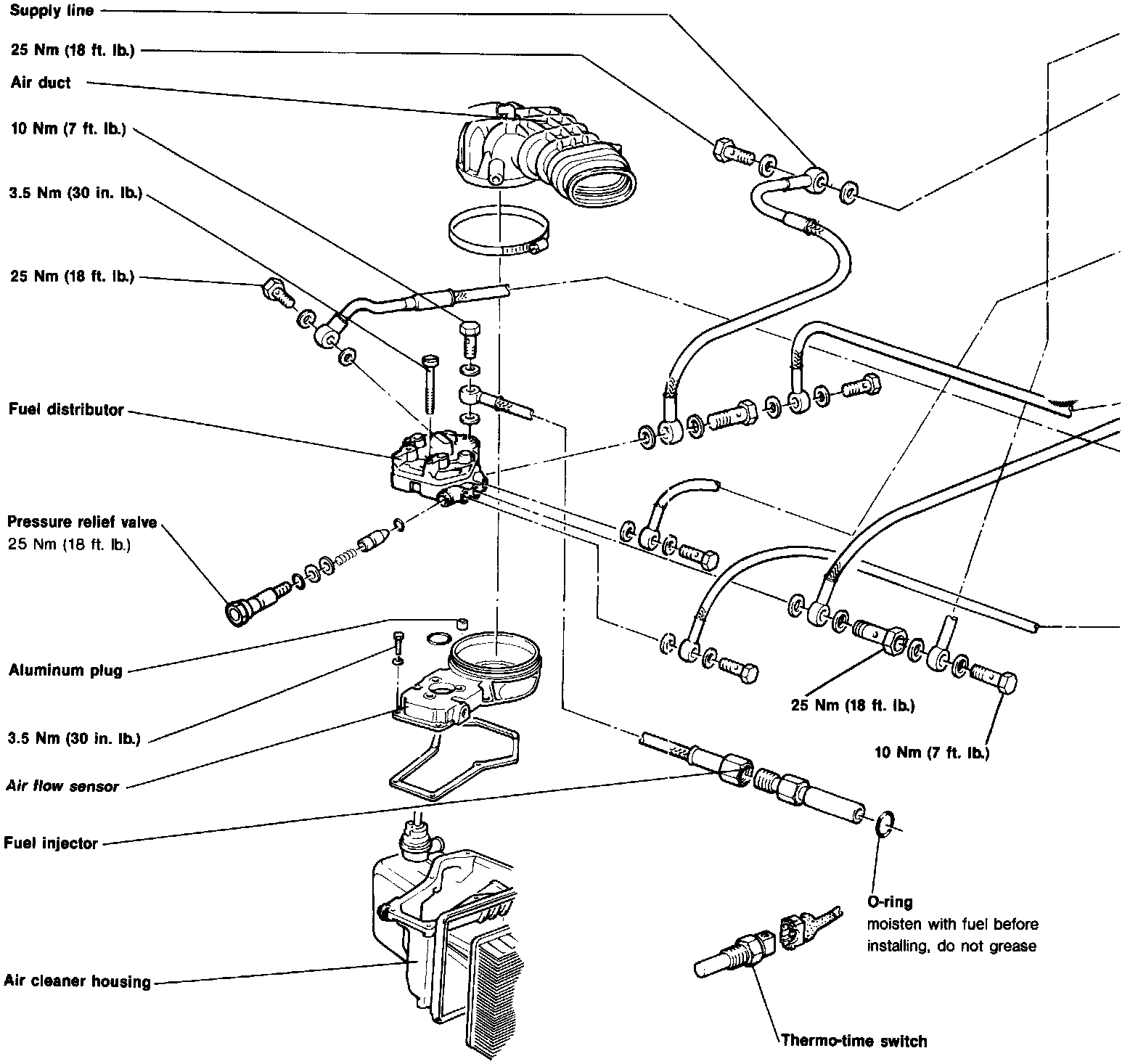

CIS Components
CIS Components
CAUTION:
Clean all fuel connections before removing, always replace gaskets
