Up to VIN GA 053 400

ADJUST

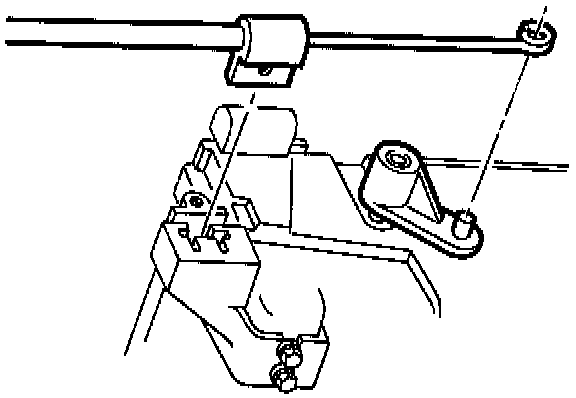

- Disconnect heater flap cable at programmer.
- Inner cable end must not come up against the lever arm.
- Disconnect cable clip on heat exchanger housing.
- Turn ignition on.
- Set maximum heat output 9O°F (32°C) AUTO on control head.
- Wait two minutes.
- Reattach cable to programmer.

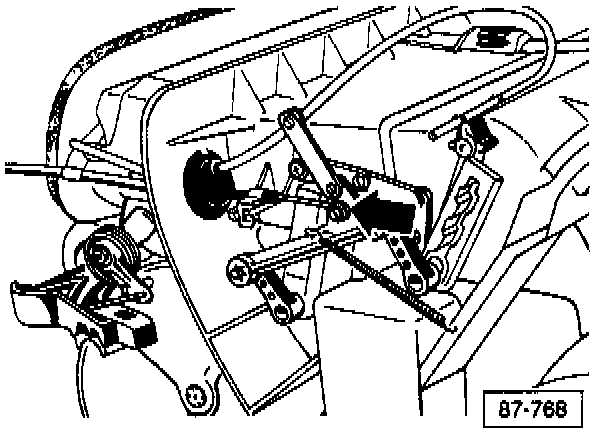

- Push cable sleeve in the direction of arrow until heater flaps for temperature regulation come against stop.
- Install cable clip.


CHECK ADJUSTMENT
- Engine warm and idling.

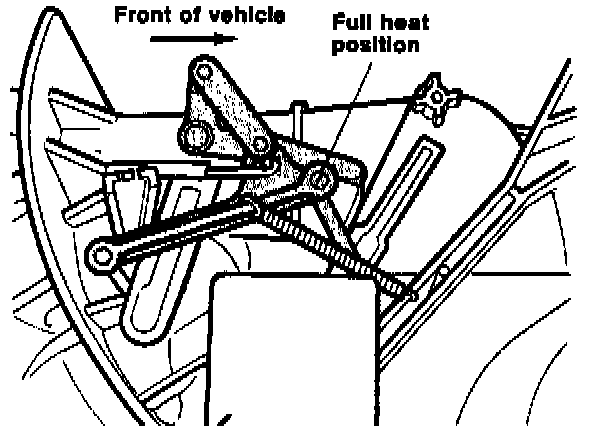

- Set control head to Auto 9O°F (32°C).
- Wait 2 minutes.





- Check cable adjustment at heat exchanger housing.

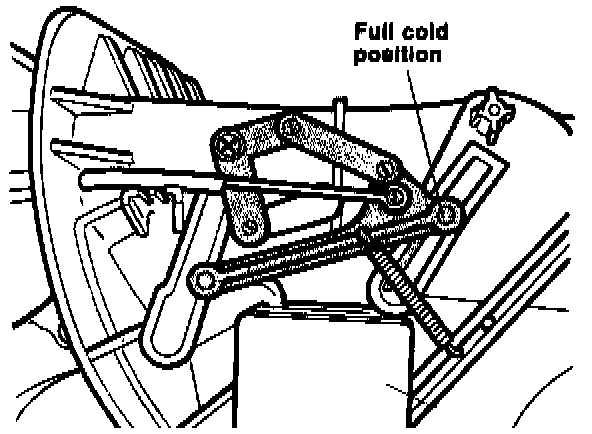

- Set control head to Auto 6O°F (15°C).
- Wait 2 minutes.





- Check cable adjustment at heat exchanger housing.
