Tracks 66-72

Diagrams By Track Number

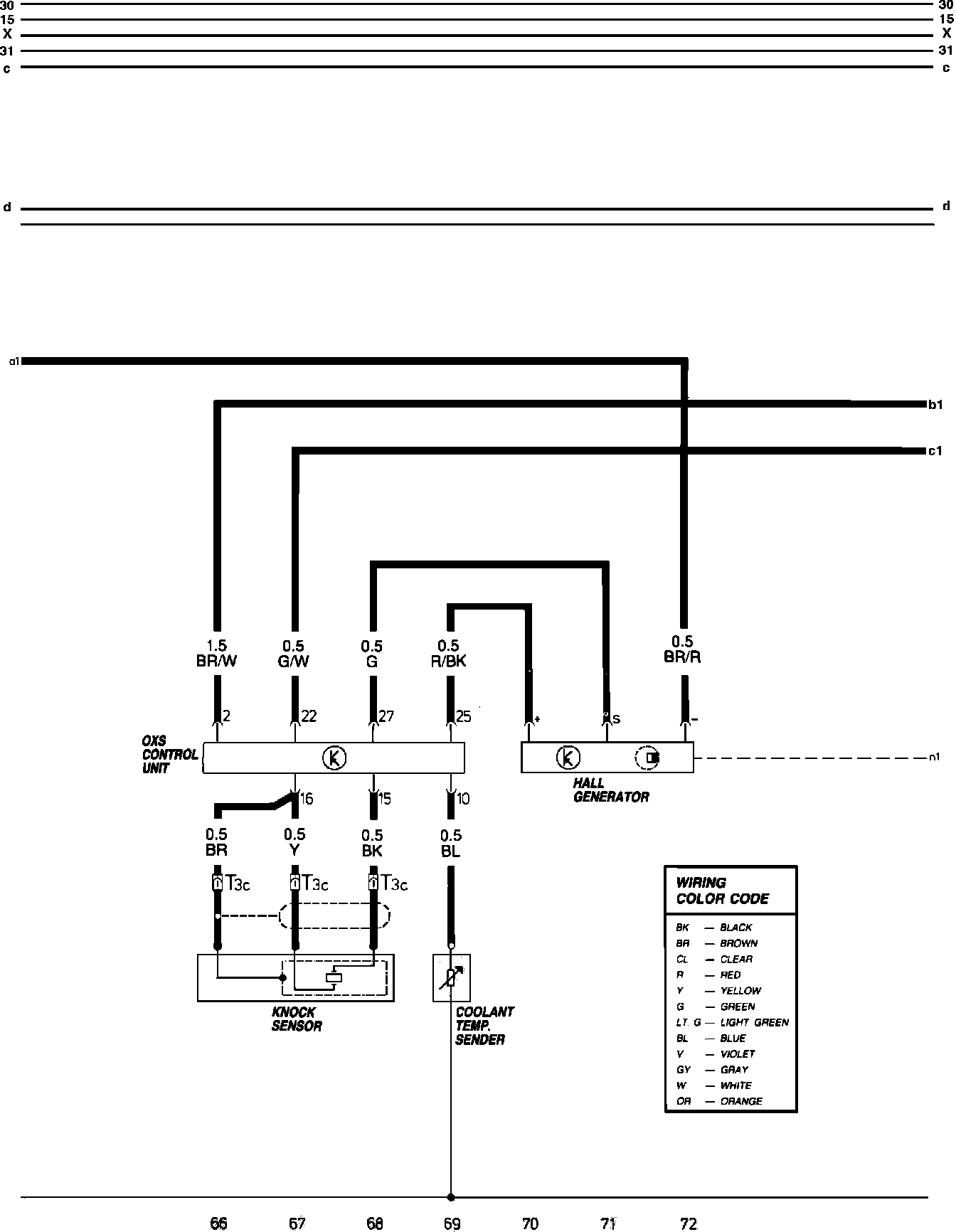

Tracks 66-72:




Fuse/Relay Panel:




Auxiliary Relay Panel:




Additional Relay Panel:





Track Continuations

Previous Diagram Tracks 56-65
Next Diagram Tracks 73-80
