Tracks 382-387

Diagrams By Track Number

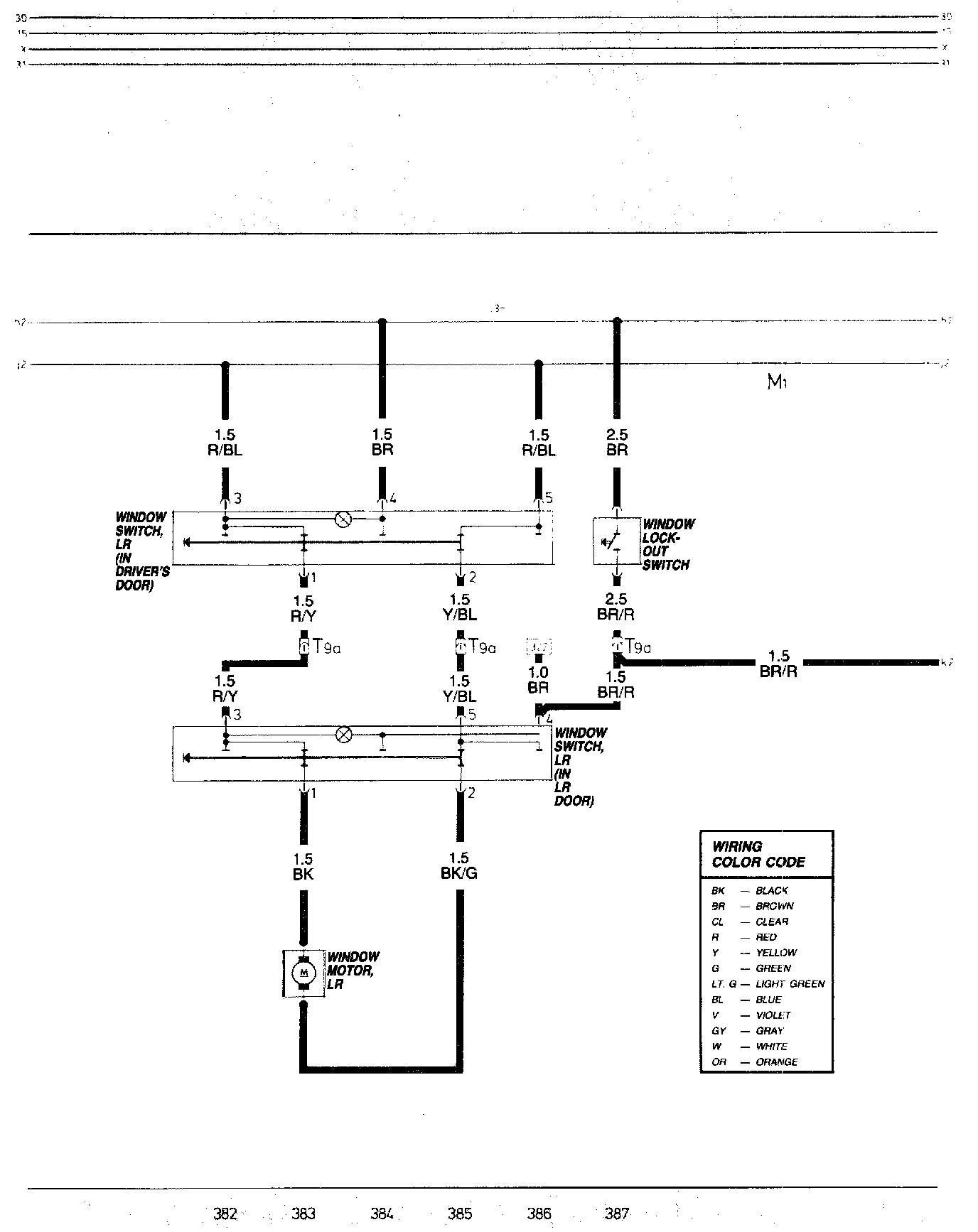

Tracks 382-387:

Fuse/Relay Panel:

Auxiliary Relay Panel:

Additional Relay Panel:

Track Continuations

Previous Diagram Tracks 373-381
Next Diagram Tracks 388-398

To Refer to
322 Tracks 322-326 Tracks 322-326
