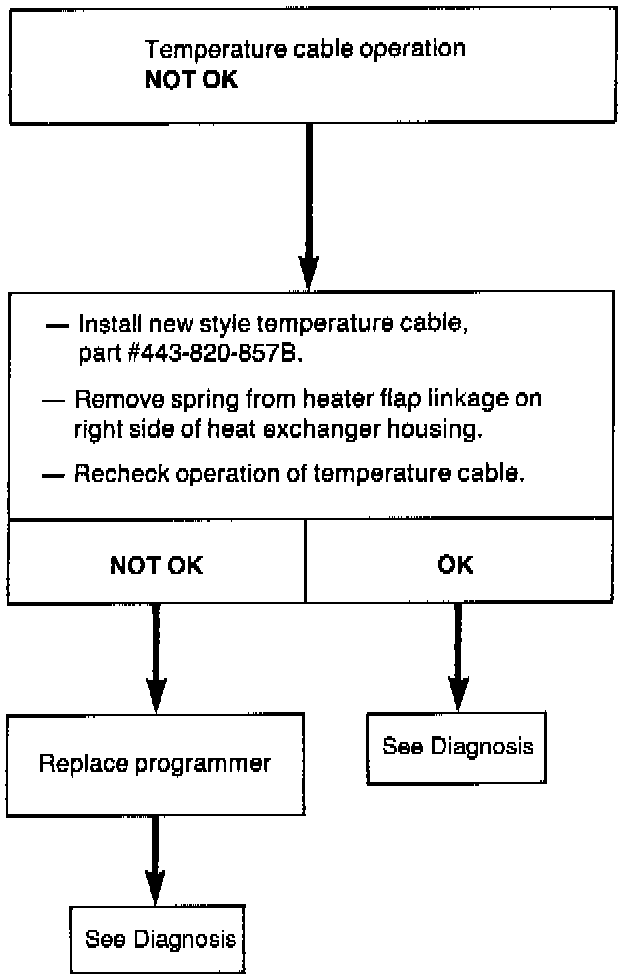

Insufficient Heat at 90 Deg F (32 Deg C) Setting-B
Insufficient Heat at 90 Deg F (32 Deg C) Setting-B
