Service Port HVAC: Locations

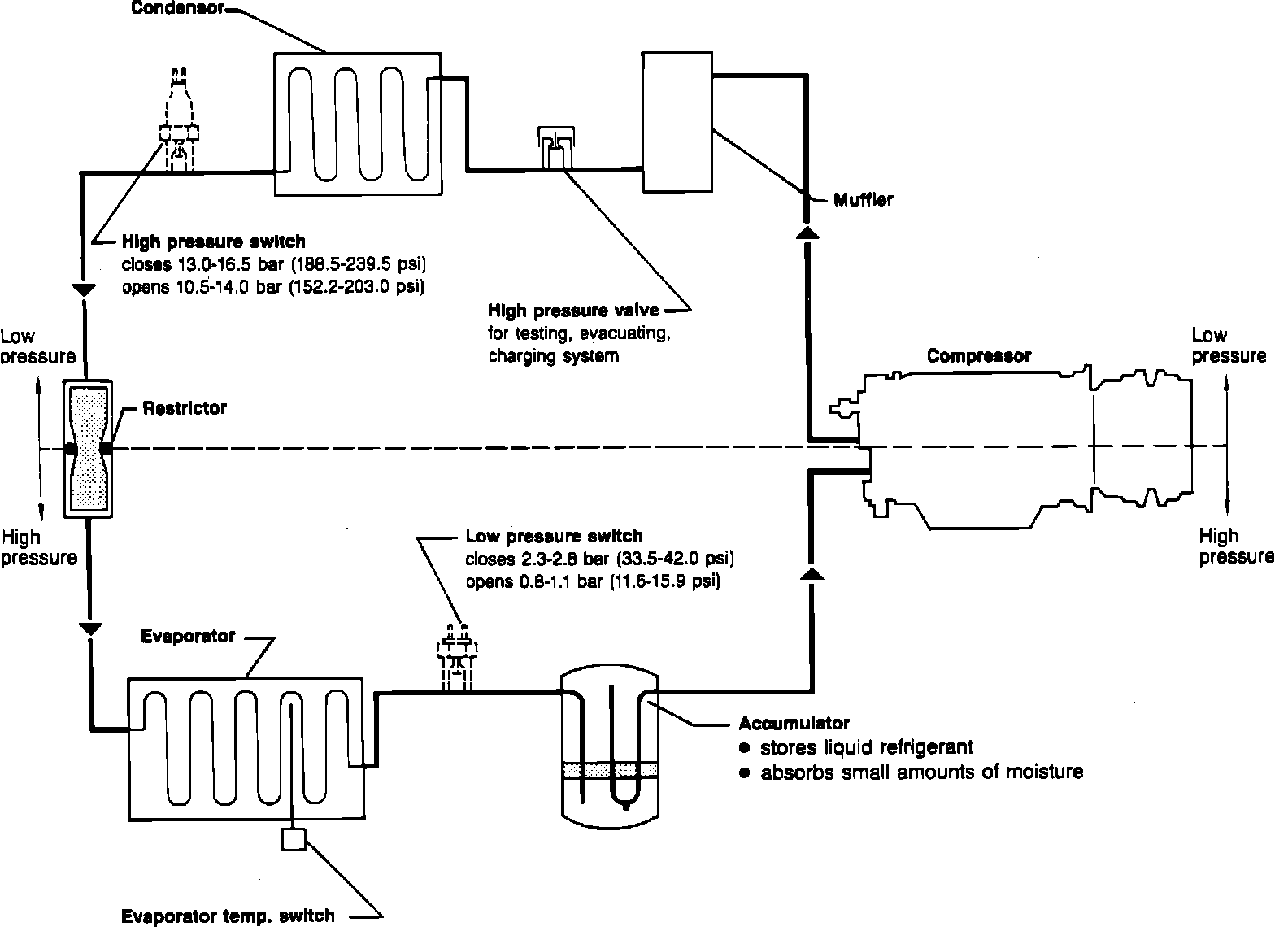

Air Conditioning Components:

HIGH PRESSURE CONNECTOR

In line between muffler and condenser (Right side of engine compartment, by support brace).

LOW PRESSURE CONNECTOR

Beneath radiator cowl between accumulator and evaporator, same as low pressure switch. (Remove low-pressure switch for low-pressure access).

NOTE: There is a schrader valve behind the switch to prevent freon loss.
