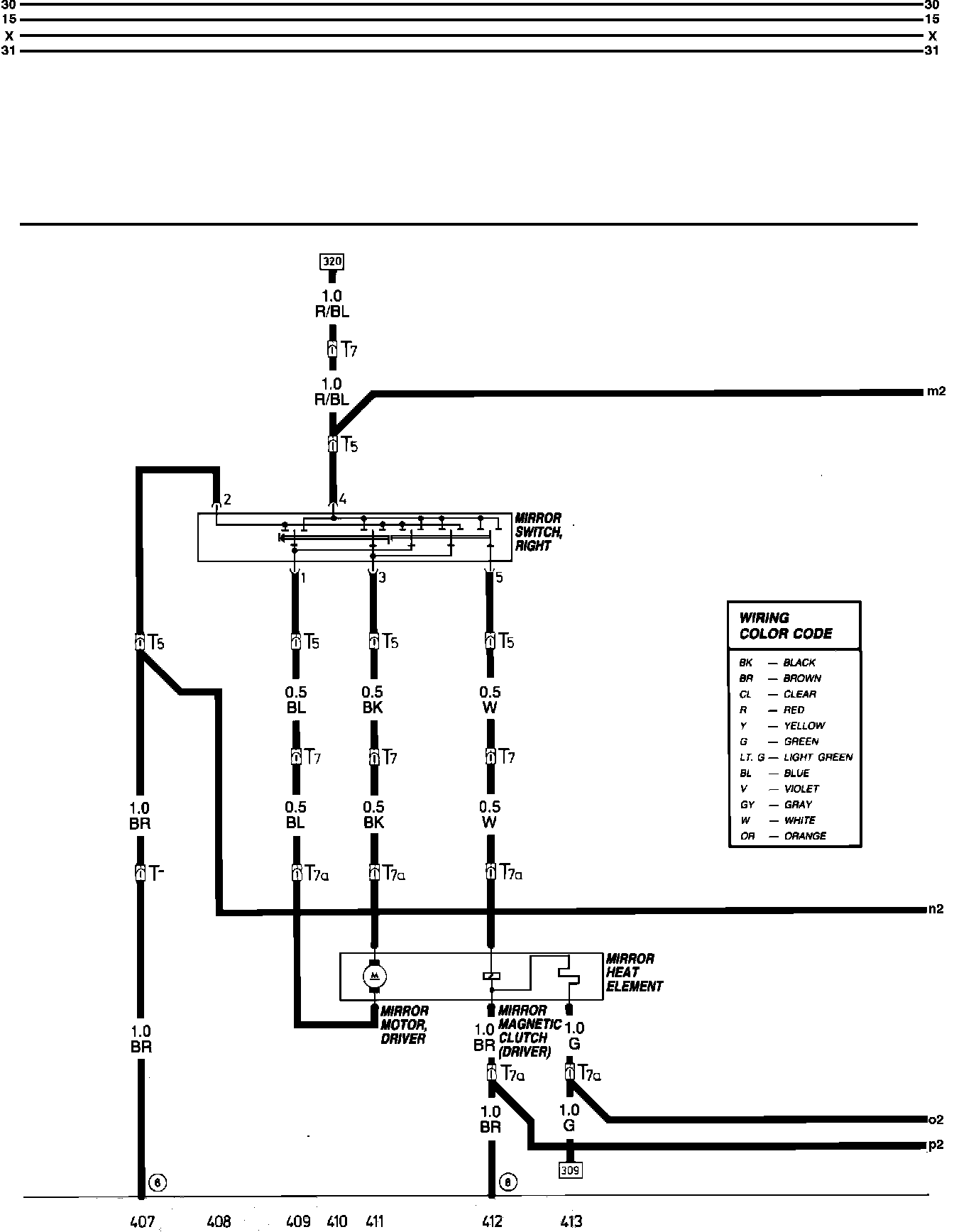

Tracks 407-413

Diagrams By Track Number

Tracks 407-413:

Fuse/Relay Panel:

Auxiliary Relay Panel:

Additional Relay Panel:

Track Continuations

Previous Diagram Tracks 399-406
Next Diagram Tracks 414-420

To Refer to
309 Tracks 308-321 Tracks 308-321
