Sunroof Motor, Removing

Sunroof motor, removing




- remove sunroof trim and sunroof lid from vehicle
- unclip interior light and disconnect electrical connectors

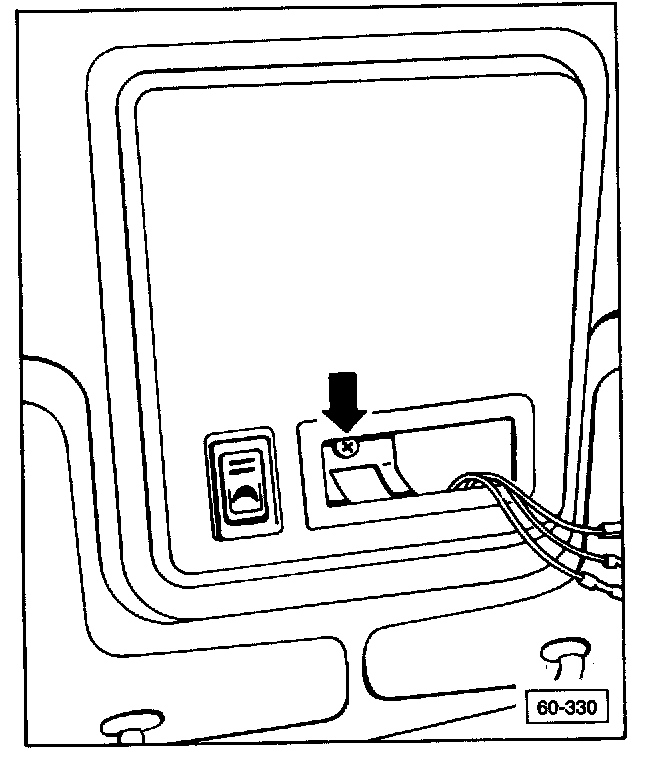

- unscrew cover (arrow) and push forward to remove




- disconnect motor electrical connectors

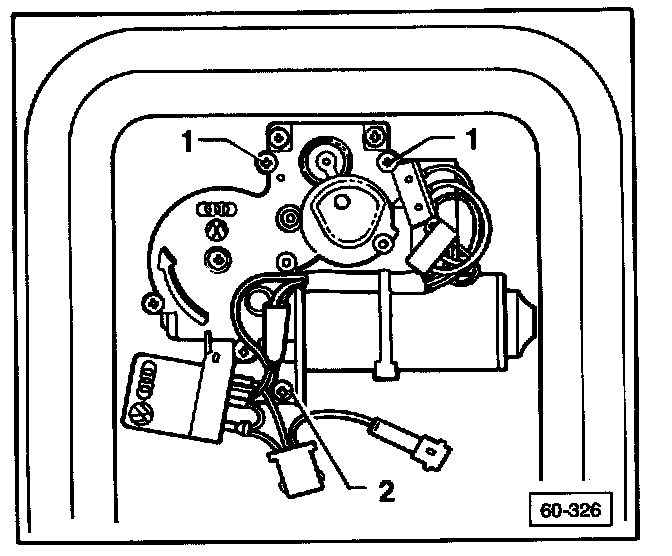

- remove screws (1) and (2) noting position of washer under screw (2) located between motor and roof
- remove motor
