Fuel/Water Separator: Service and Repair

CAUTION: When working on fuel system, always follow precautions on cleanliness below

- thoroughly clean all unions and area near connections before disconnecting
- place removed parts on a clean surface and cover over. Use paper or plastic sheet. Do not use fluffy cloths
- components which have been opened or disassembled must be covered or sealed carefully if repair cannot be carried out immediately
- install clean components only
- only unpack replacement parts immediately before they are installed
- do not use parts that have been stored loose (for instance, in toolboxes)
- when fuel system is open, do not work with compressed air if this can be avoided or move car unless absolutely necessary

WORK SEQUENCE

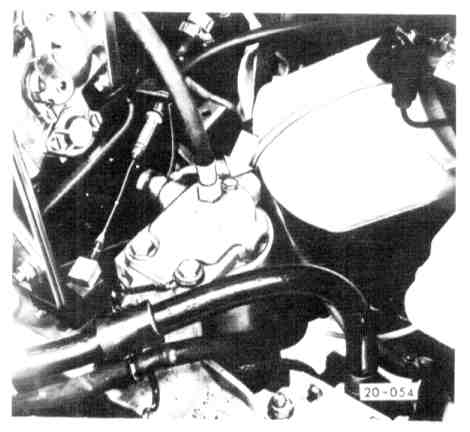

- loosen vent screw (arrow) on filter cover





- open water drain screw (arrow) and let fluid run until pure fuel appears
- tighten water drain screw and vent screw
- check fuel system for leaks
