Idle and Maximum RPM

REQUIREMENTS
- oil temperature minimum 60°C (140°F)
- all electrical consumers switched OFF

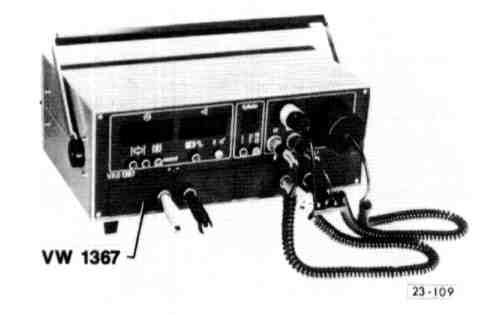

- RPM can be measured using ignition tester VW 1367 via the TDC sensor

NOTE: No load on engine.

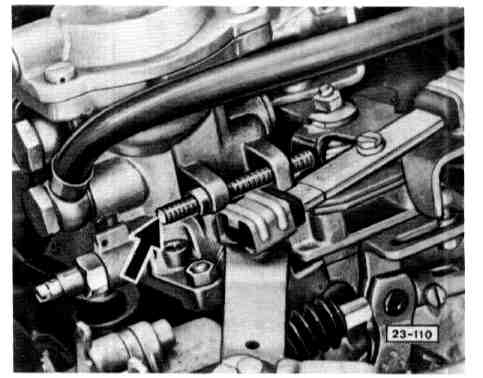

- adjust idle speed on idle set screw (arrow) to 750 ± 50 RPM
- lock set screw





MAXIMUM RPM, (UNLOADED)
- press accelerator fully and adjust RPM via set screw (arrow)
- specification: 5100 ± 50
- lock set screw
