Home >> Audi >> 1984 >> 5000S Turbo Diesel Wagon (Can) L5-1986cc 2.0L DSL SOHC Turbo (DE) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Engine Lubrication >> Locations

Engine Lubrication: Locations

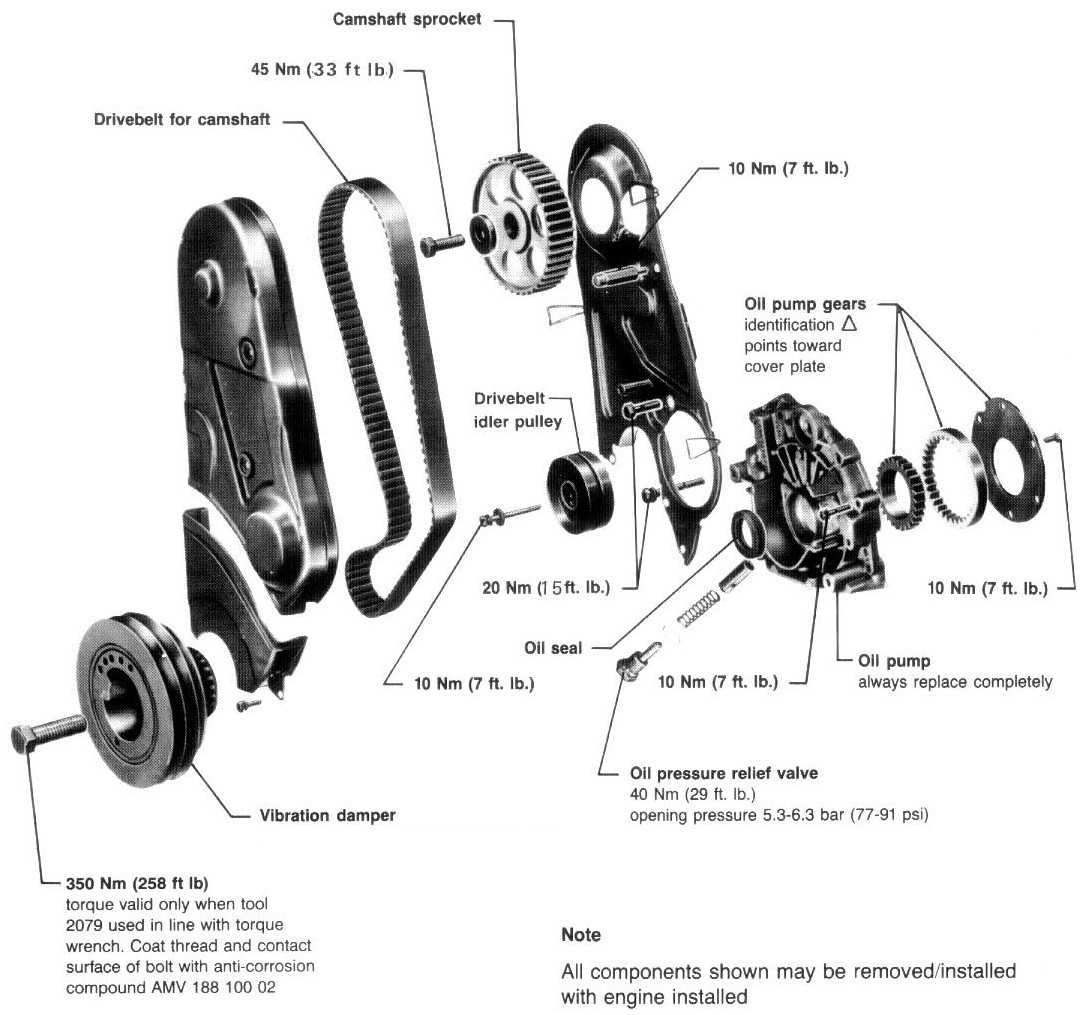

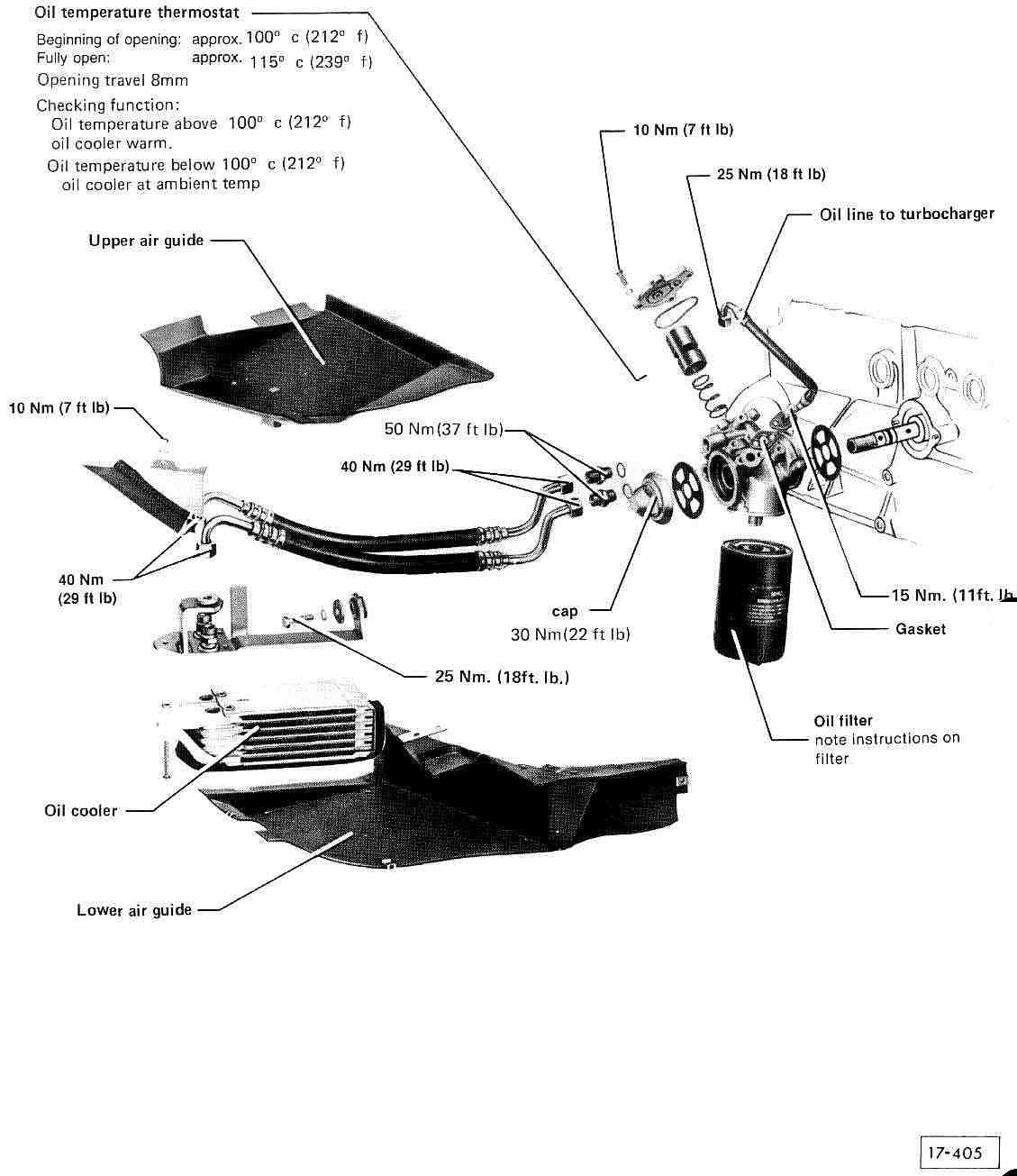

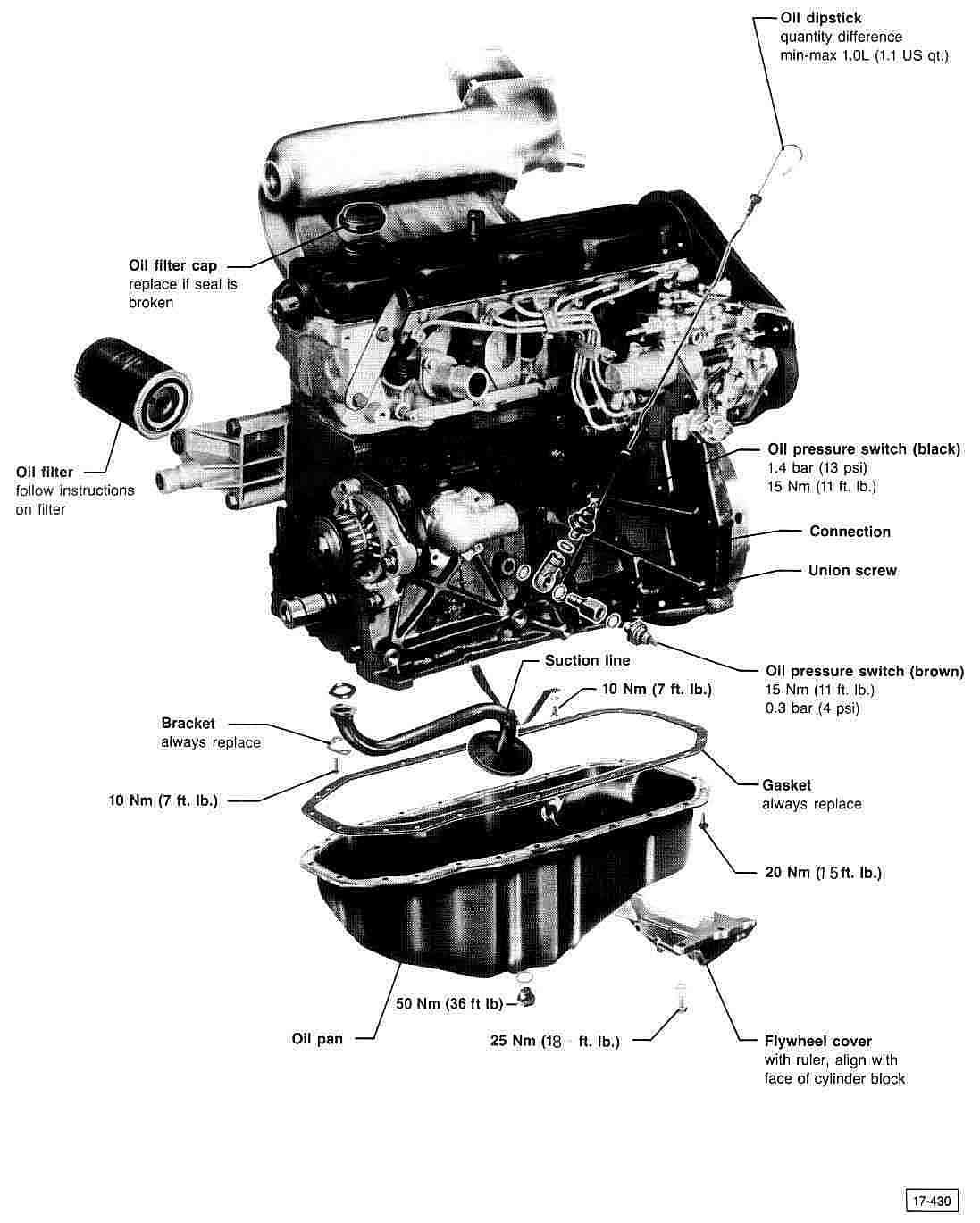

Diesel Lubrication System

I Of III:





II Of III:
