Oxygen Sensor Relay: Locations

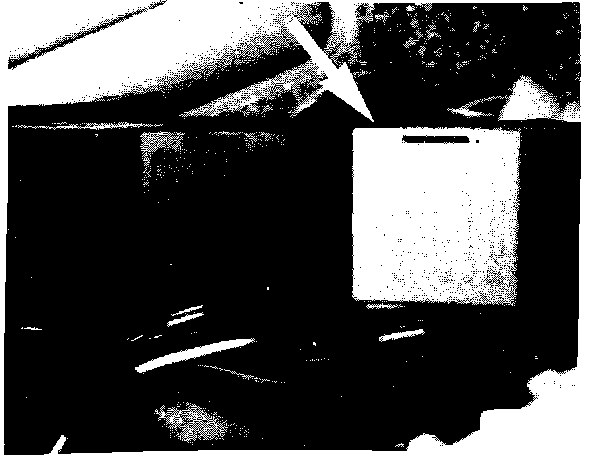

Oxygen Sensor Relay.:




Near LH Kick Panel

Applicable to: 1981-83 5000
