Injection Pump Center Plug - New Tightening Torque
83audi01Applies To
AUDI
All years
Group
23
Subject:
Diesel Injection Pump
Part Identifier 2329
Key Points
New tightening torque: Injection pump center plug
C
Number
83-03
July 22, 1983

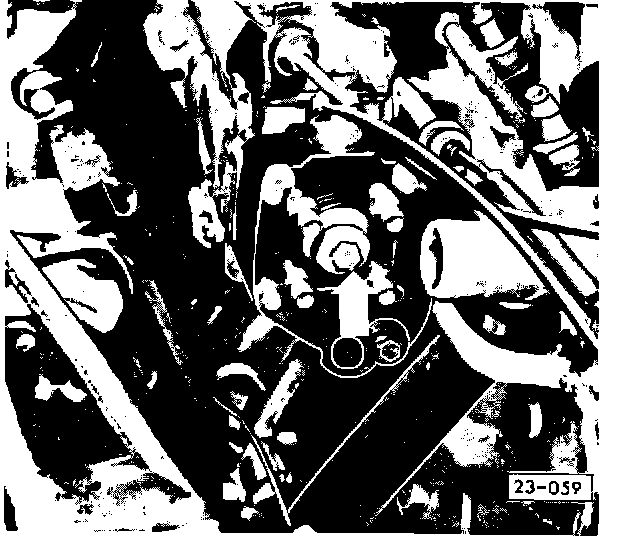

Tightening torque of the diesel injection pump center plug (arrow) is:
^ 17 +/- 3 N-m (12 +/- 2 ft.lb.) with copper seal (reddishbrown in color)
^ 22 +/- 2 N-m (16 +/- 2 ft.lb.) with bronze seal (yellowbrown in color)
CAUTION To avoid fuel leaks always replace seal for center plug.
