Wheel Alignment - Data for Front and Rear Axles
84audi1Applies To
5000 S
5000 S TURBO from 1983
Group 44
Subject
Wheel Alignment
Part Identifier
Key Points
Wheel alignment data
A73
Number
84-02
June 1, 1984

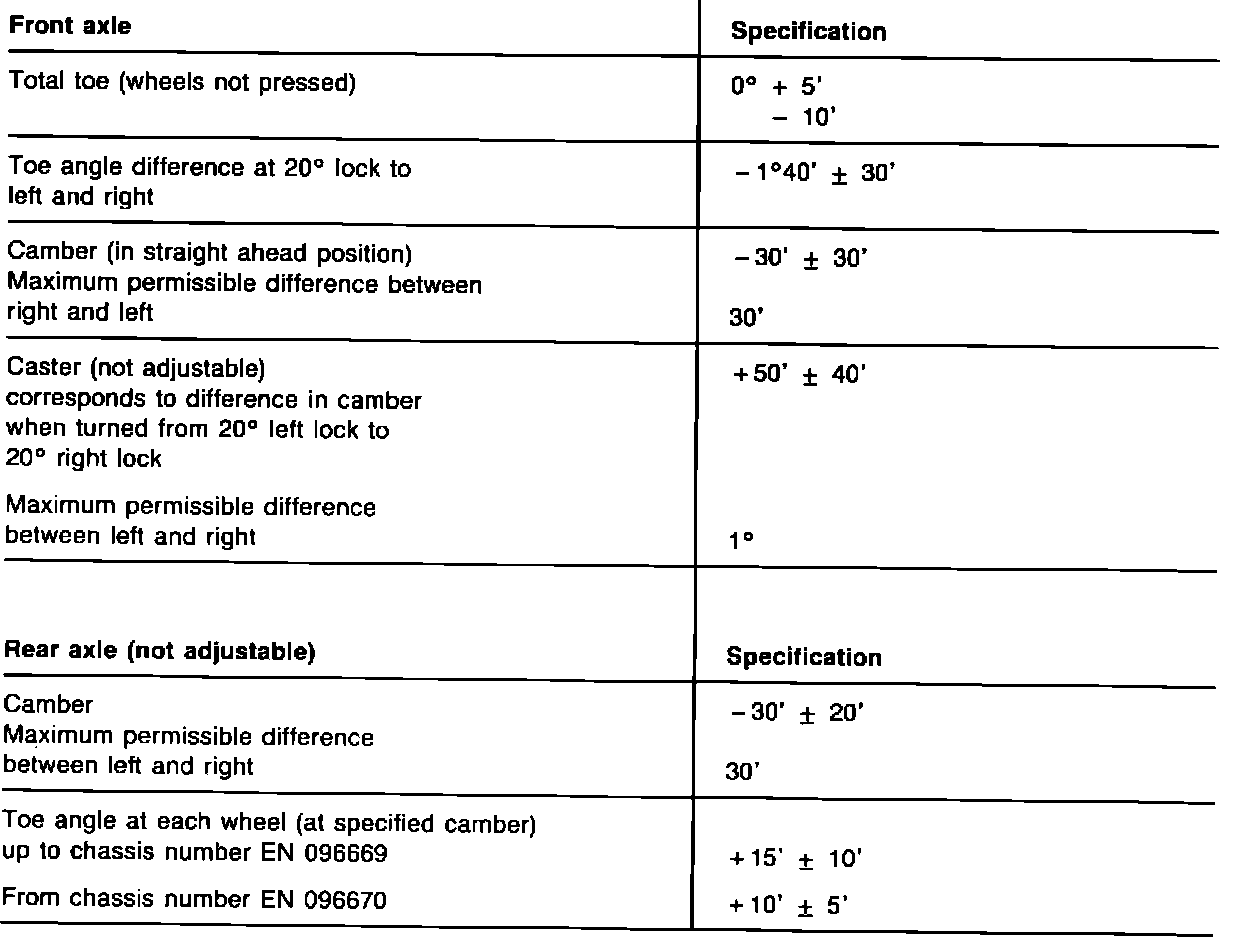

Wheel Alignment Data for Front and Rear Axles
Note
Wheel alignment should not be checked until vehicle has been driven 1000-2000 Km (600-1200 mi) and coil springs have settled.
Check the following before measuring wheel alignment:
^ vehicle empty
^ tire pressure correct
^ test surface level and horizontal
^ steering linkage free of play
^ steering gear properly adjusted
^ vehicle bounced properly
Note
This information supercedes alignment specifications in The New Audi 5000, Maintenance and Adjustments, booklet WSP - 521 - 116 - 00, pg. 36
