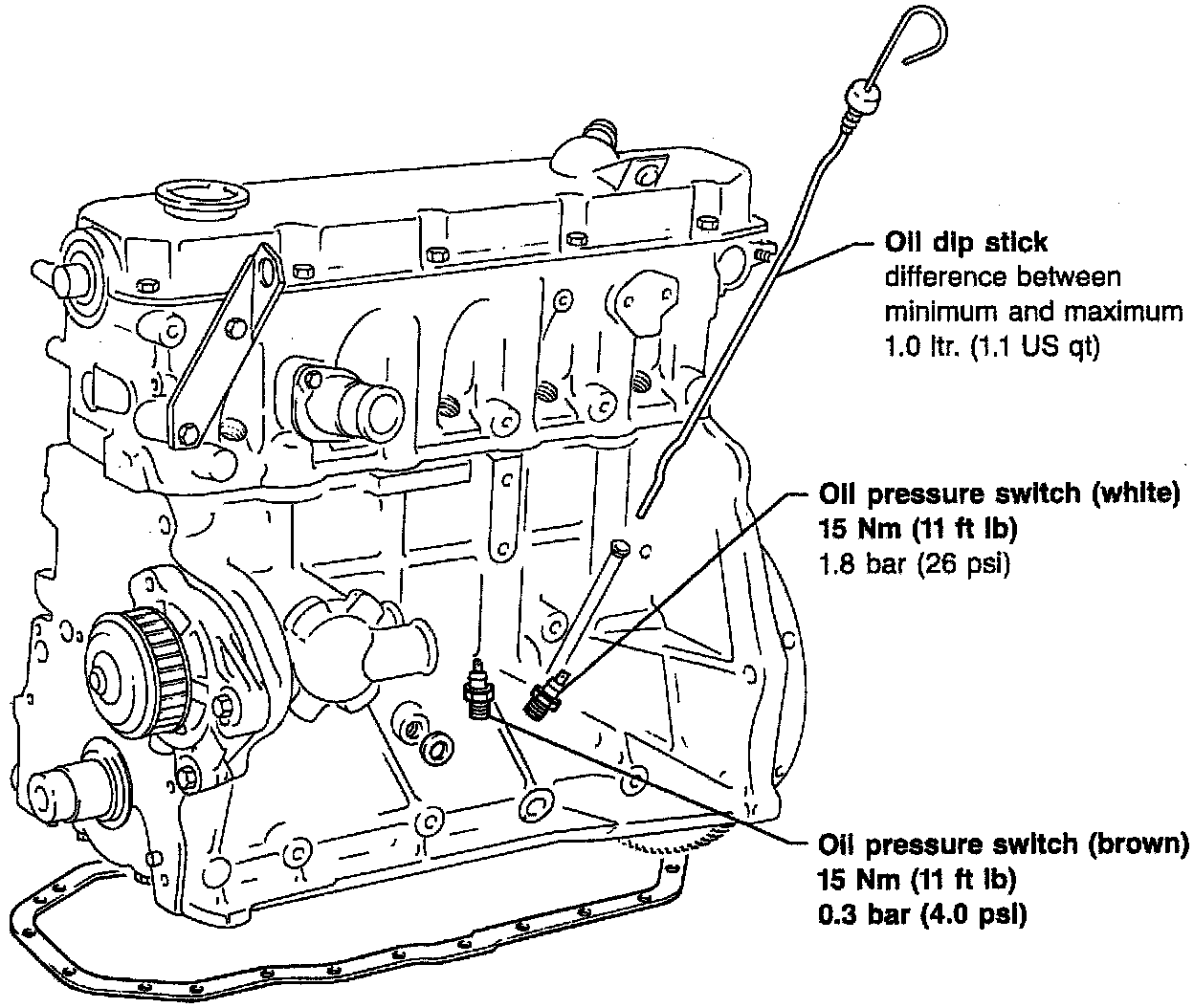

Oil Pressure Sender: Locations

Oil Pressure Switch.:




In Engine Compartment

Applicable to: 1981-83 5000
