Hydraulic Brake Booster: Testing and Inspection

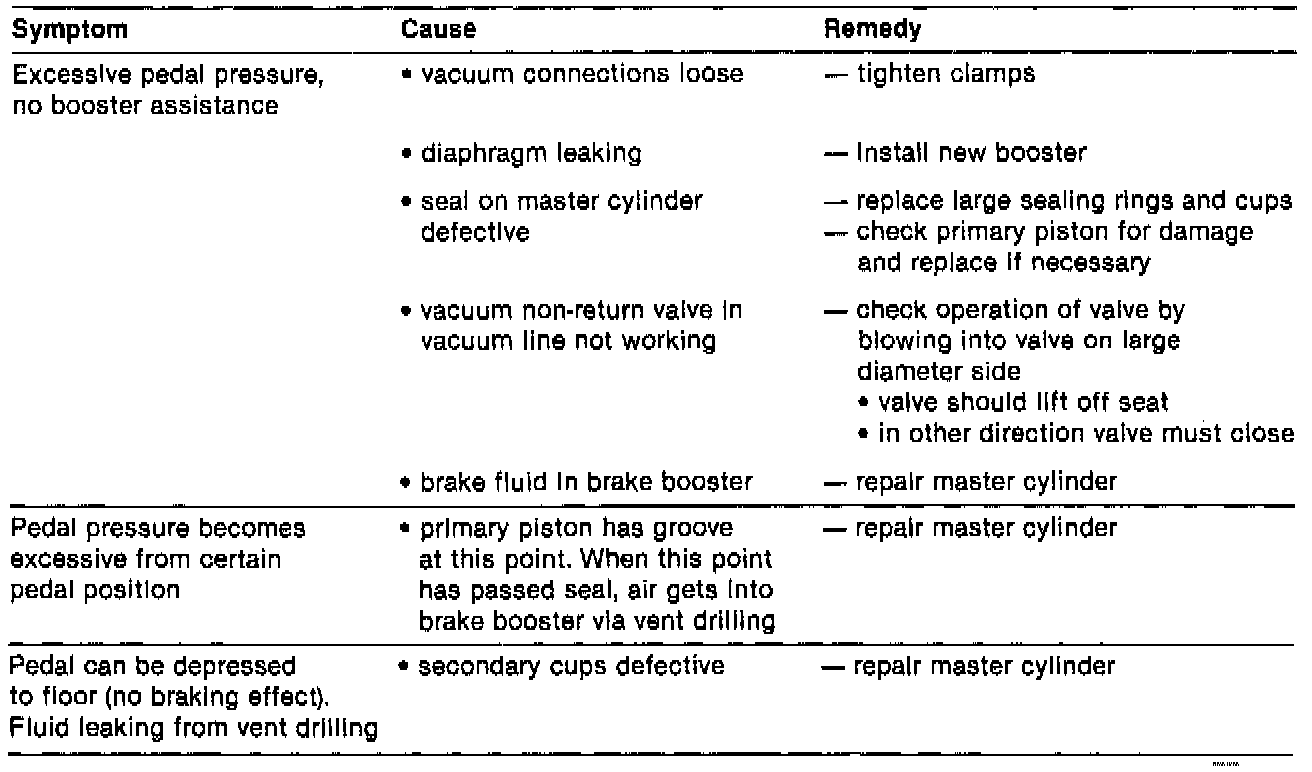

Brake Booster/Master Cylinder Troubleshoot Chart, 1 Of 1:
