Home >> Audi >> 1983 >> 5000 Turbo L5-2144cc 2.14L SOHC Turbo (WK) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Powertrain Management >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Diagrams >> Diagram Information and Instructions >> Diagrams By Track Number >> Non-Turbo >> Track 141 Thru 155

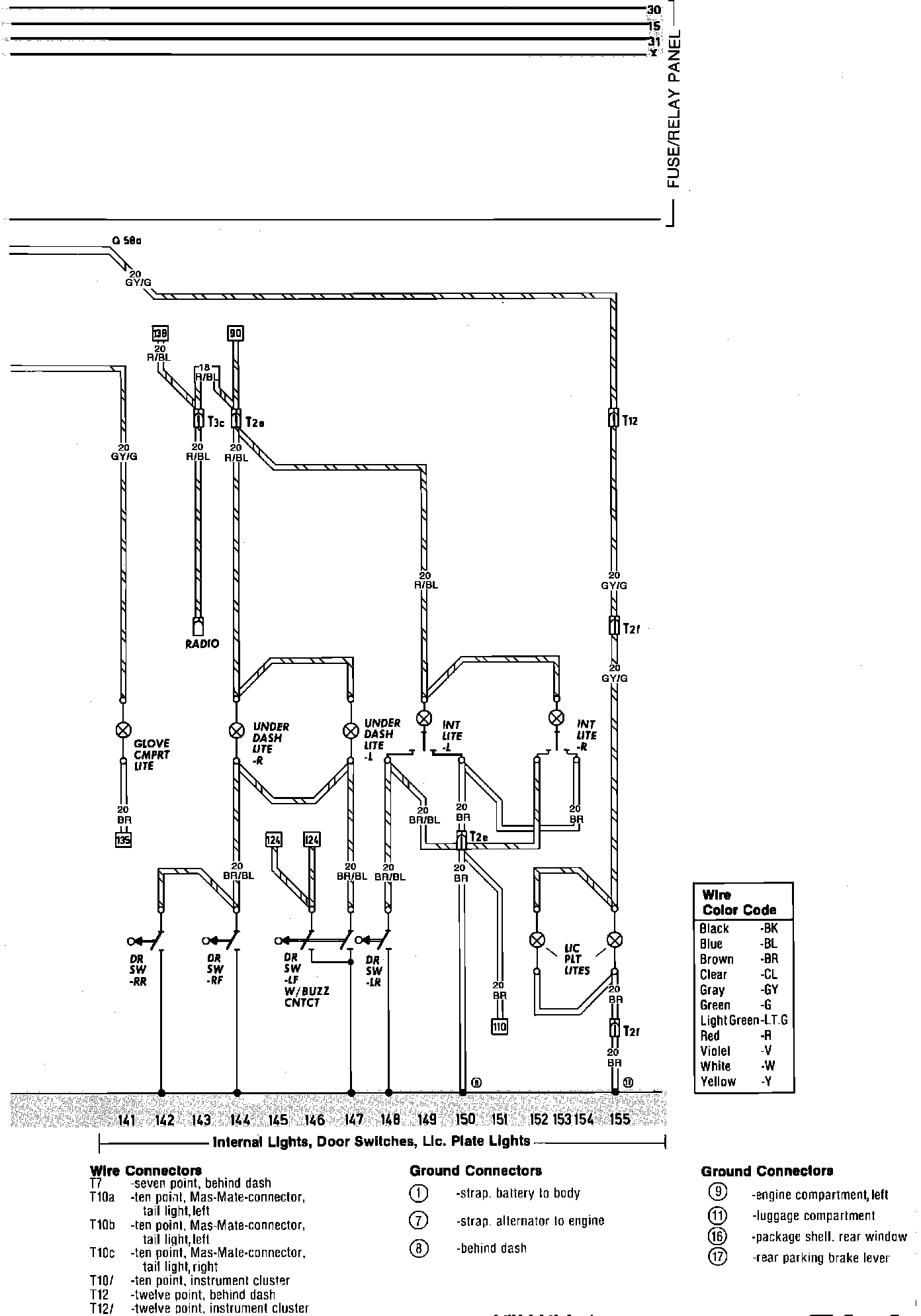

Track 141 Thru 155

Internal Lights, Door Switches and License Plate Lights:
