Oxygen Sensor Wiring

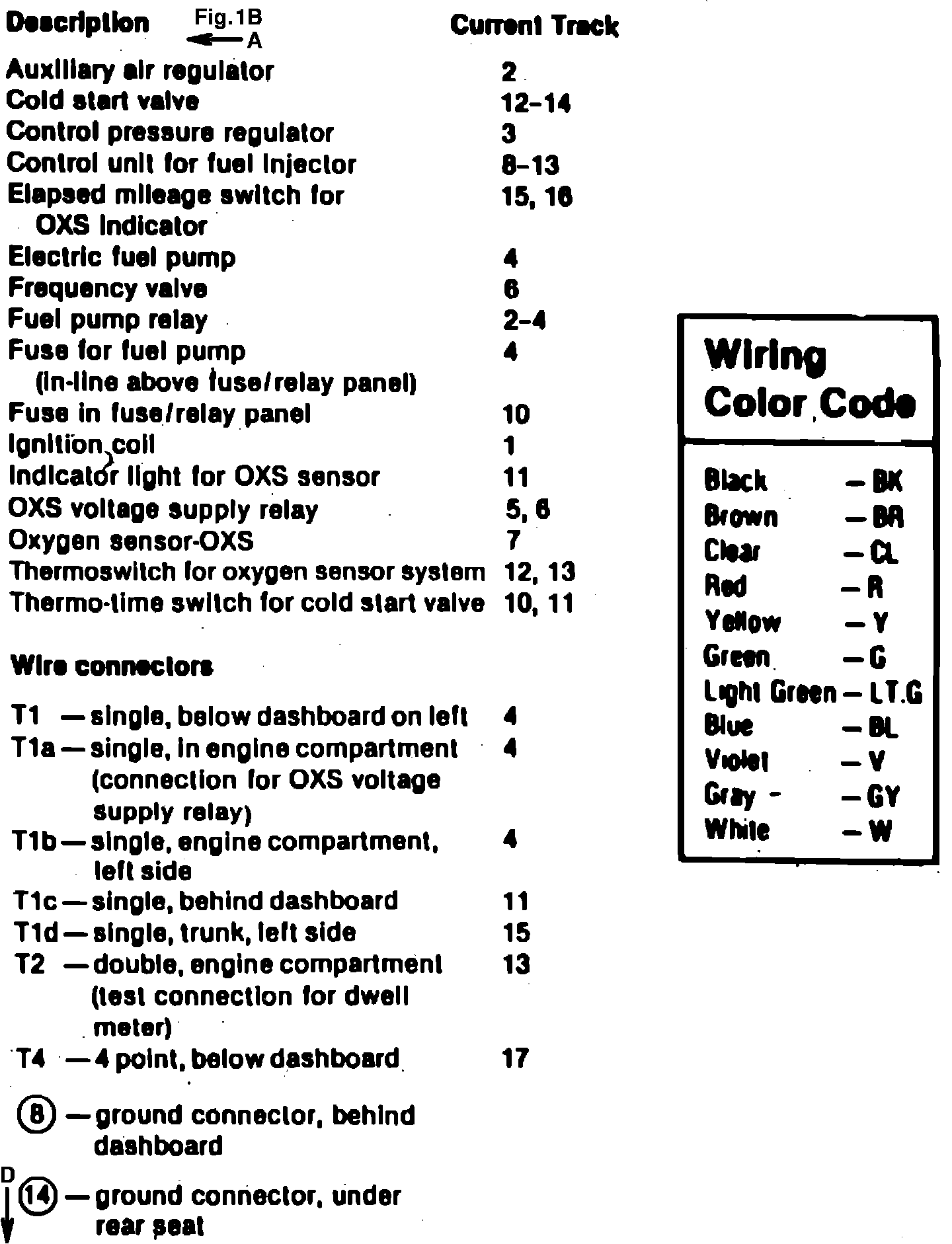

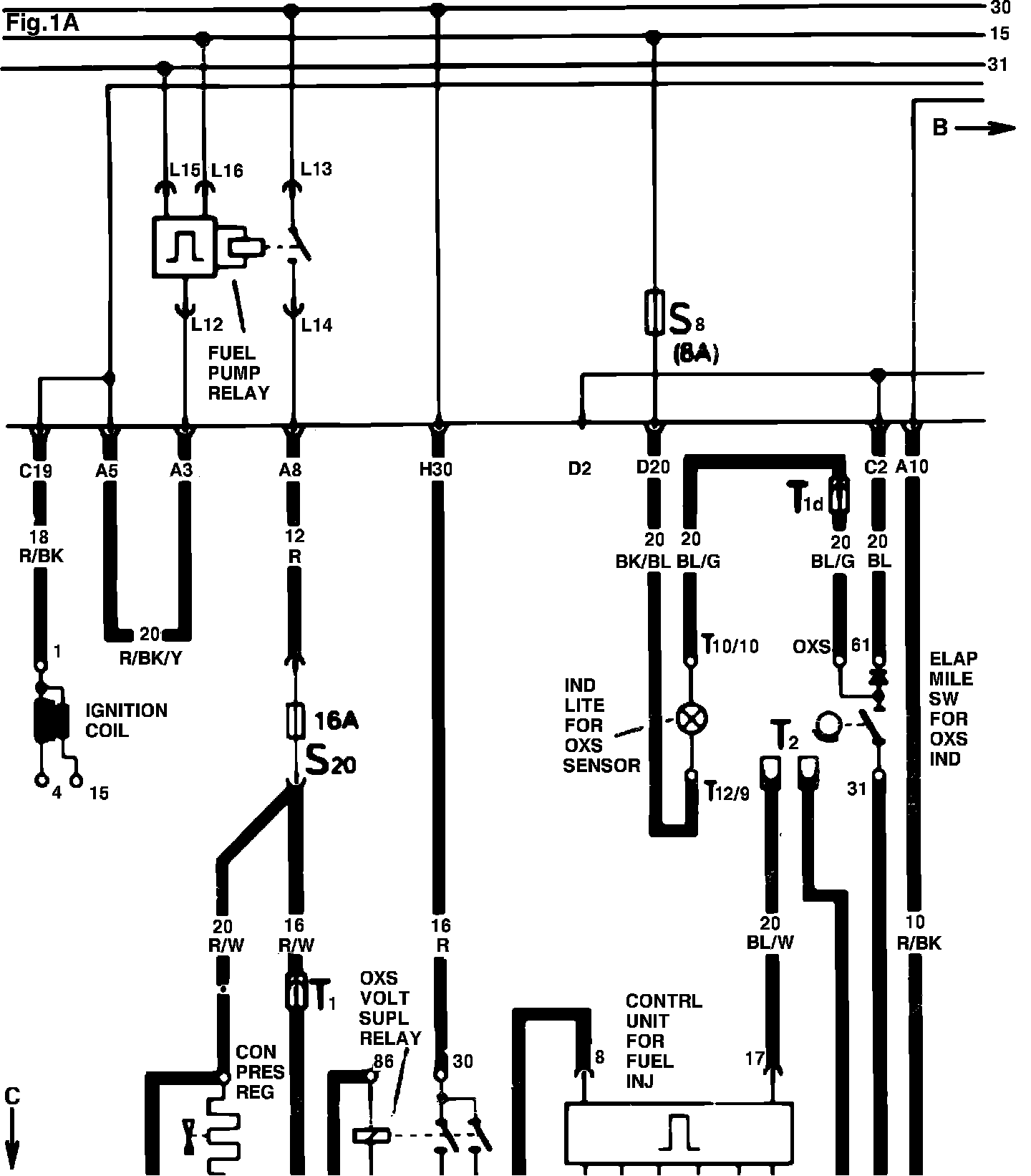

Fig. 1 Oxygen sensor wiring diagram(a).:



Fig. 1 Oxygen sensor wiring diagram(b):

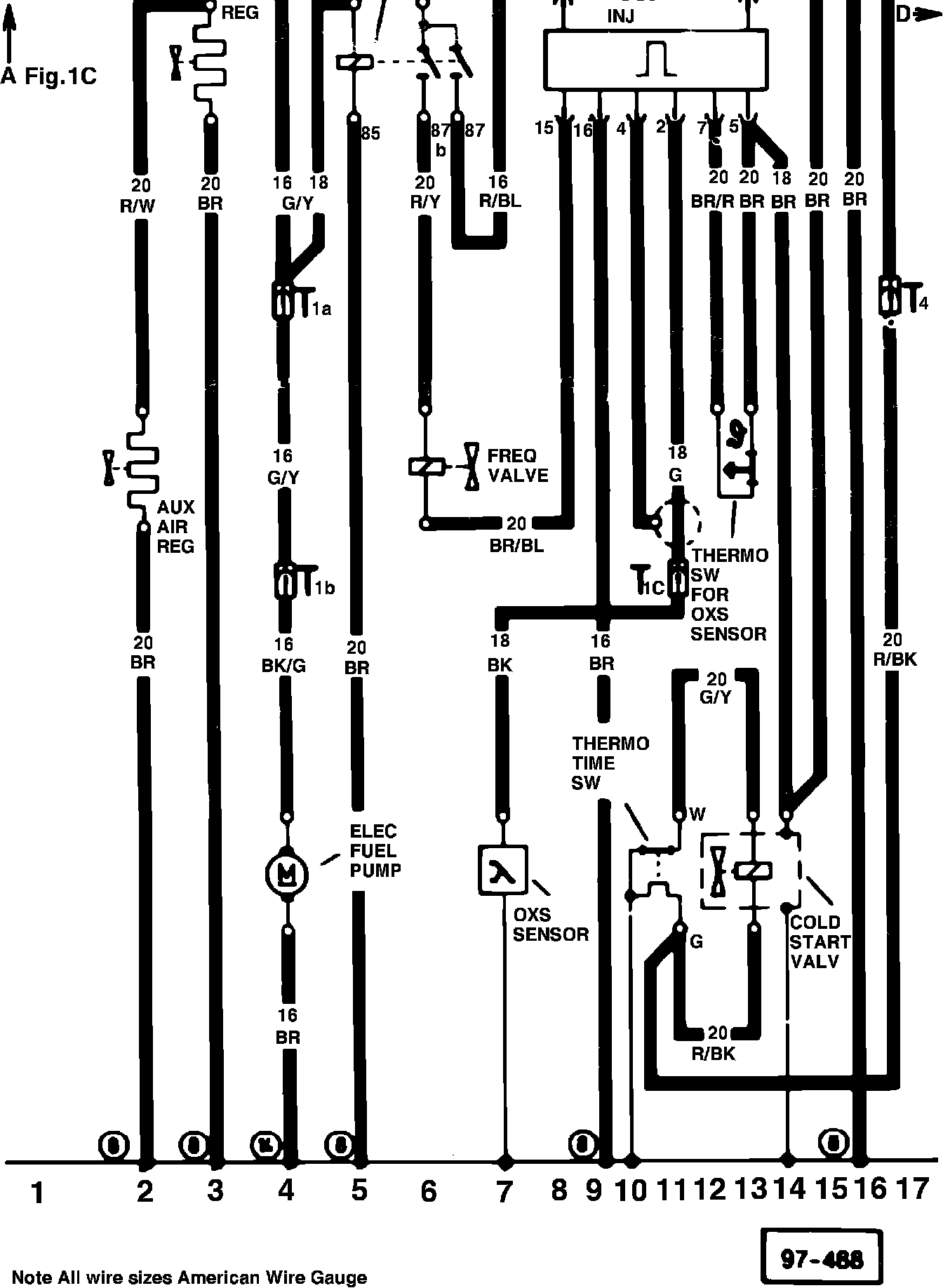

Fig. 1 Oxygen sensor wiring diagram(c).:
