Fuse: Locations



Fuse Locations

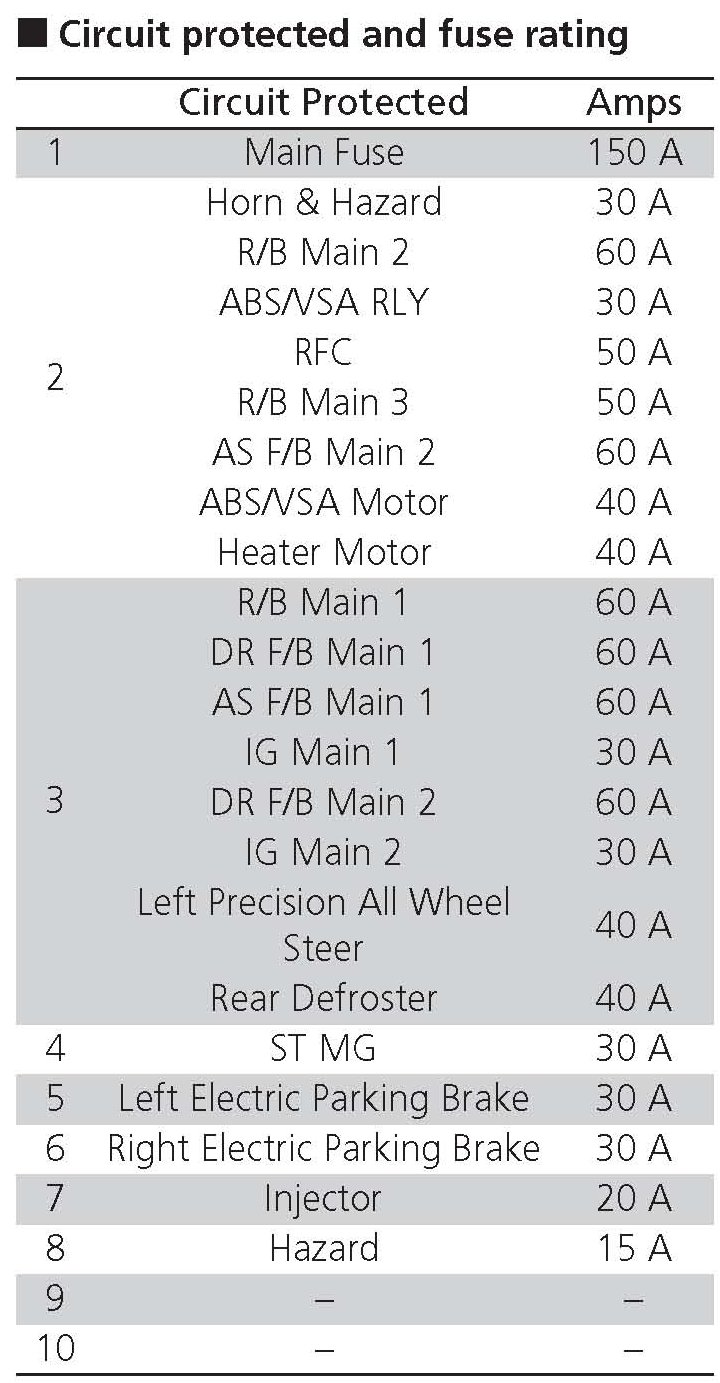

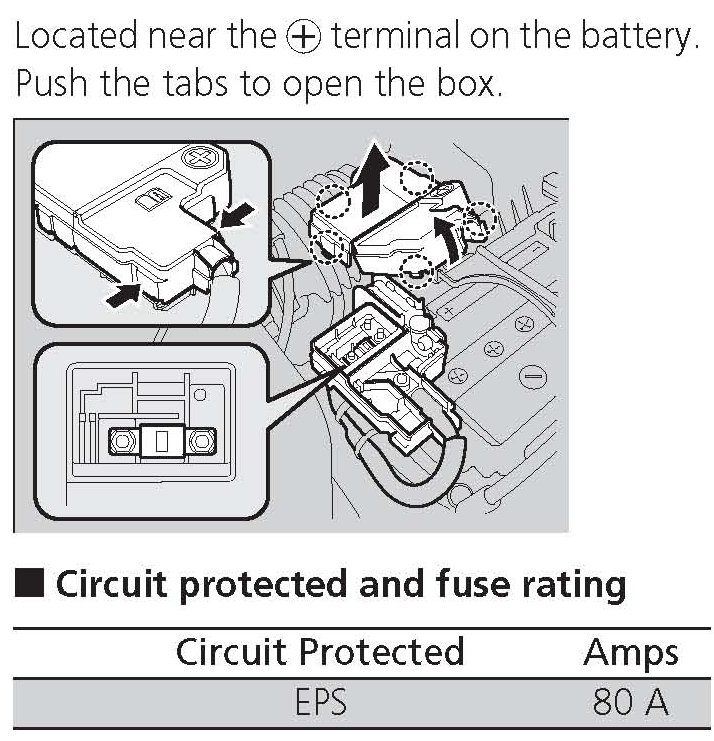

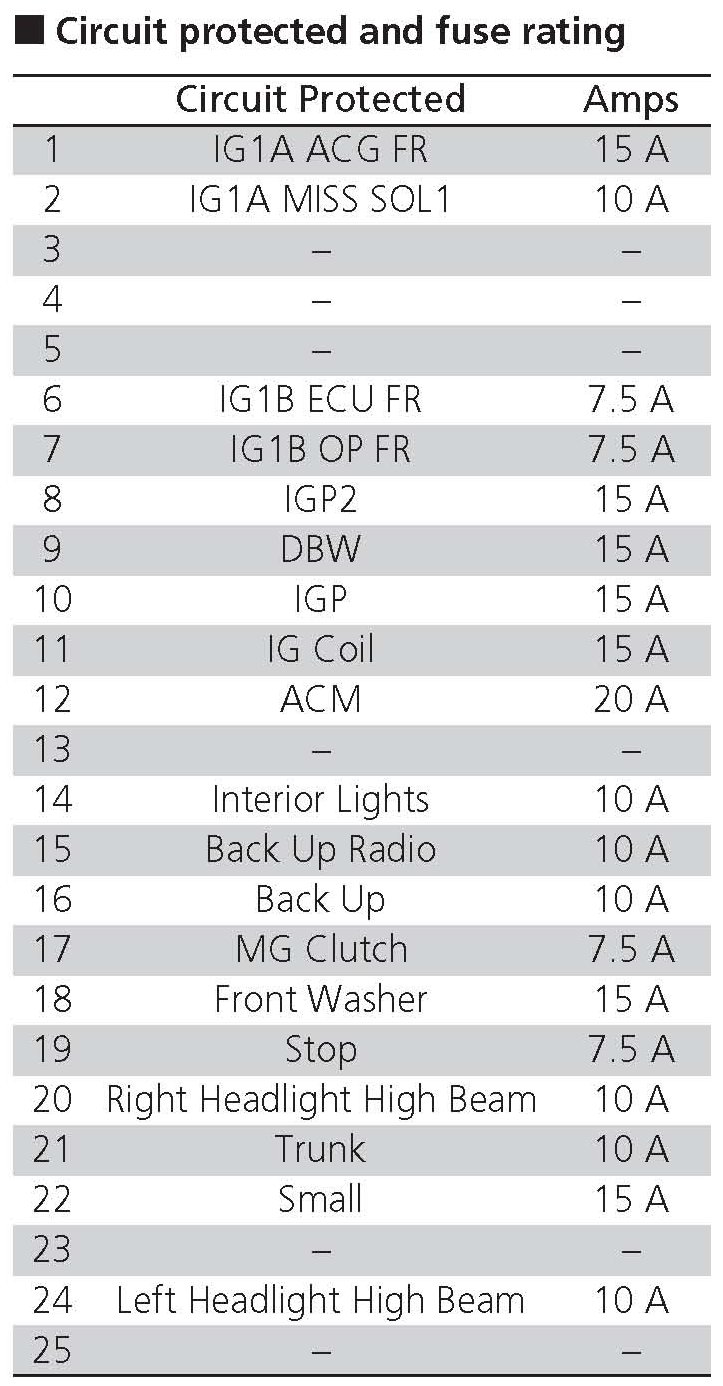

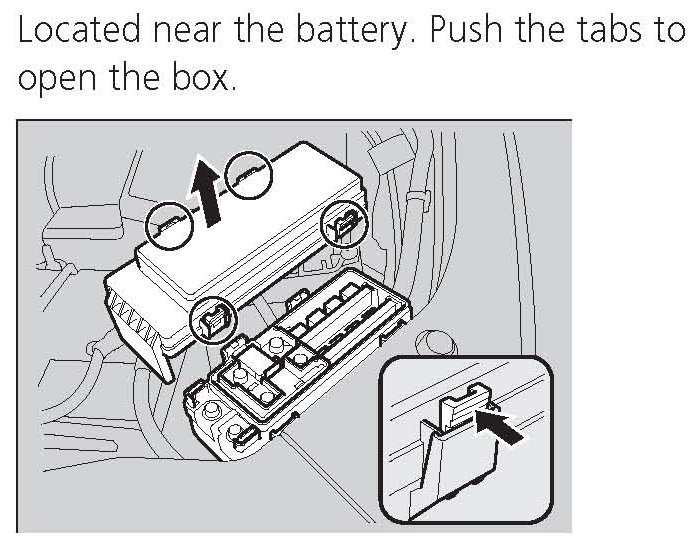

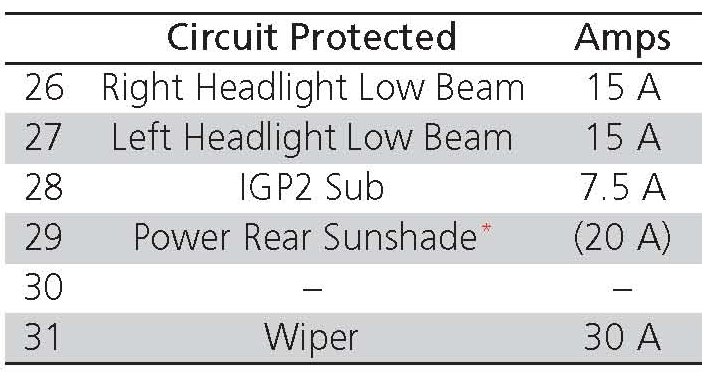

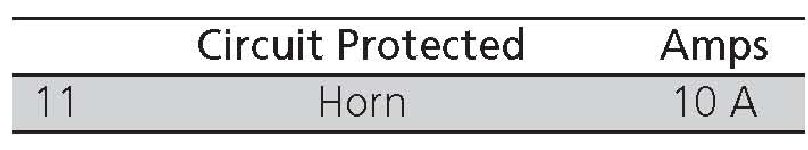

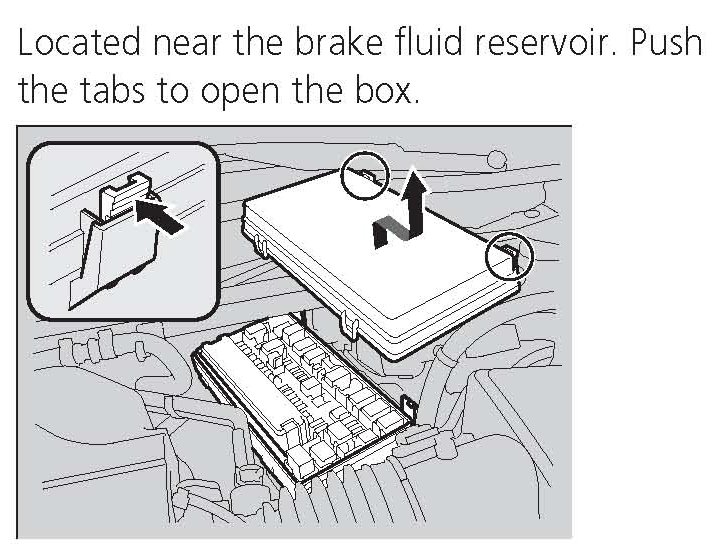

Engine Compartment Fuse Boxes

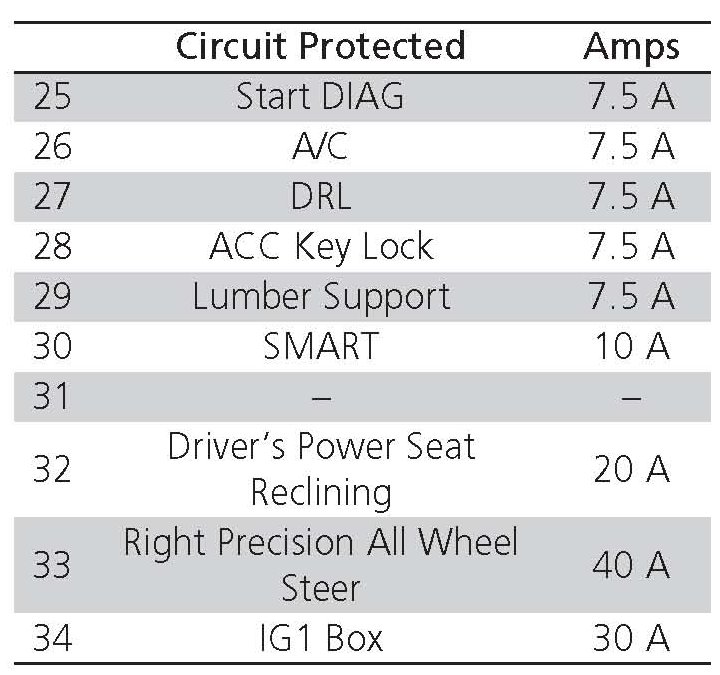

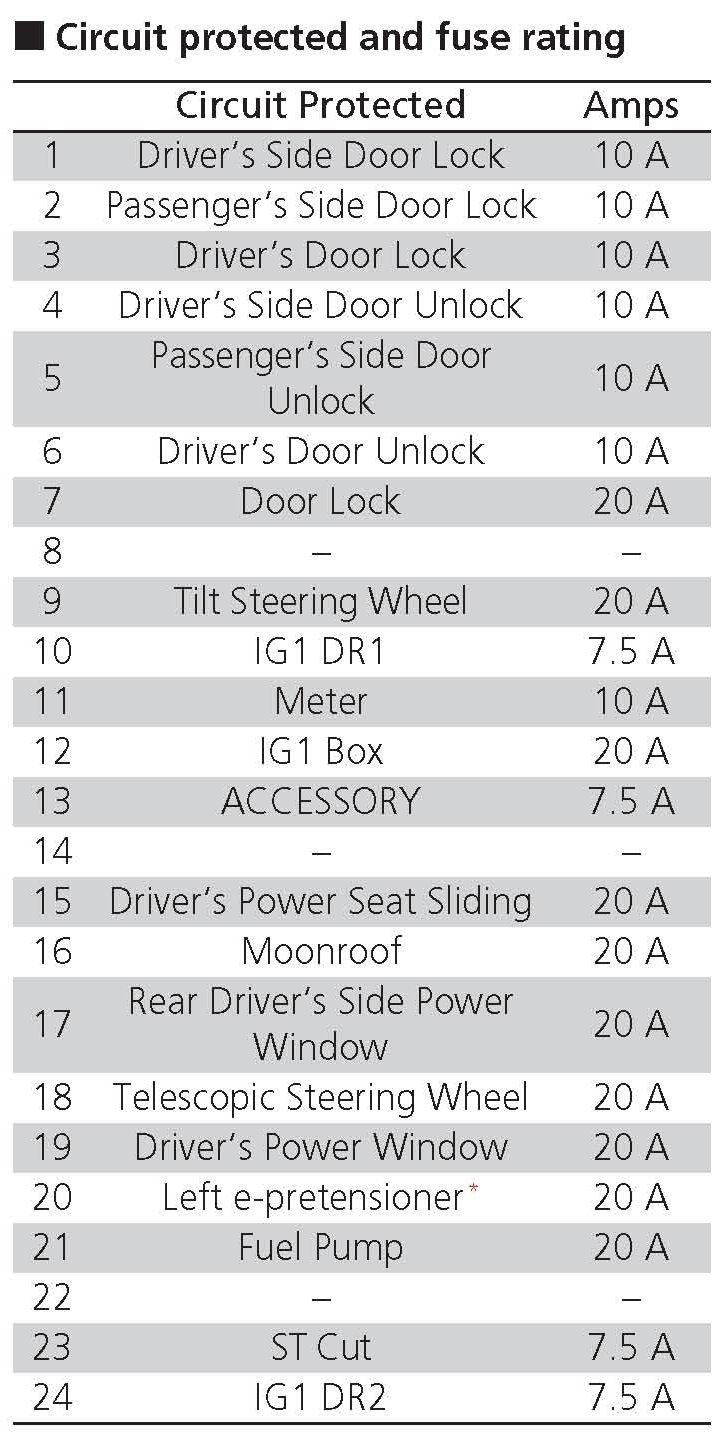

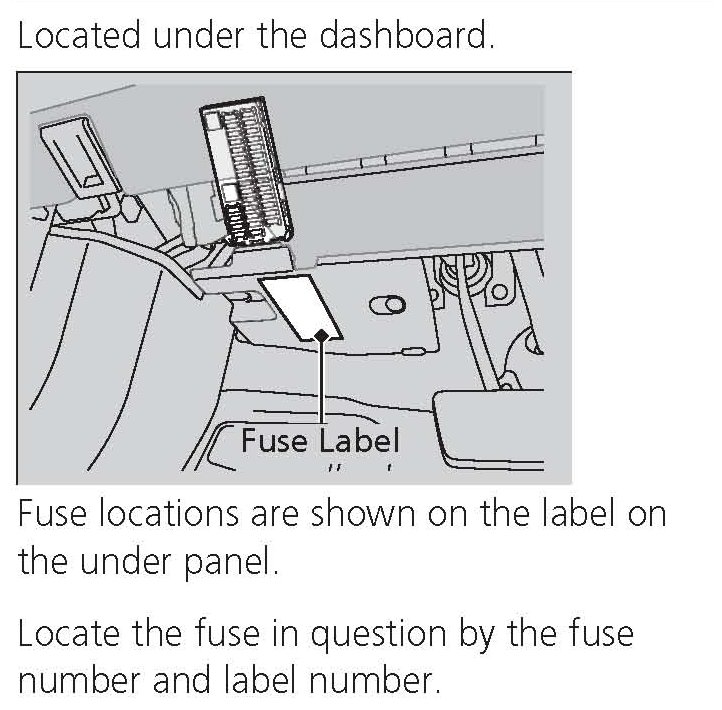

Driver's Side Interior Fuse Box

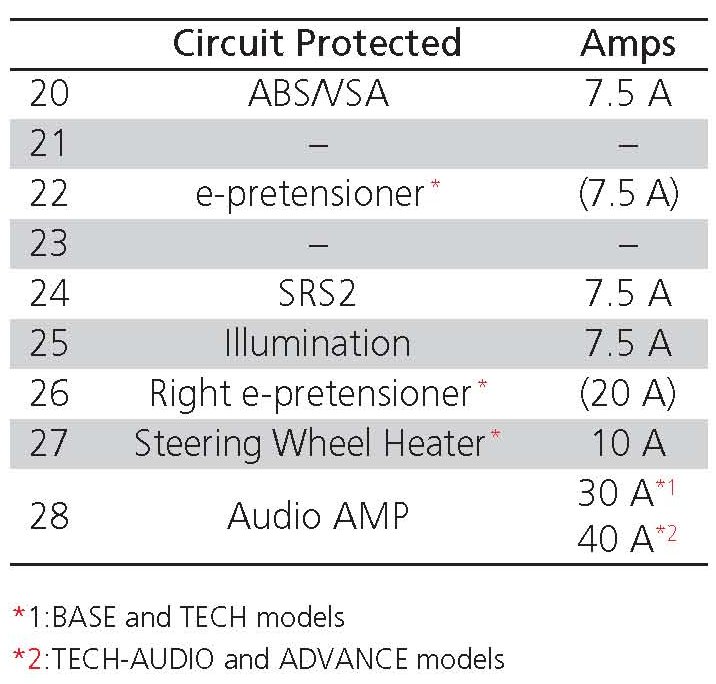

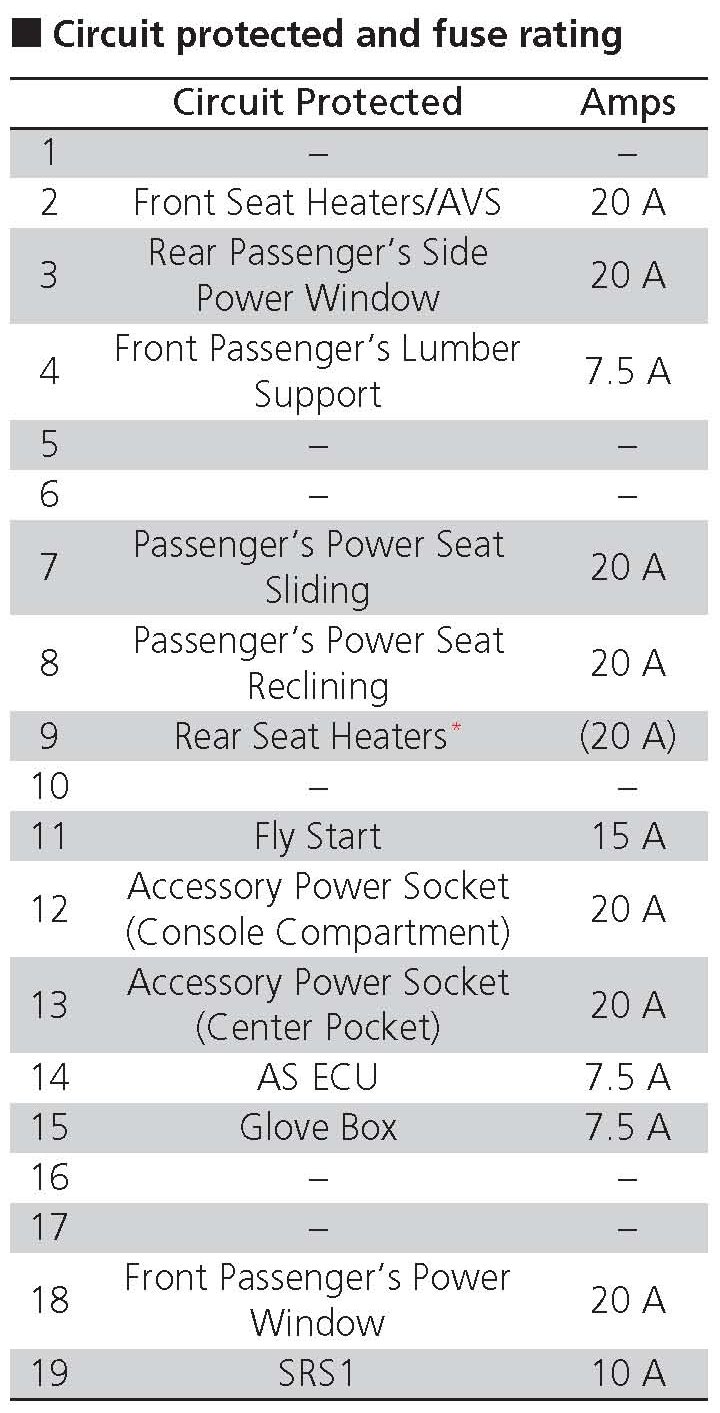

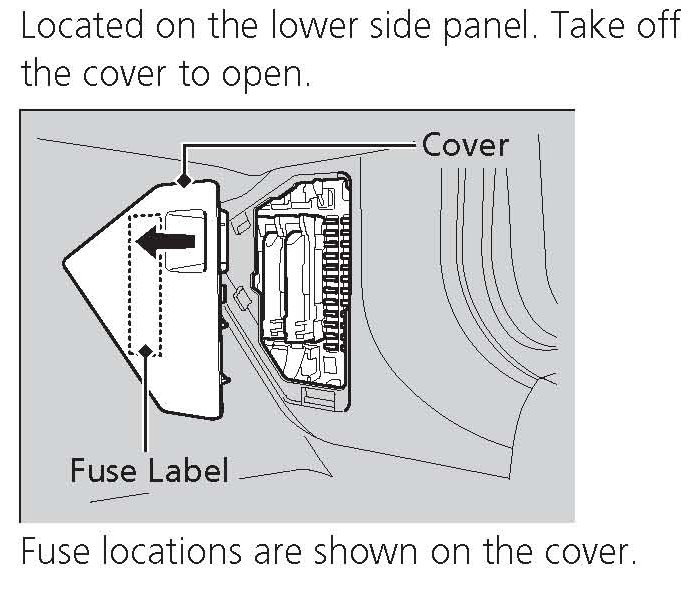

Passenger Side Interior Fuse Box
