Paint: Application and ID

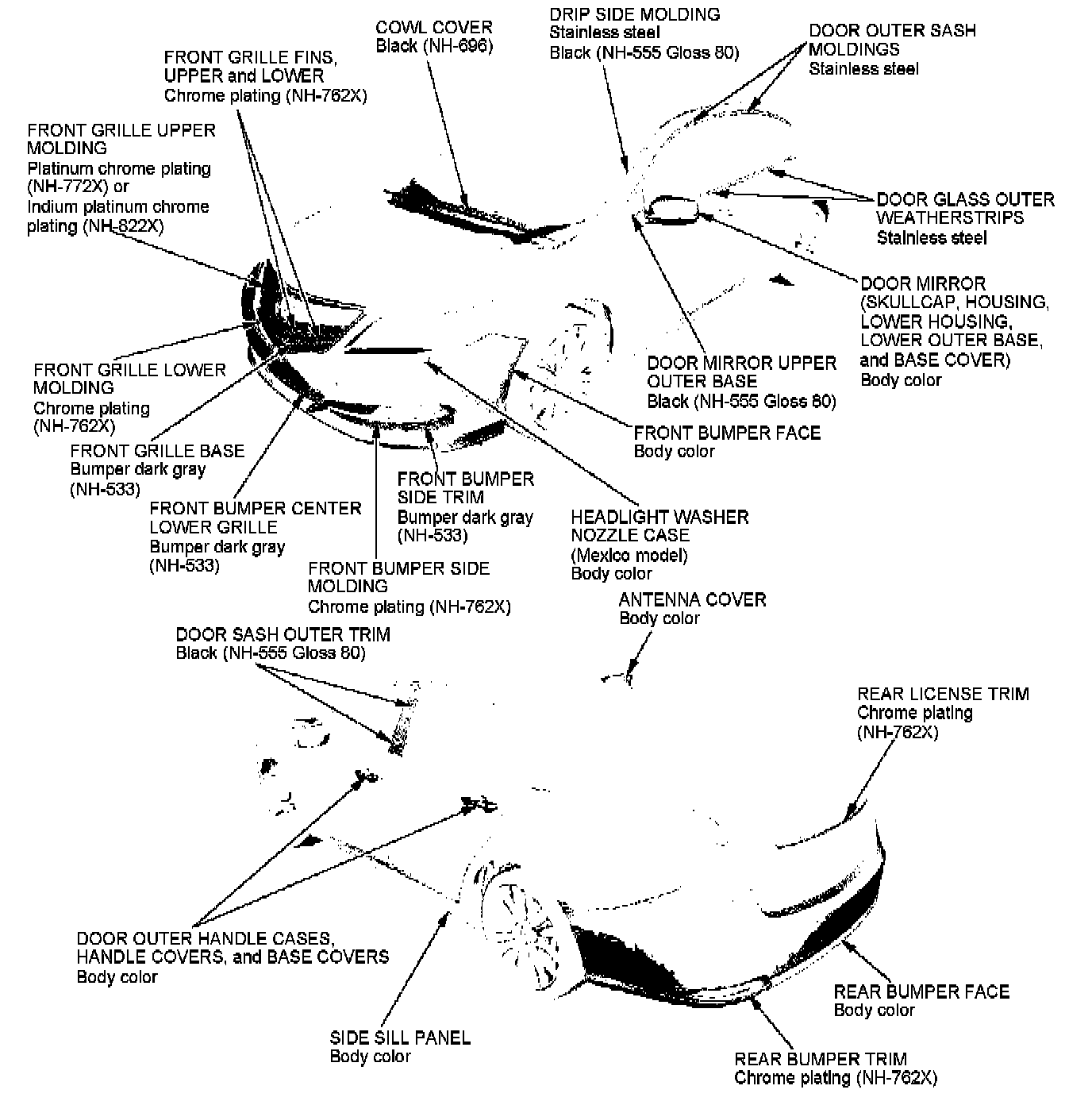

Color Chart Paint Specifications

NOTE:

^ For model year paint code information; refer to the appropriate service manual.

^ Apply black paint to the visible surface of the front wheelhouse and the rear wheelhouse after repairing and painting.

^ Apply black paint to the visible surface of the front bulkhead and the rearjack-up bracket after repairing and painting (except vehicles painted with black or dark colors).
