Sound Proofing / Insulation: Locations

Undercoating Areas

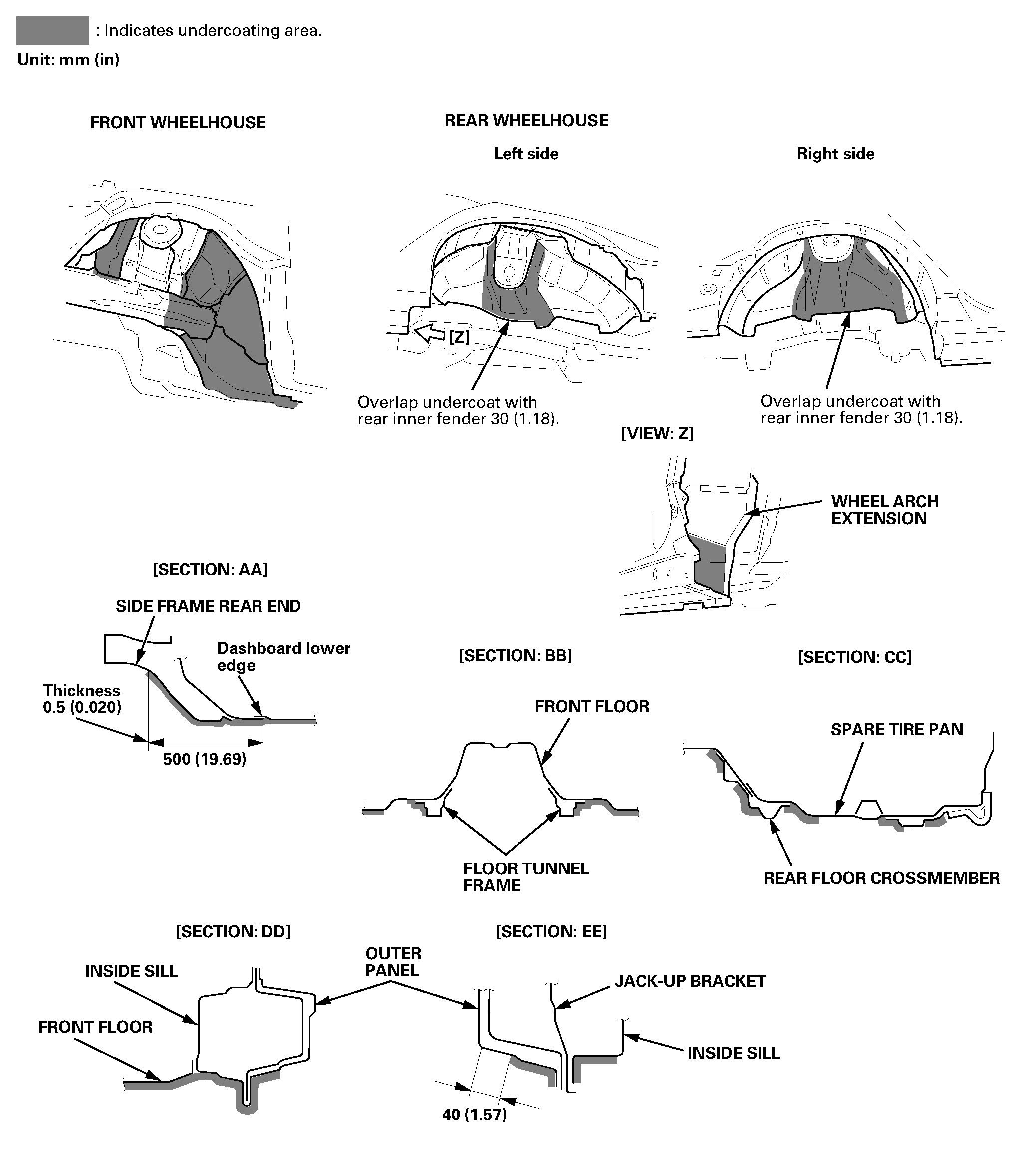

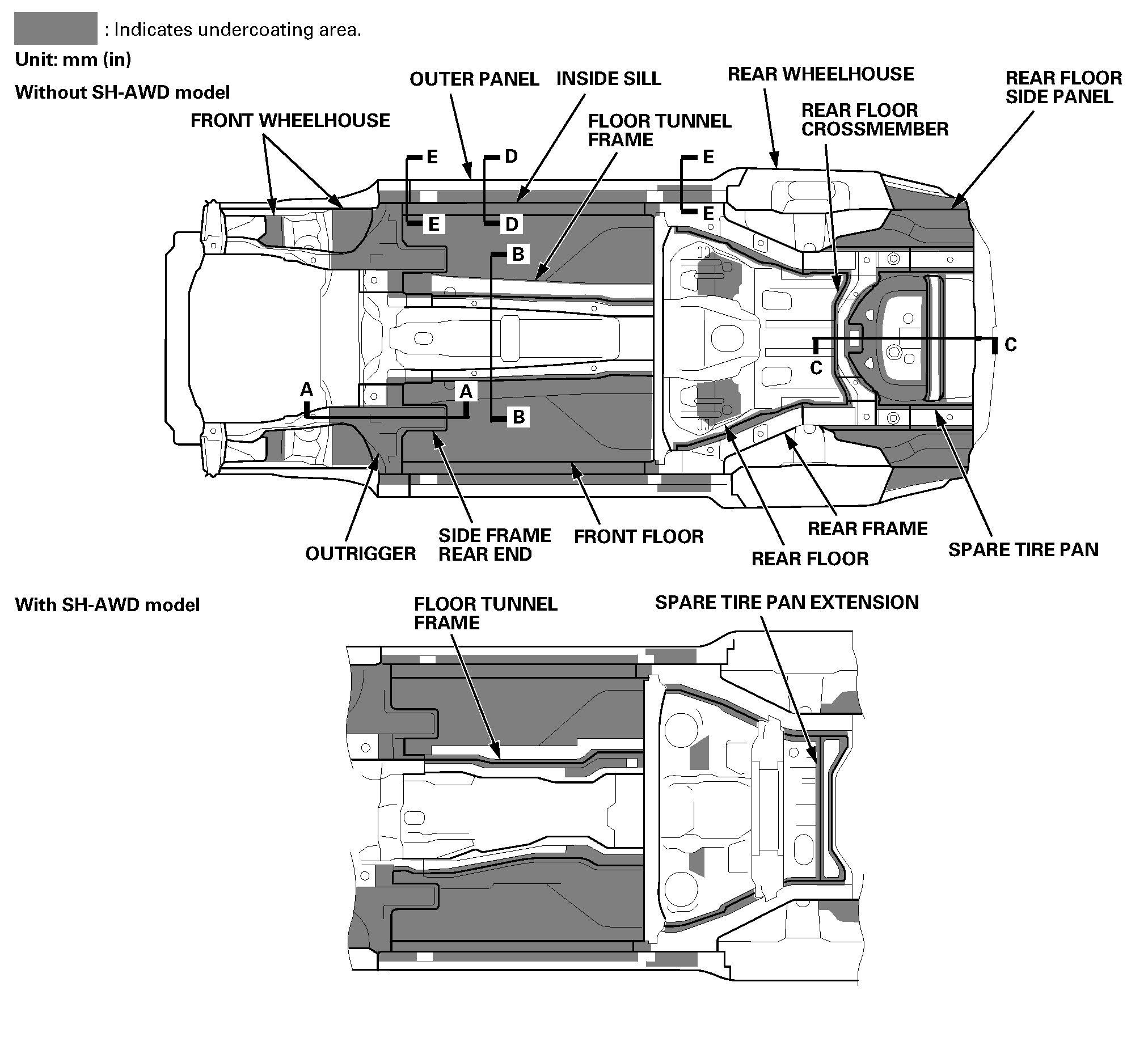

Apply the undercoat to the areas shown.

NOTE:
- Coating thickness: 0.4 mm (0.016 in) MIN.
- Front wheelhouse, rear wheelhouse, and dashboard lower coating thickness: 0.5 mm (0.020 in).
