Sound Proofing / Insulation: Locations

Undercoating Areas

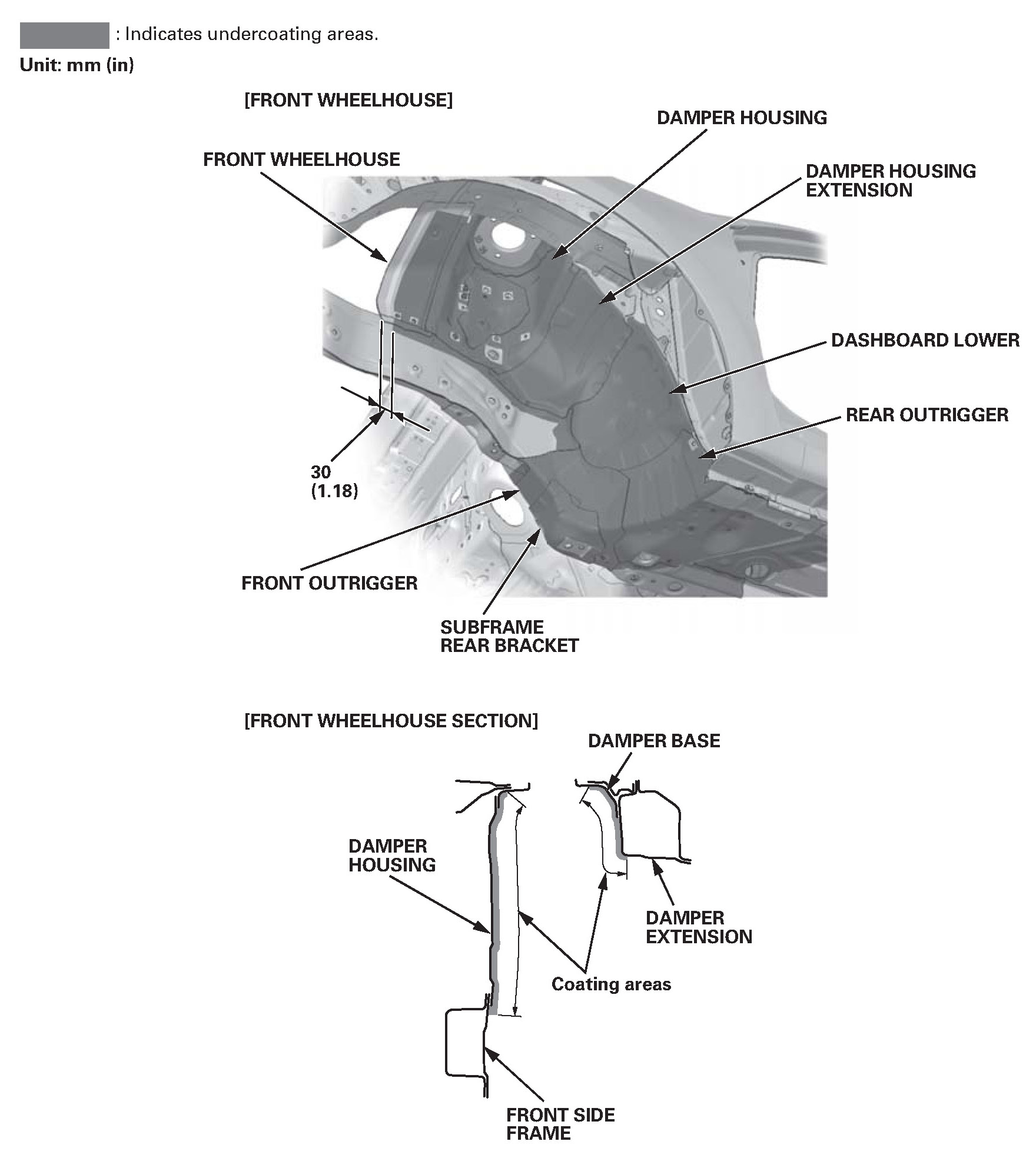

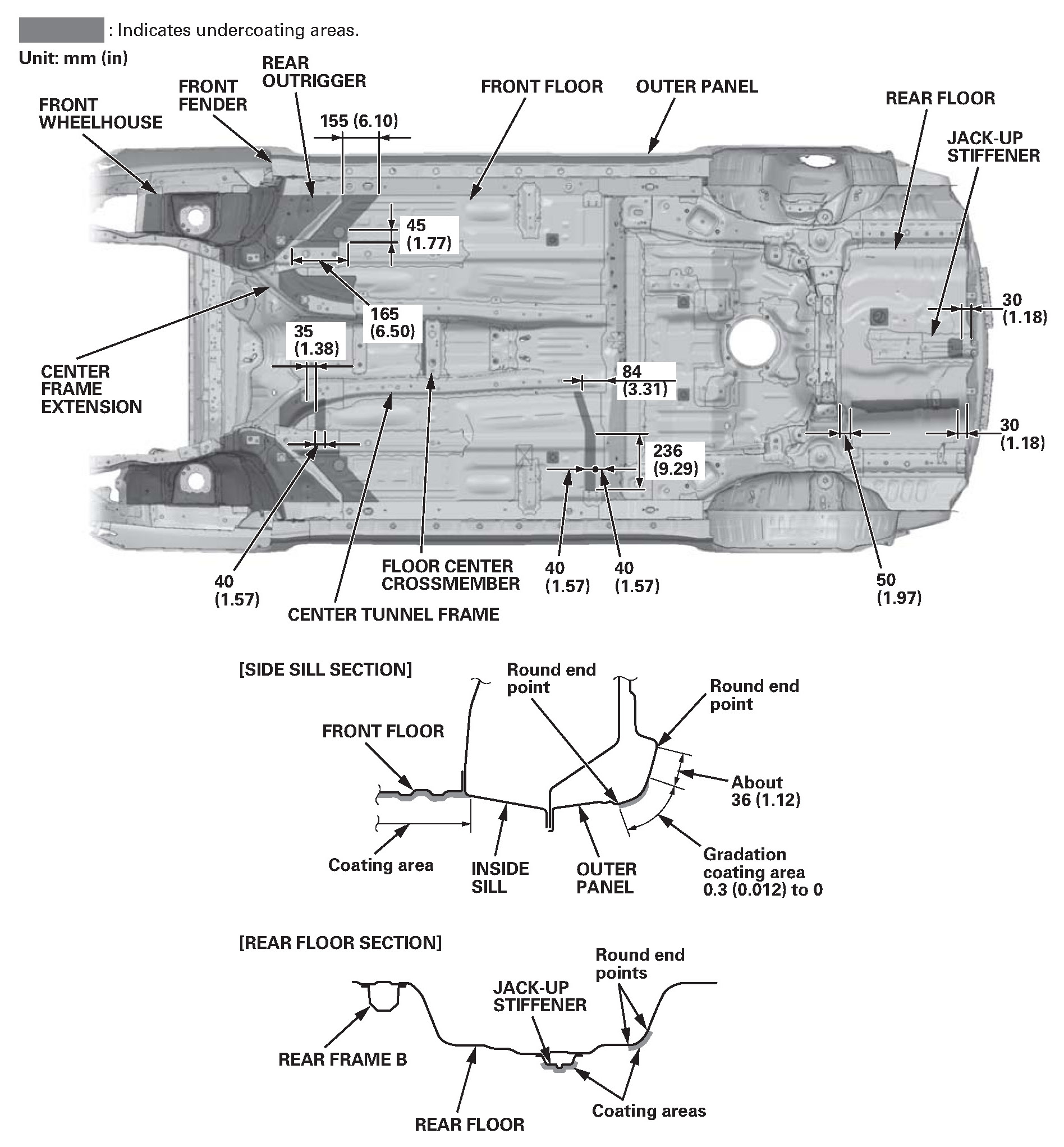

1. Apply the undercoat to the areas shown.

NOTE:
- Coating thickness: 0.4 mm (0.016 in) min.
- Front wheelhouse and dashboard lower coating thickness 0.5 mm (0.020 in).

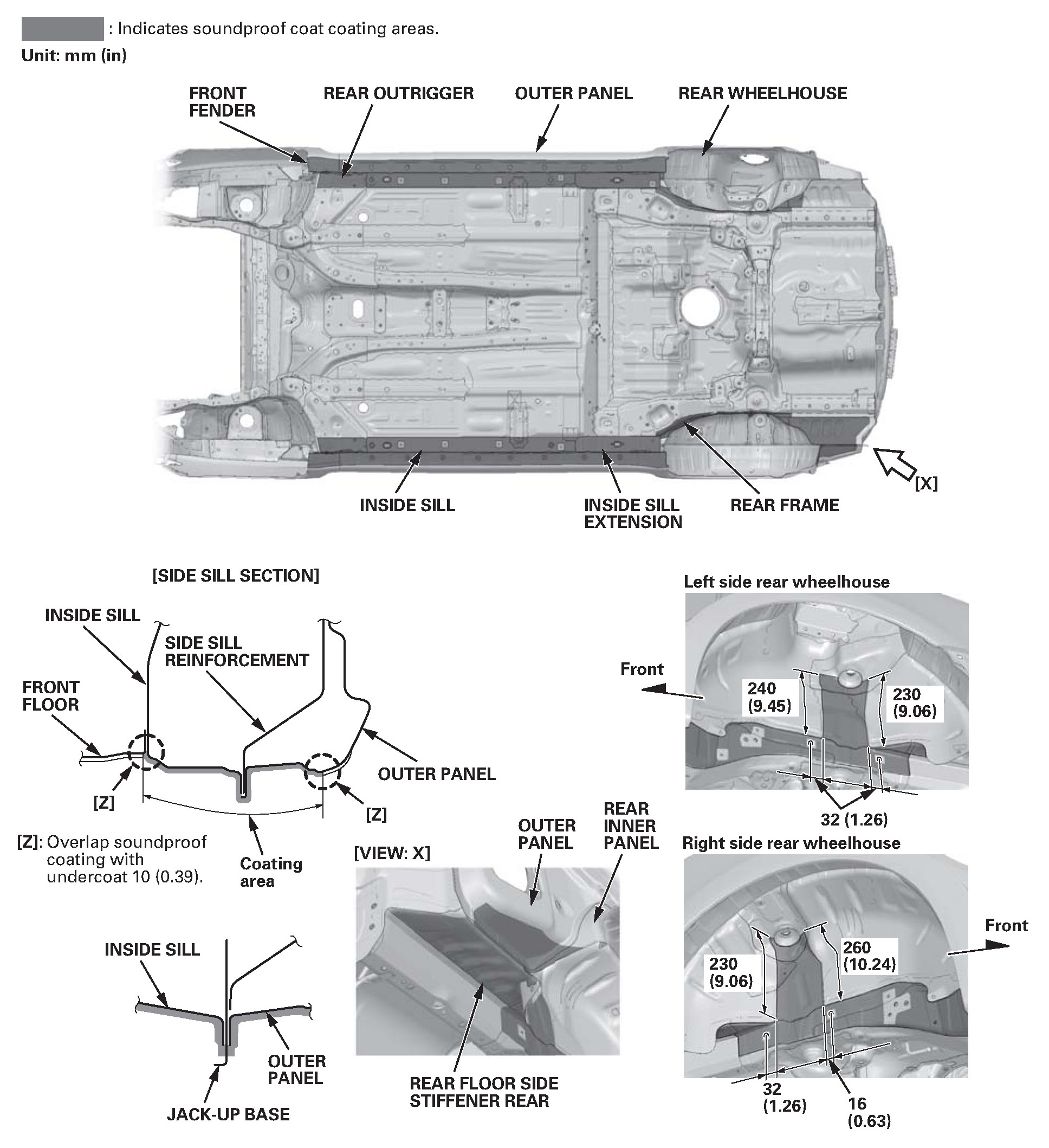

2. Spray the soundproof coating on the areas shown.

NOTE: Coating thickness: Wet 1.3 mm (0.051 in) min.
