Transmission Fluid Pressure Switch E (6th Clutch) Replacement

Transmission Fluid Pressure Switch E (6th Clutch) Replacement

1. Do the battery removal procedure Removal and Replacement.

2. Remove the air cleaner Service and Repair.

3. Remove the intake air duct.

4. Remove the battery heat shield.

5. Remove the auxiliary under-hood fuse/relay box.

6. Remove the battery base.

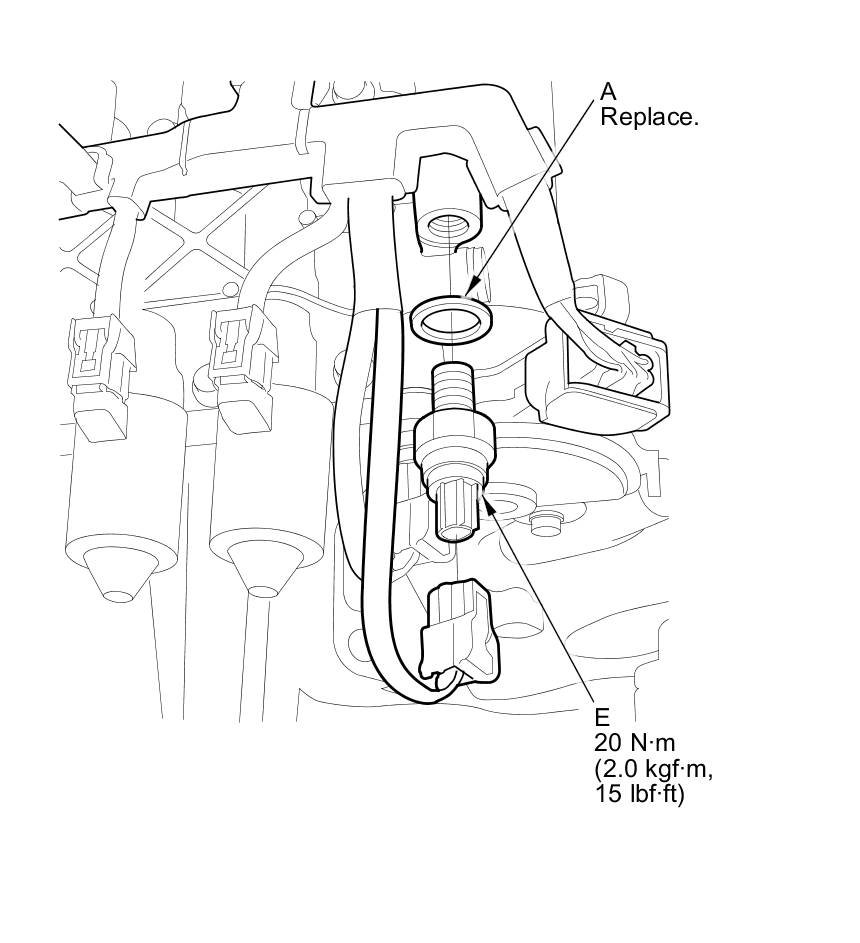

7. Disconnect the transmission fluid pressure switch E (6th clutch) connector, and remove transmission fluid pressure switch E (6th clutch) and the sealing washer (A).





8. Install transmission fluid pressure switch E (6th clutch) and a new sealing washer, and tighten the switch.

9. Check the connector for corrosion, dirt, or oil, and clean or repair if necessary, then connect the connector securely.

10. Install the battery base.

11. Install the auxiliary under-hood fuse/relay box.

12. Install the battery heat shield.

13. Install the intake air duct.

14. Install the air cleaner Service and Repair.

15. Do the battery installation procedure Removal and Replacement.
