Transmission Fluid Pressure Switch A (2nd Clutch) Replacement

Transmission Fluid Pressure Switch A (2nd Clutch) Replacement

1. Remove the air cleaner Service and Repair.

2. Remove the intake air duct.

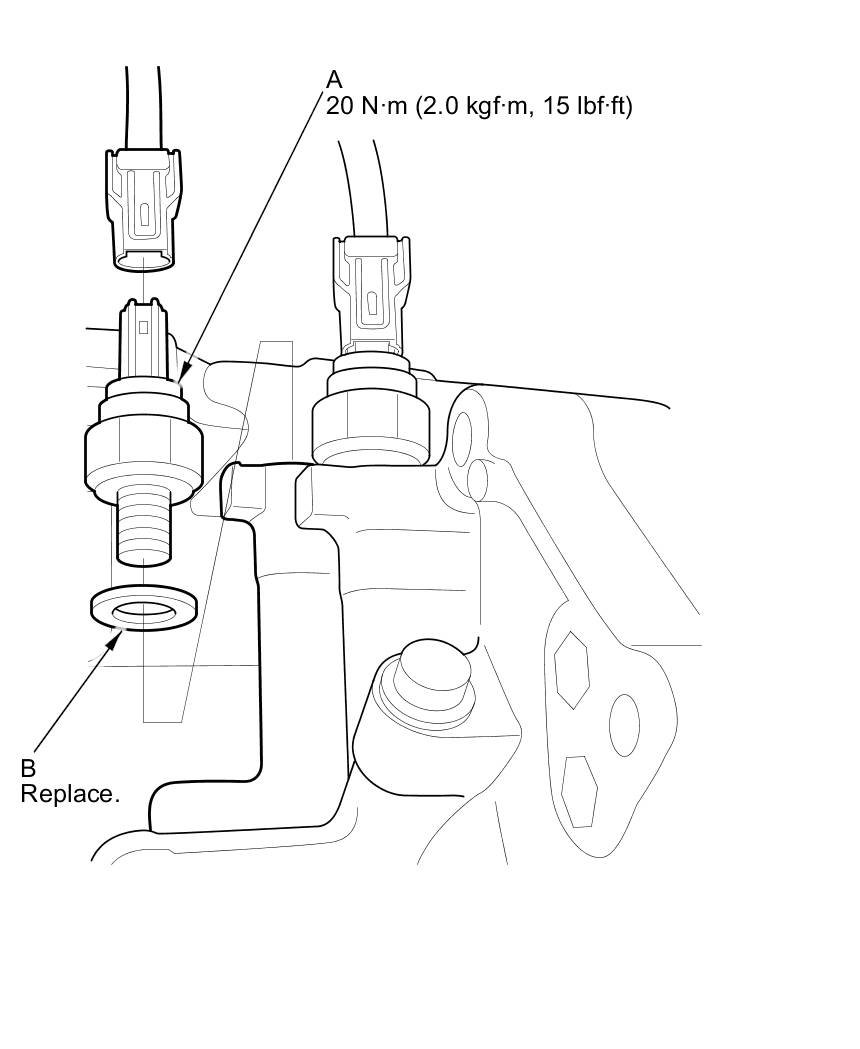

3. Disconnect the transmission fluid pressure switch A (2nd clutch) connector, and remove transmission fluid pressure switch A (2nd clutch) and the sealing washer (B).





4. Install transmission fluid pressure switch A (2nd clutch) and a new sealing washer, and tighten the switch.

5. Check the connector for corrosion, dirt, or oil, and clean or repair if necessary, then connect the connector securely.

6. Install the intake air duct.

7. Install the air cleaner Service and Repair.
