Home >> Acura >> 2012 >> ZDX V6-3.7L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Specifications >> Mechanical Specifications >> Idler Gear Shaft Specification(s)

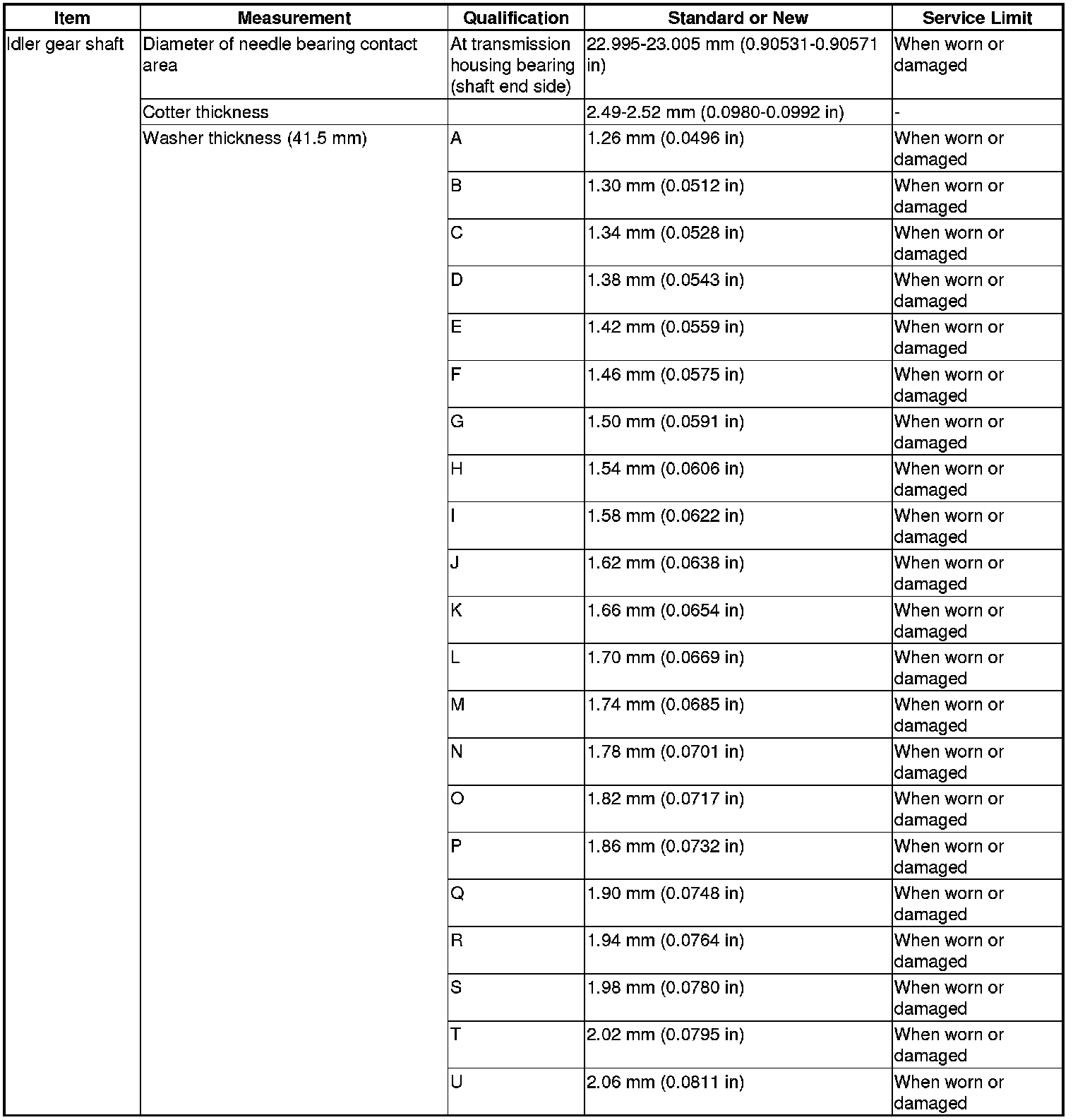

Idler Gear Shaft Specification(s)




Idler gear shaft

Idler gear shaft
