A/T Housing Selector Control Shaft Oil Seal Replacement

A/T Housing Selector Control Shaft Oil Seal Replacement

Special Tools Required

- Attachment, 22 x 24 mm 07746-001A800
- Driver Handle, 15 x 135L 07749-0010000

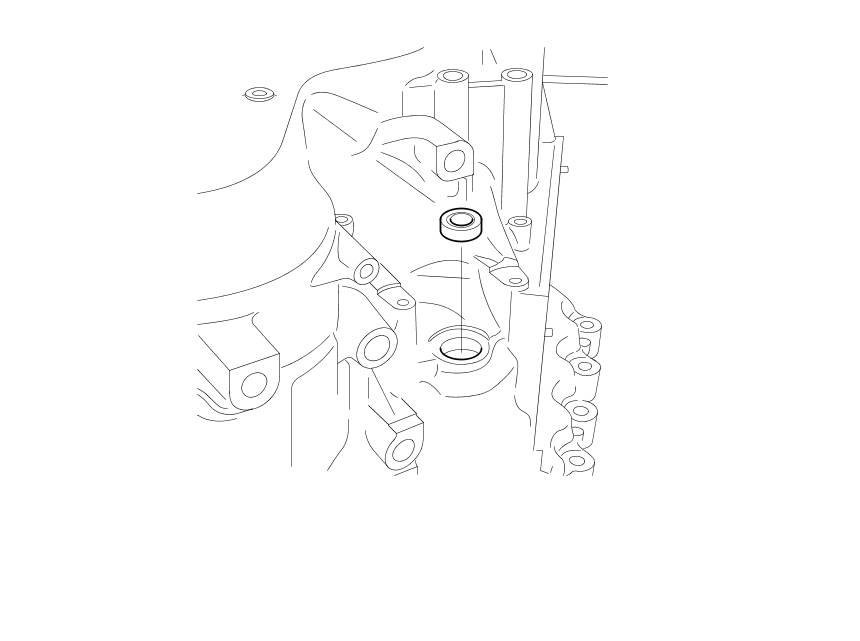

1. Remove the oil seal from the transmission housing.

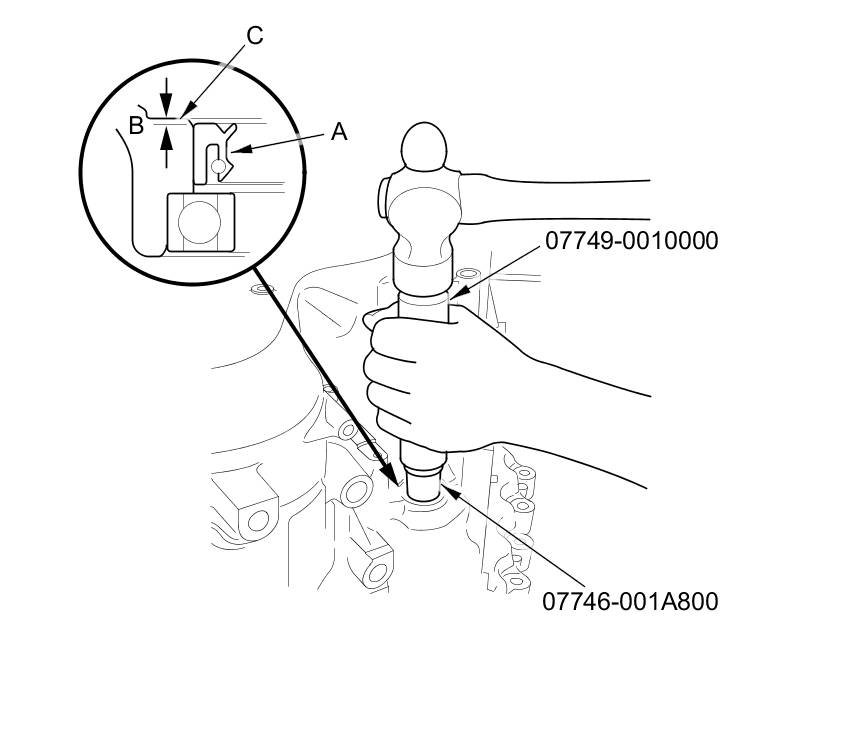

2. Install a new oil seal (A) in the transmission housing to a depth (B) of 0.3-1.0 mm (0.012-0.039 in) below the transmission housing surface (C) using the 15 x 135L driver handle and the 22 x 24 mm attachment.
