Home >> Acura >> 2012 >> ZDX V6-3.7L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Brakes and Traction Control >> System Specifications >> Brake Disc Specification(s)

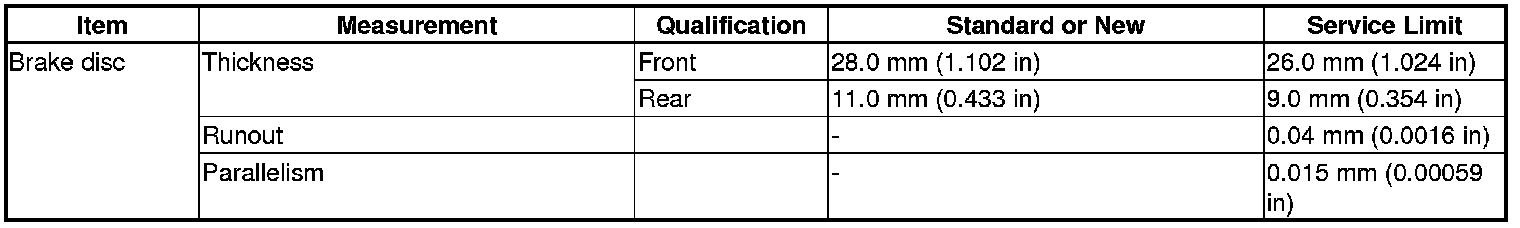

Brake Disc Specification(s)




Brake disc

Brake disc
