Automatic Transmission/Transaxle
>>

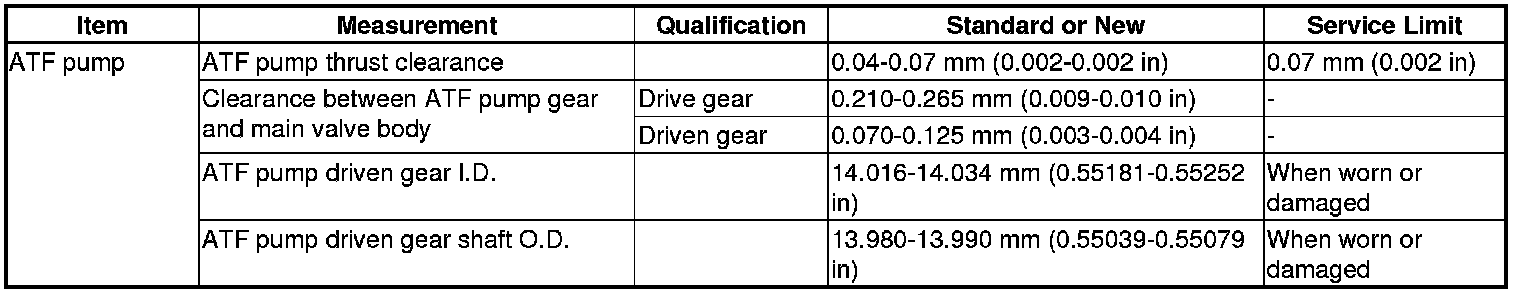

ATF Pump Specification(s)
ATF Pump Specification(s)
ATF pump
ATF pump
