Home >> Acura >> 2012 >> ZDX V6-3.7L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> A/T Differential Carrier Specification(s)

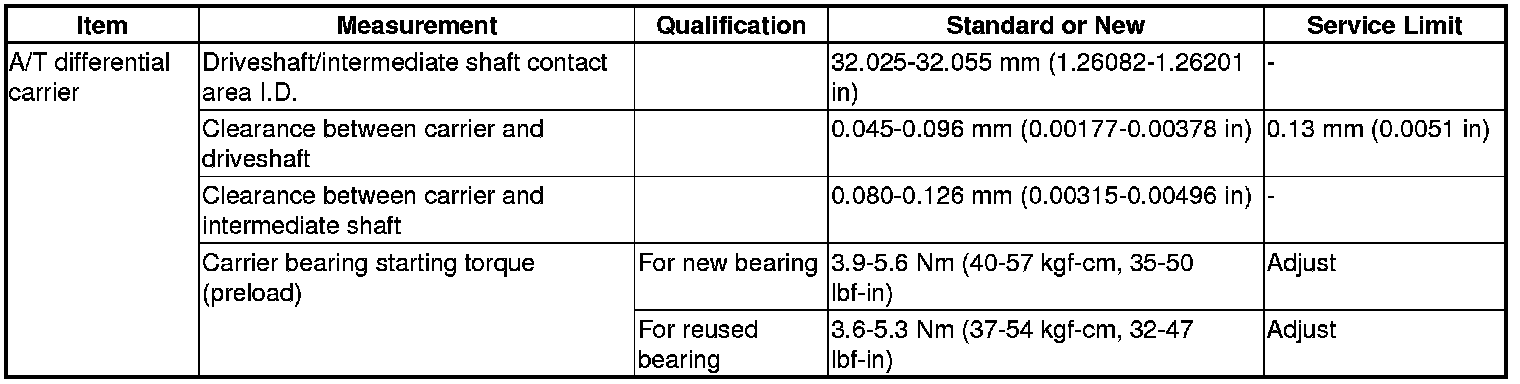

A/T Differential Carrier Specification(s)




A/T differential carrier

A/T differential carrier
