Home >> Acura >> 2012 >> ZDX V6-3.7L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Oxygen Sensor >> Diagrams >> Front Secondary Heated Oxygen Sensor (Secondary HO2S) (Bank 2, Sensor 2) Connector View

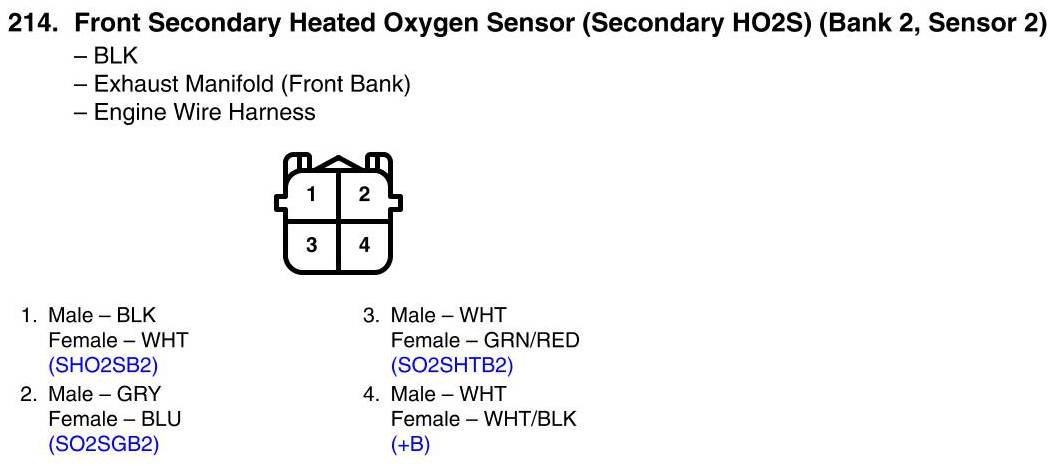

Front Secondary Heated Oxygen Sensor (Secondary HO2S) (Bank 2, Sensor 2) Connector View
