Recirculation Control Motor Replacement

Recirculation Control Motor Replacement

Removal

1. Remove the passenger's dashboard undercover Passenger's Dashboard Undercover Removal / Installation.

2. Remove the glove box Glove Box Removal / Installation.

3. Remove the climate control unit Service and Repair.

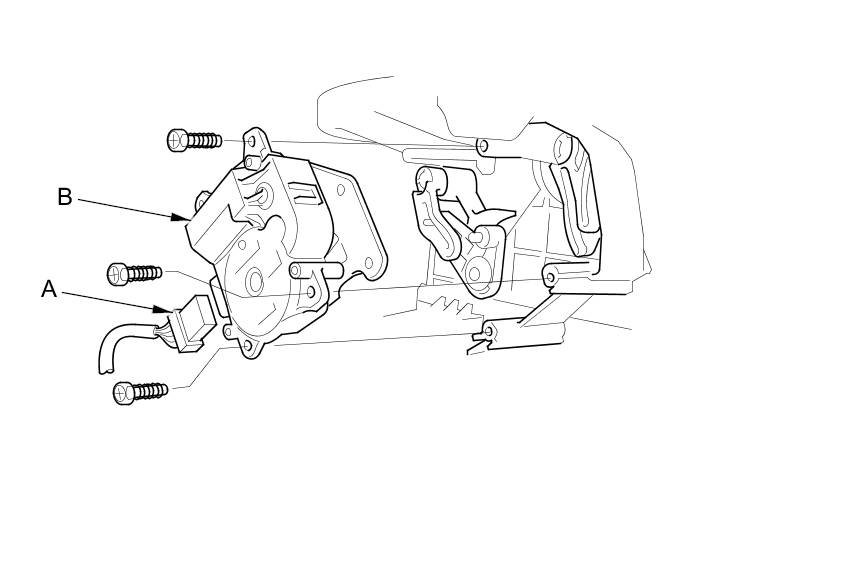

4. Disconnect the 7P connector (A) from the recirculation control motor (B). Remove the self-tapping screws and the recirculation control motor from the blower unit.






Installation

1. Make sure the damper lever pins in the motor lever are visible through the holes.

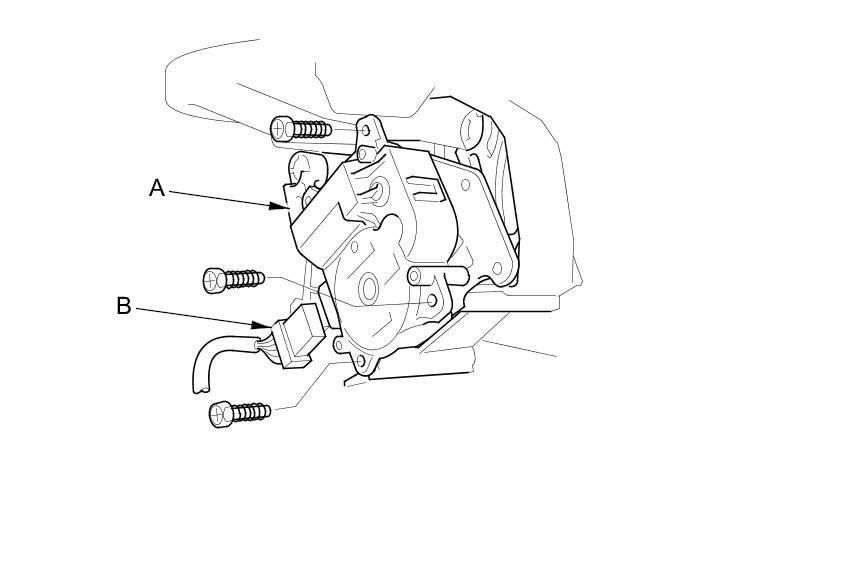

2. While holding the recirculation control motor (A), install the self-tapping screws and connect the 7P connector (B).





3. Reinstall the climate control unit.

4. After installation, make sure the motor runs smoothly.
