Passenger's Mode Control Motor Replacement

Passenger's Mode Control Motor Replacement

Removal

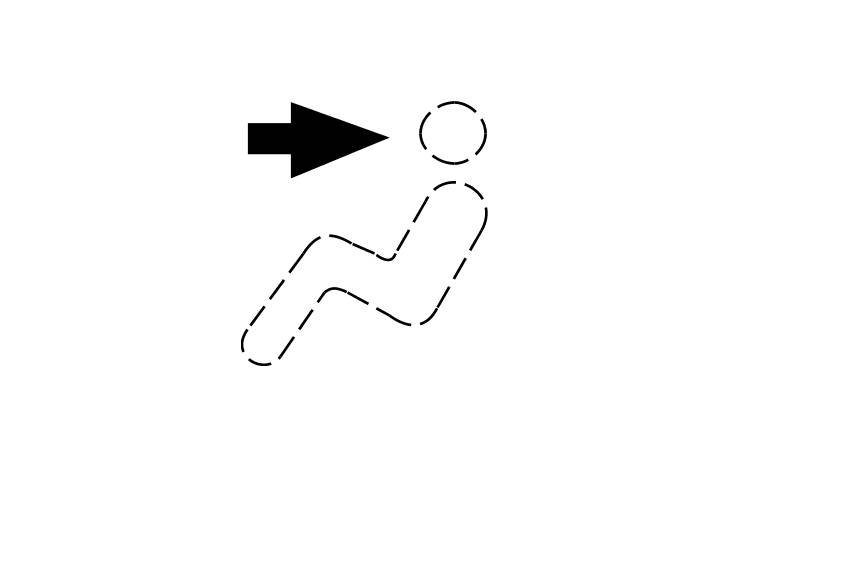

NOTE: Set the passenger's side climate control to the VENT position before removing the motor.





1. Remove the passenger's dashboard undercover Passenger's Dashboard Undercover Removal / Installation.

2. Remove the glove box Glove Box Removal / Installation.

3. Remove the glove box frame.

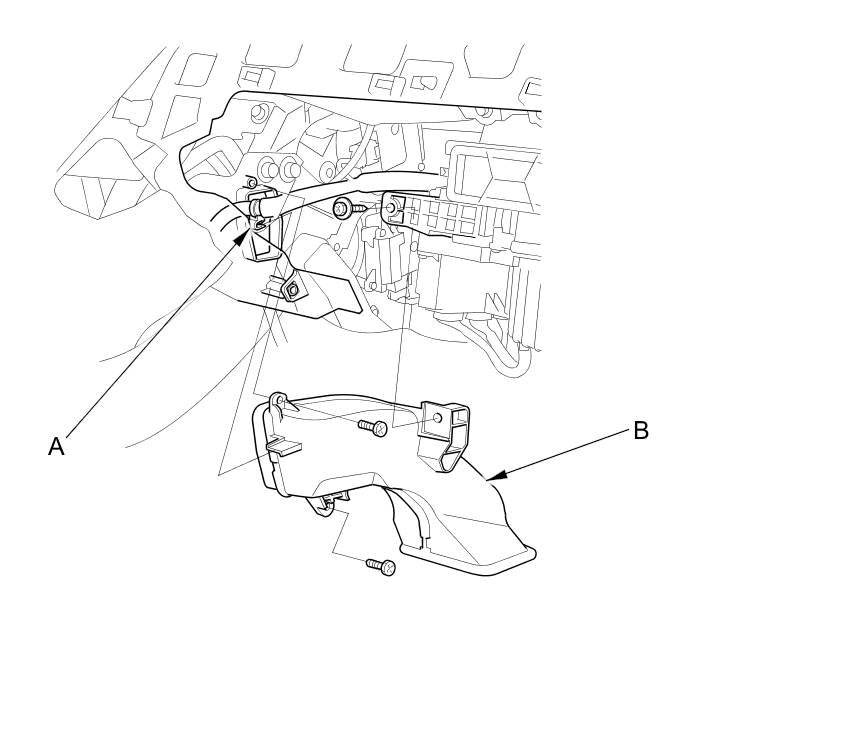

4. Detach the harness clip (A), then remove the self-tapping screws and the passenger's heater duct (B).

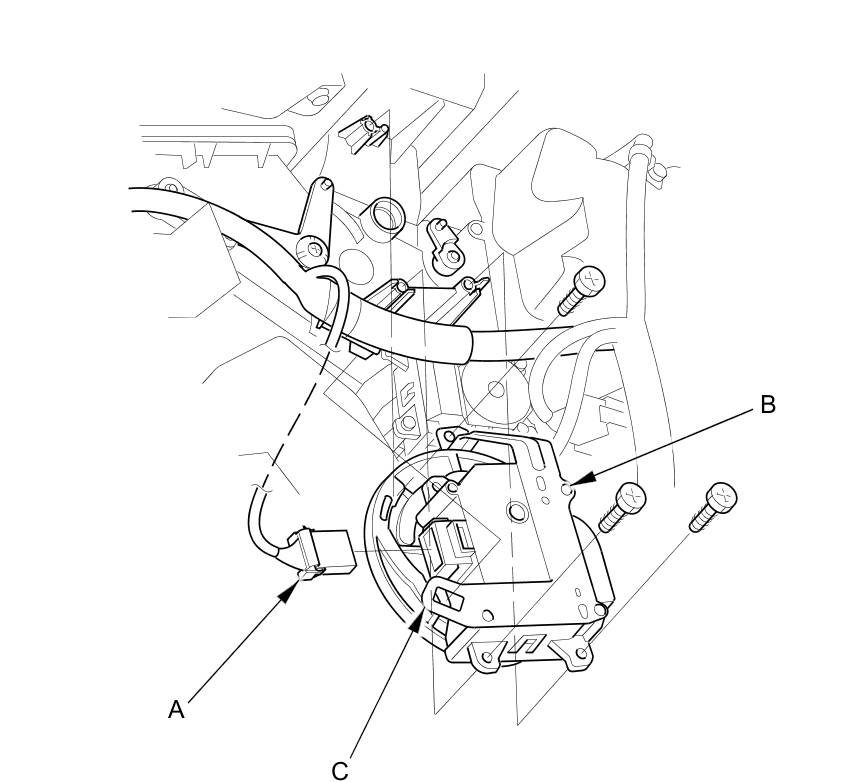

5. Disconnect the 7P connector (A) from the passenger's mode control motor (B). Release the wire from its harness clip (C), then remove the self-tapping screws and the passenger's mode control motor from the heater unit.






Installation

1. Release the lock (A), then remove the motor lever (B) from the mode control motor (C).

NOTE: Before installing the mode control motor, plug in the 7P connector, and set the passenger's side climate control mode to VENT. Check that the motor output shaft is lined up as indicated (D).

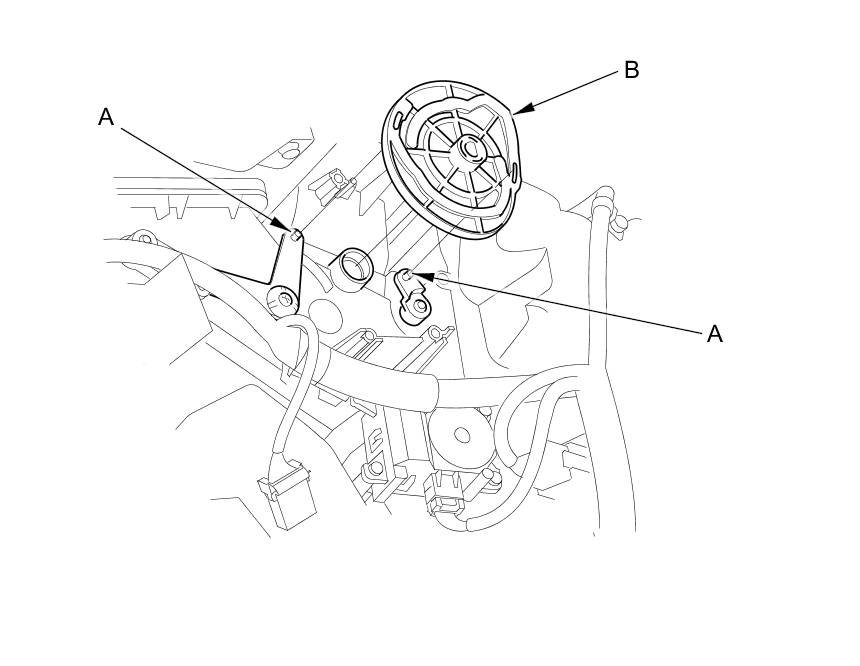

2. Align the position of the damper lever pins (A), then install the motor lever (B).

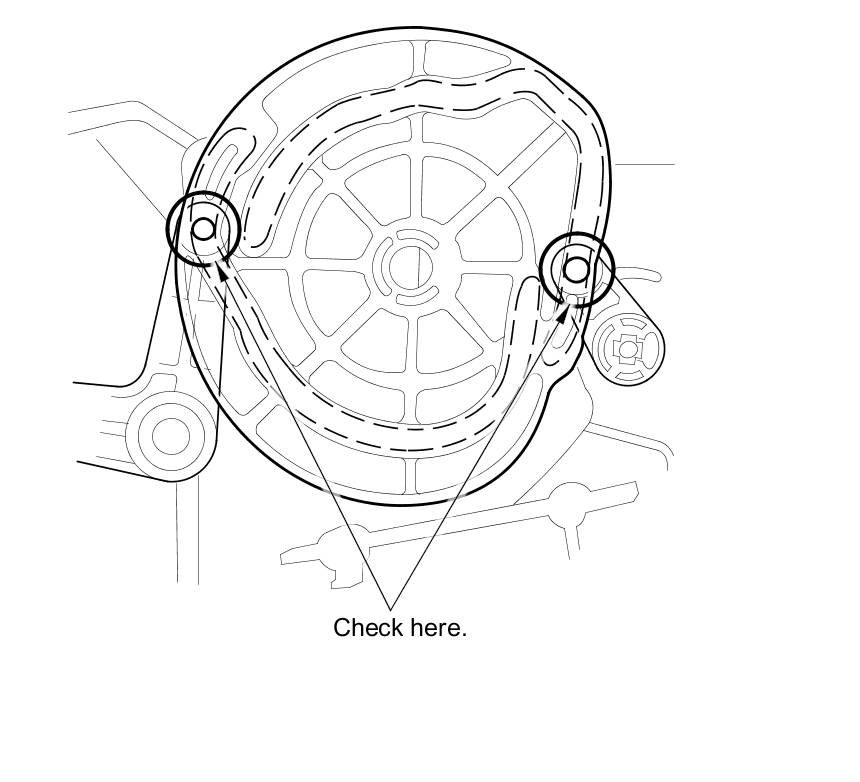

3. Make sure the damper lever pins in the motor lever are visible through the holes.






4. Install the mode control motor (A) while holding the motor lever (B).





5. After installation, make sure the motor runs smoothly.
