Driver's Mode Control Motor Replacement

Driver's Mode Control Motor Replacement

1. Remove the driver's dashboard undercover Driver's Dashboard Undercover Removal / Installation.

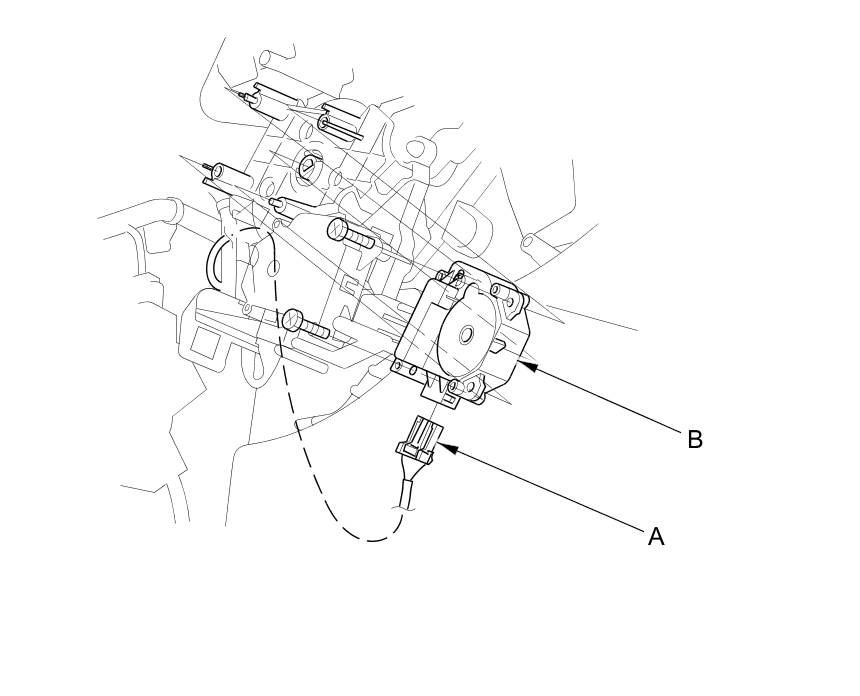

2. Disconnect the 7P connector (A) from the driver's mode control motor (B). Remove the self-tapping screws and the driver's mode control motor from the heater unit.





3. Install the motor in the reverse order of removal. Make sure the pin on the motor is properly engaged with the linkage. After installation, make sure the motor runs smoothly.
