Driver's Air Mix Control Motor Replacement

Driver's Air Mix Control Motor Replacement

1. Remove the driver's dashboard undercover Driver's Dashboard Undercover Removal / Installation.

2. Remove the self-tapping screws, the aspirator hose (A), and the driver's heater duct (B).

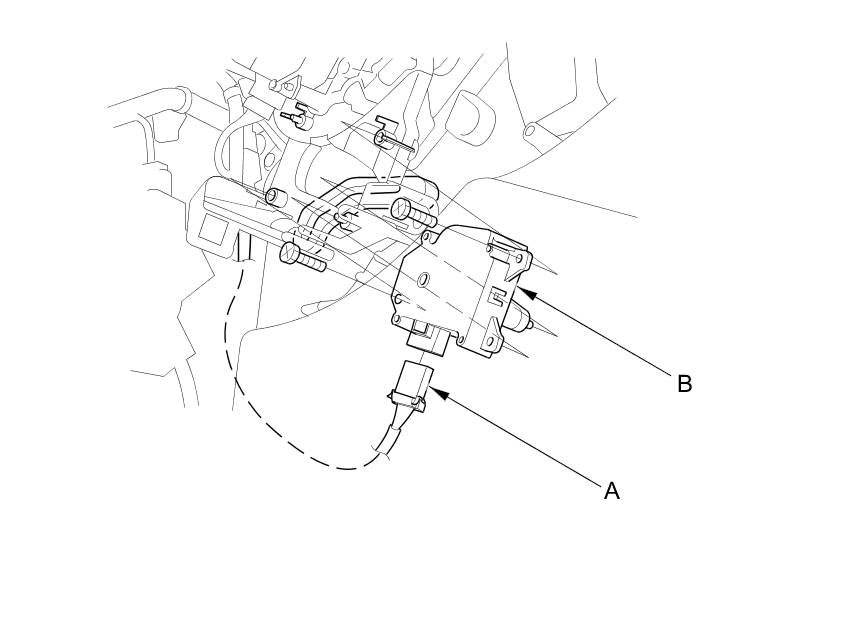

3. Disconnect the 7P connector (A) from the driver's air mix control motor (B). Remove the self-tapping screws and the driver's air mix control motor from the heater unit.





4. Make sure the air mix door and linkage move smoothly. Then install the motor in the reverse order of removal. Make sure the pin on the motor is properly engaged with the linkage. After installation, make sure the motor runs smoothly.
