Side Engine Mount Removal/Installation

Side Engine Mount Removal and Installation

Removal

1. Remove the passenger's side front fender trim .

2. Remove the bracket, then remove the PCM cover.

3. Remove the harness clamps and disconnect the PCM connectors and the engine wire harness connector, then remove the PCM.

4. Remove the A/C receiver line clamp and the connector from the PCM bracket, then remove the PCM bracket and the harness bracket.

5. Lift and support the engine with a jack and a wood block under the oil pan.

6. Remove the ground cable bracket (A), then remove the upper half of the side engine mount bracket (B).

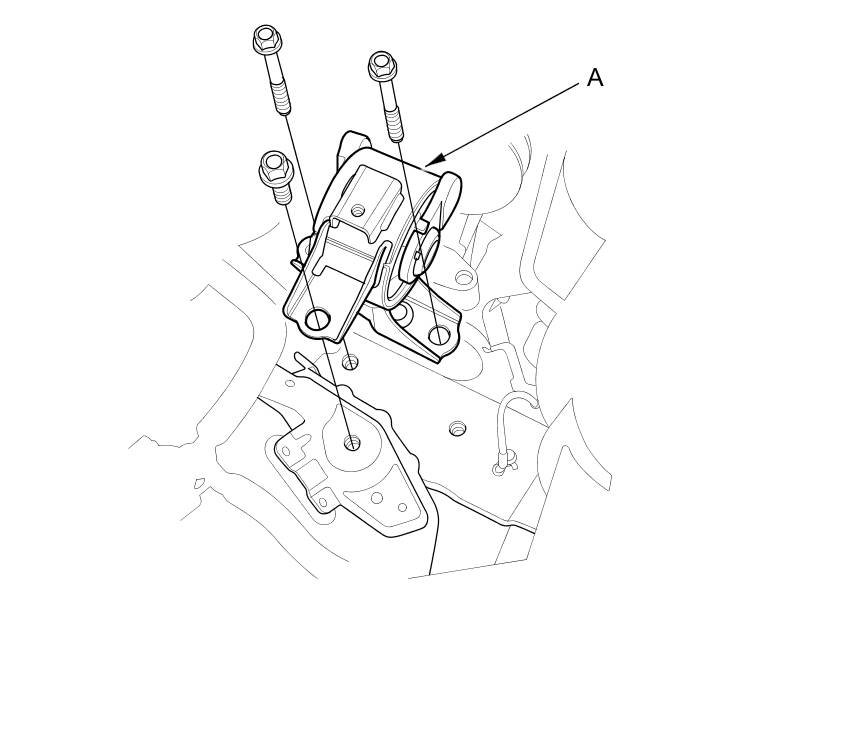

7. Remove the side engine mount (A).






Installation

1. Install the side engine mount (A).






2. Loosely install the upper half of the side engine mount bracket (A) using new bolts.





3. Install the ground cable bracket (B).

4. Remove the jack and the wood block.

5. Tighten the mounting bolts in the numbered sequence shown.

6. Install the PCM bracket and the harness bracket, then install the A/C receiver line clamp and the connector to the PCM bracket.

7. Install the PCM, then connect the PCM connectors and the engine wire harness connector and install the harness clamps.

8. Install the PCM cover, then install the bracket.

9. Install the passenger's side front fender trim .
