Radiator and A/C Condenser Fan, Motor, and Shroud Removal and Installation

Radiator and A/C Condenser Fan, Motor, and Shroud Removal and Installation

A/C Condenser Fan Shroud Removal

1. Disconnect the A/C condenser fan motor connector (A), and remove the harness clamps (B).





2. Remove the coolant reservoir (C).

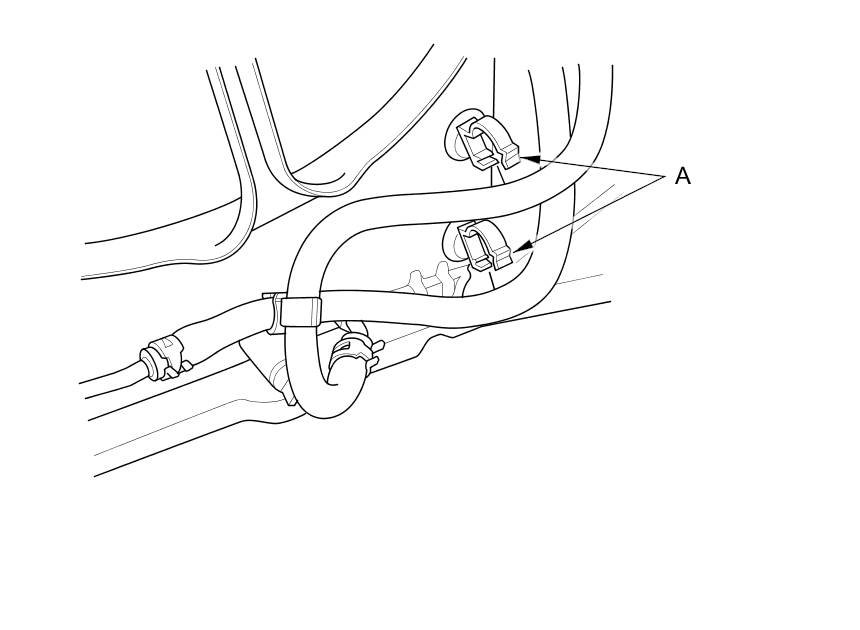

3. Unclamp the ATF cooler hose clamps (A).






4. Loosen the two bolts (A), then remove the A/C condenser fan shroud assembly (B).

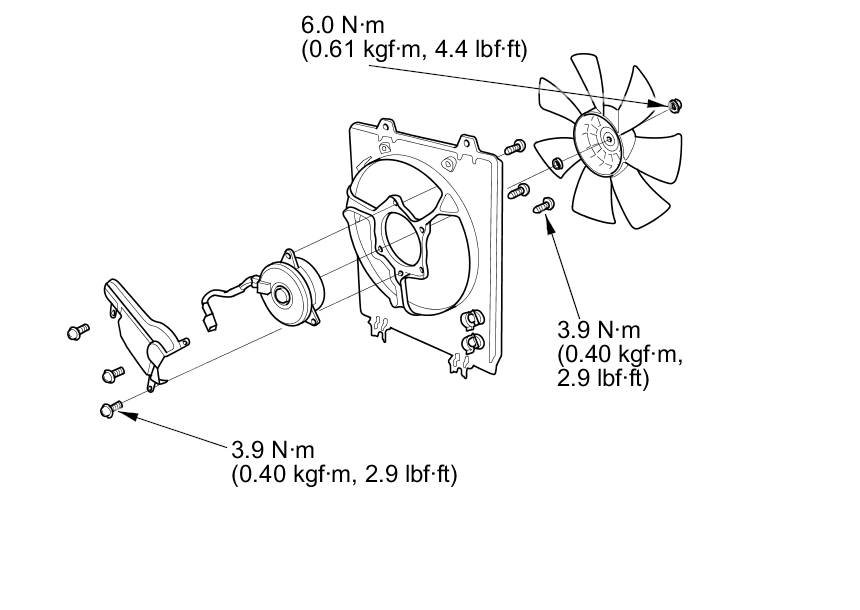

5. Disassemble the A/C condenser fan shroud assembly.






A/C Condenser Fan Shroud Installation

1. Reassemble the A/C condenser fan shroud assembly.






2. Install the A/C condenser fan shroud assembly (A), then tighten the bolts (B).






3. Clamp the ATF cooler hose clamps (A).






4. Install the coolant reservoir (A).





5. Connect the A/C condenser fan motor connector (B), and install the harness clamps (C).

Radiator Fan Shroud Removal

1. Drain the engine coolant Service and Repair.

2. Remove the bulkhead cover Front Bulkhead Cover Replacement.

3. Do the battery removal procedure.

4. Remove the battery base.

5. Disconnect the radiator fan motor connector (A), the ECT sensor 2 sub harness connector (B), and the ECT sensor 2 connector (C), then remove the harness clamp (D).





6. Disconnect the upper radiator hose (E).

7. Remove the radiator fan shroud assembly (A).





8. Remove the harness clamp (B) and the wire harness (C).

9. Disassemble the radiator fan shroud assembly.






Radiator Fan Shroud Installation

1. Reassemble the radiator fan shroud assembly.

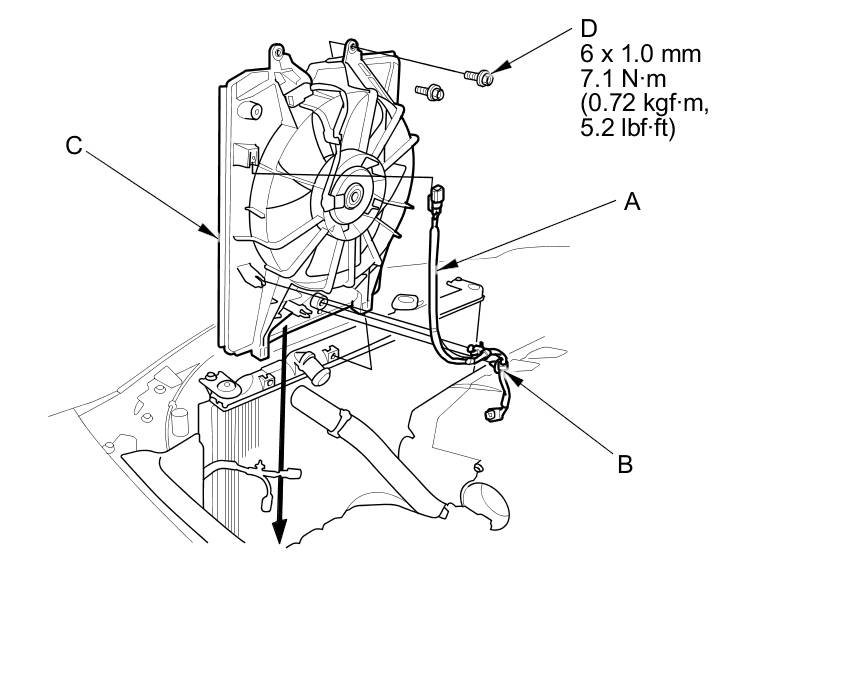

2. Install the wire harness (A) and the harness clamp (B).





3. Install the radiator fan shroud assembly (C), then tighten the bolts (D).

4. Connect the upper radiator hose (A).





5. Install the harness clamp (B), then connect the ECT sensor 2 connector (C), the ECT sensor 2 sub harness connector (D), and the radiator fan motor connector (E).

6. Install the battery base.

7. Do the battery installation procedure.

8. Install the bulkhead cover Front Bulkhead Cover Replacement.

9. Fill the radiator with engine coolant, and bleed the air from the cooling system Service and Repair.

10. Clean up any spilled engine coolant.
