Home >> Acura >> 2012 >> ZDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Harness >> Left Engine Compartment Wire Harness, ECT Sensor Sub-Harness, And Left Front Damper Sub-Harness

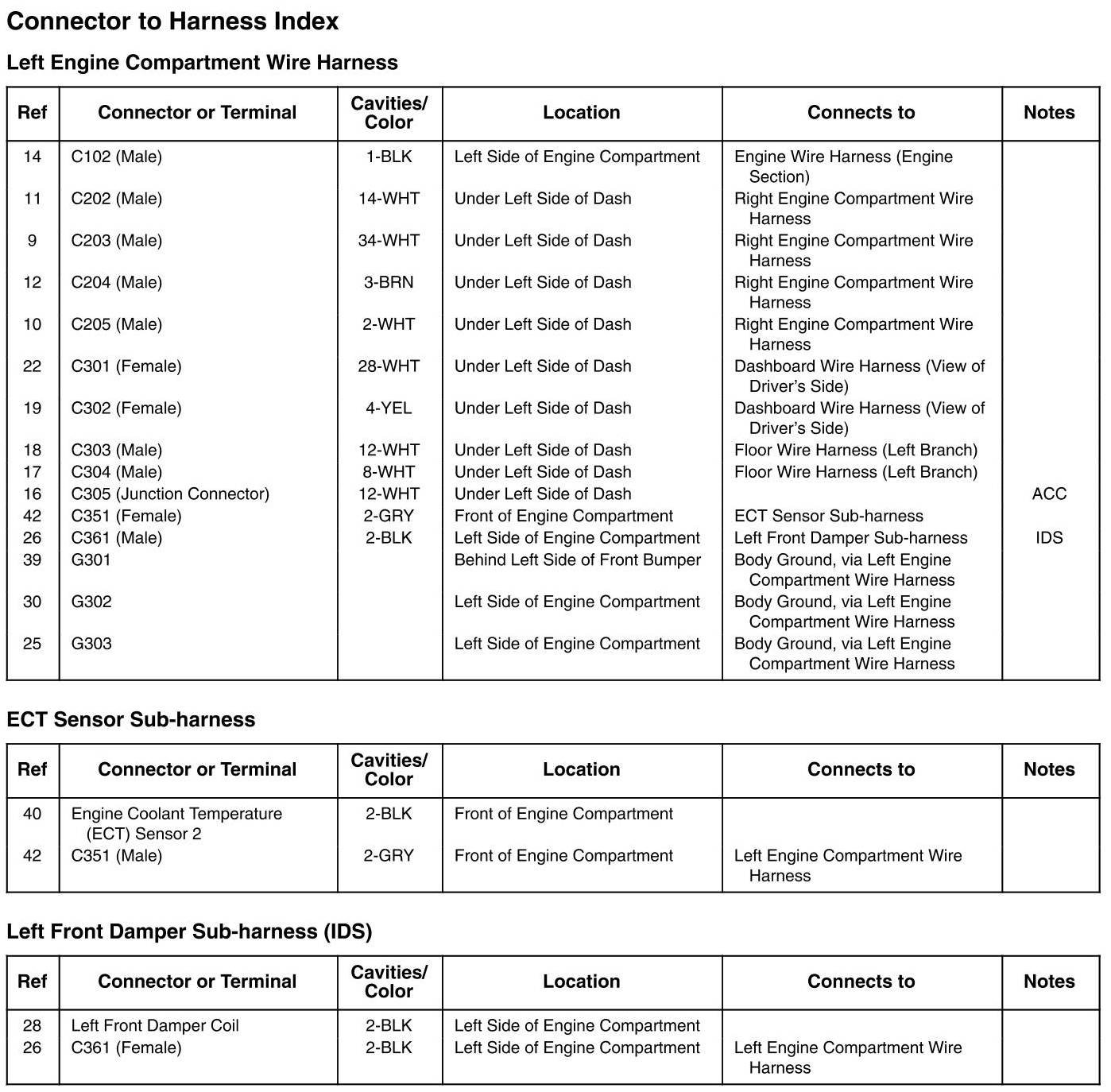

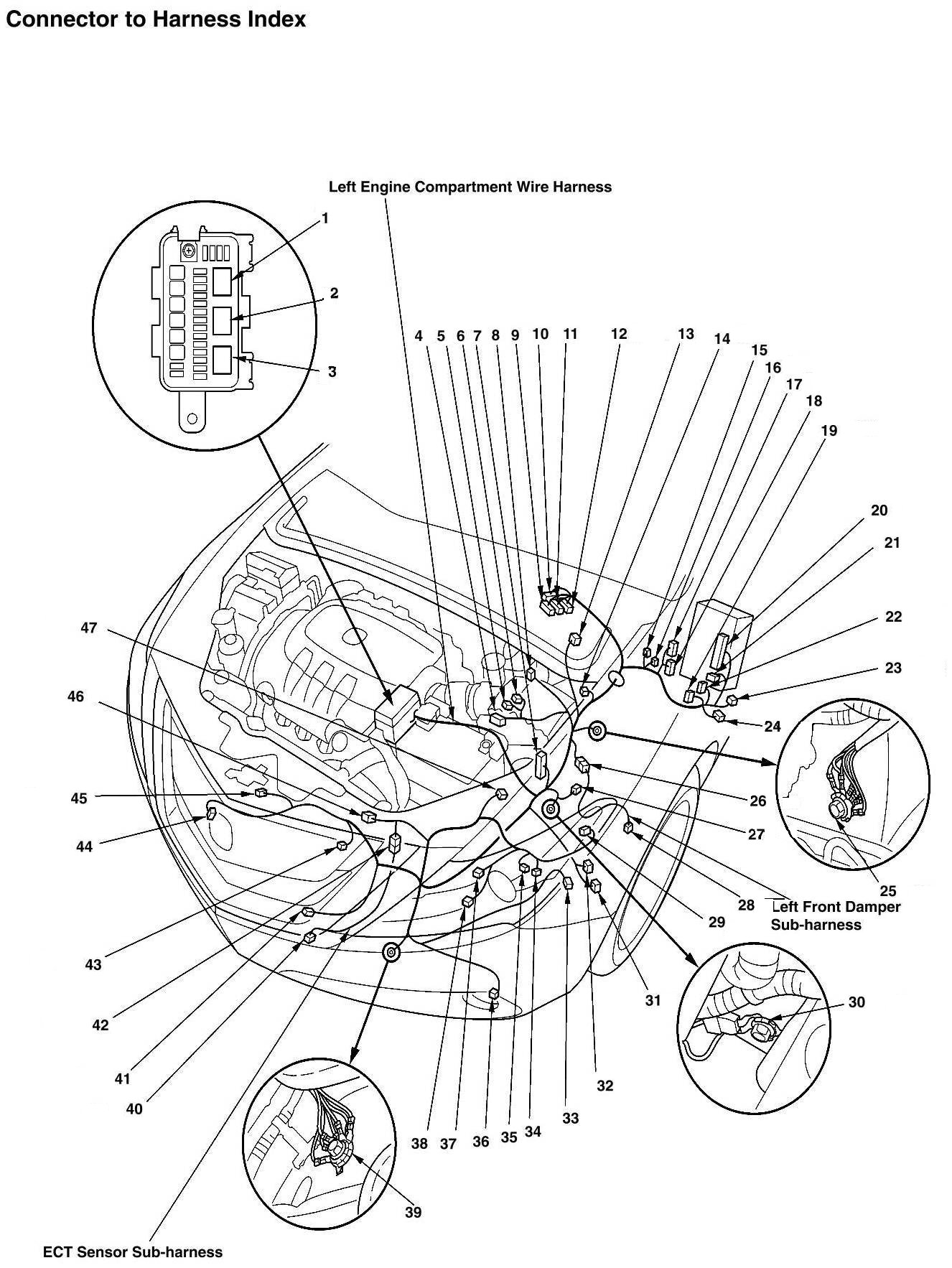

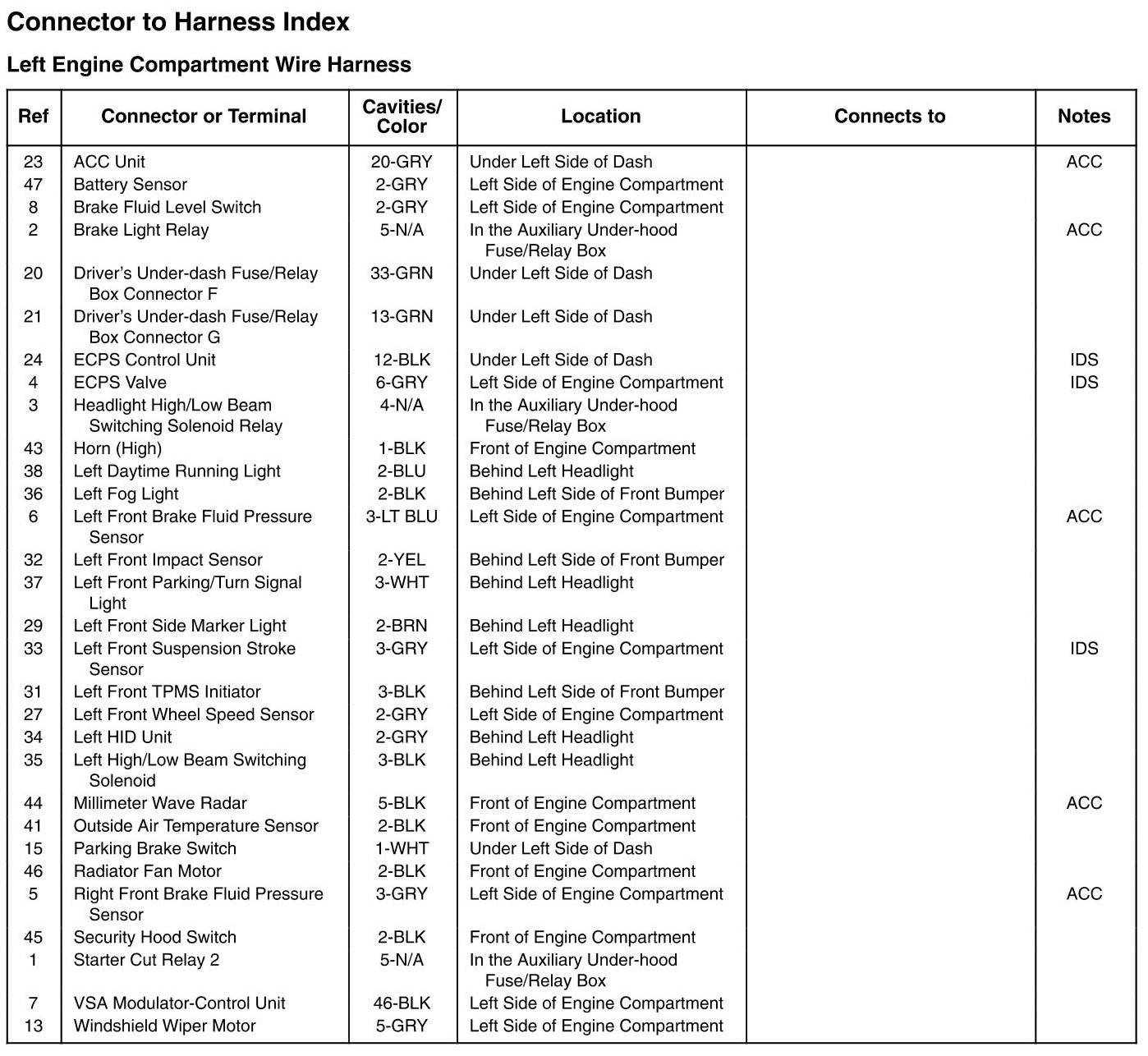

Left Engine Compartment Wire Harness, ECT Sensor Sub-Harness, And Left Front Damper Sub-Harness
