Driver's Seat Wire Harness




Connector and Harness Locations

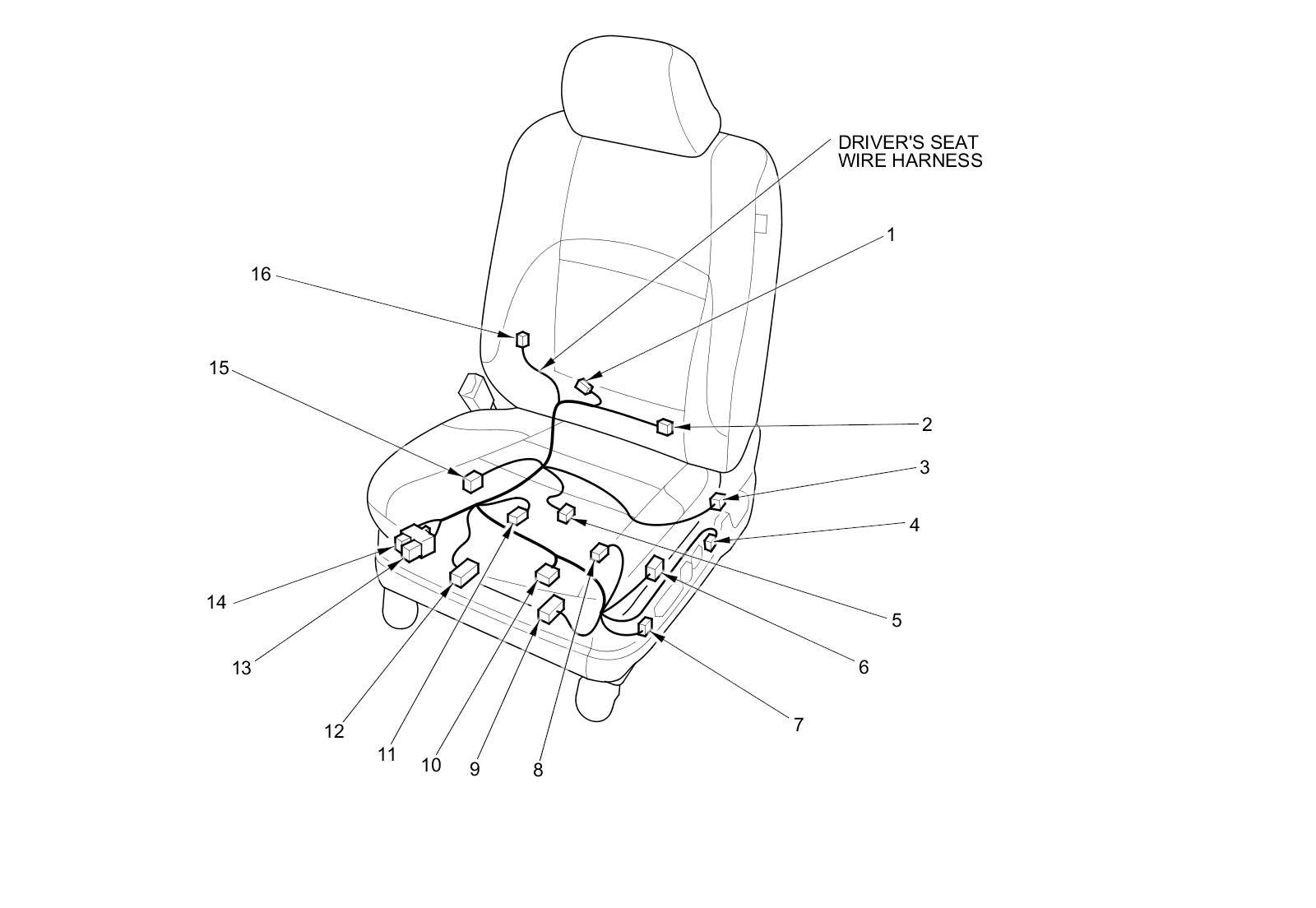

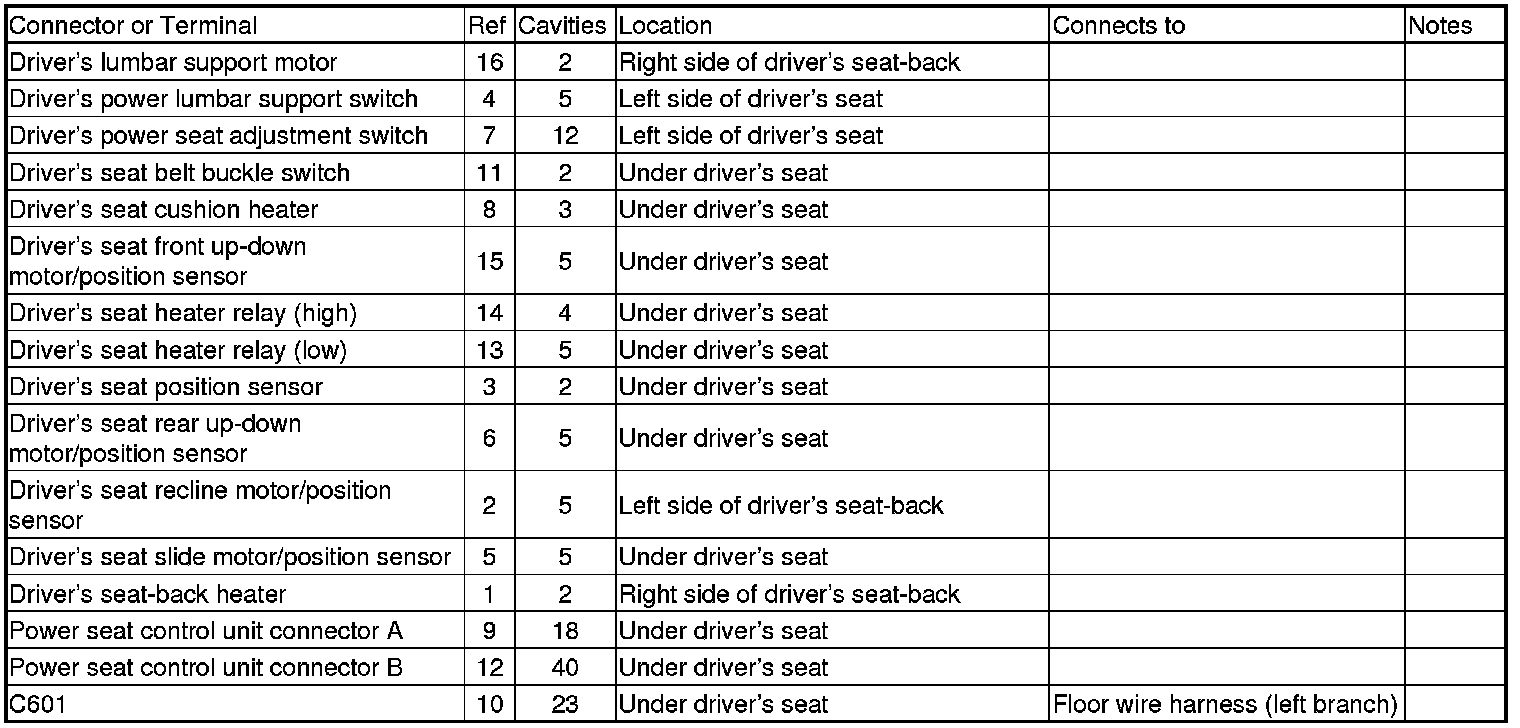

Driver's Seat Wire Harness (With Seat Ventilation)

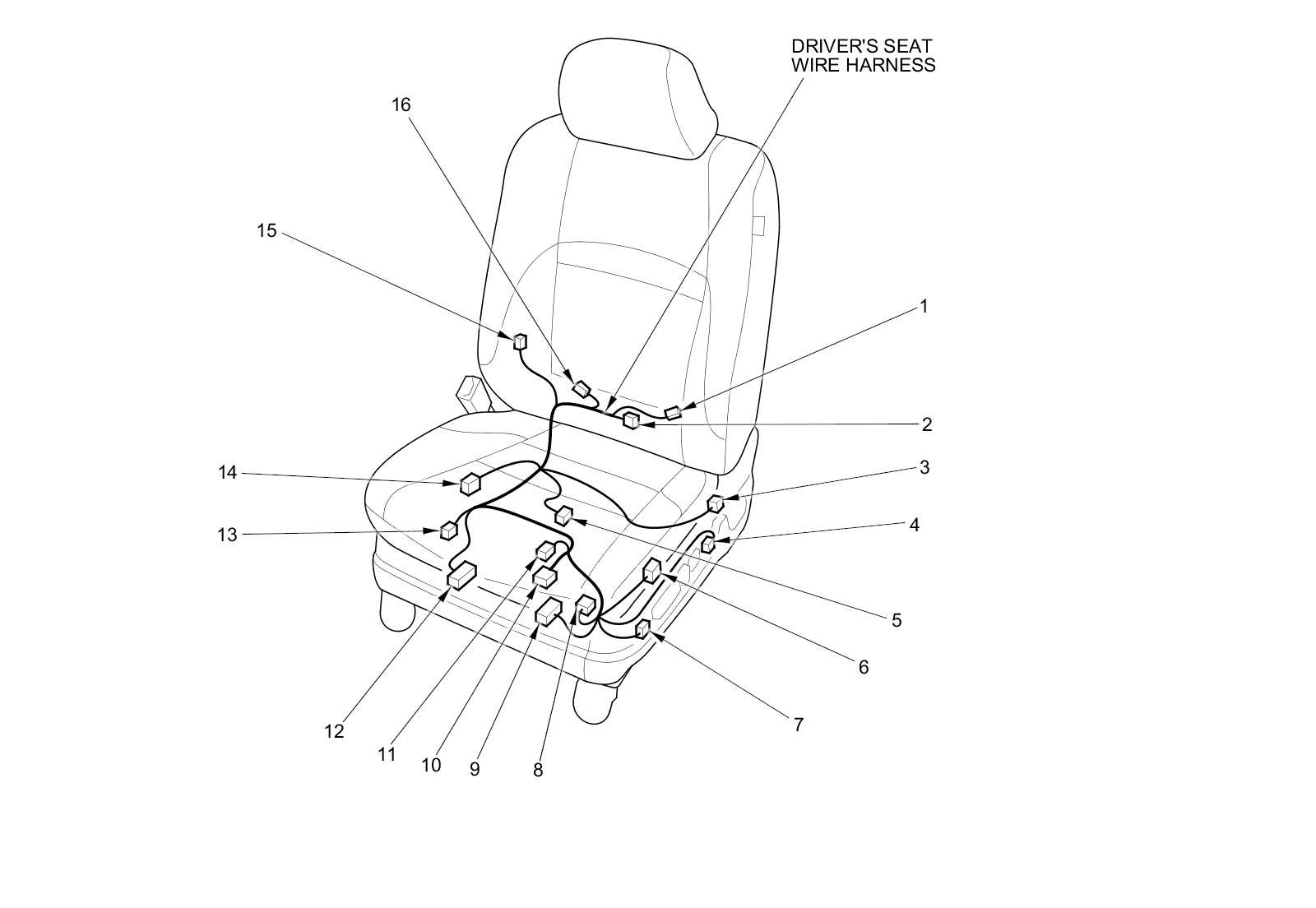

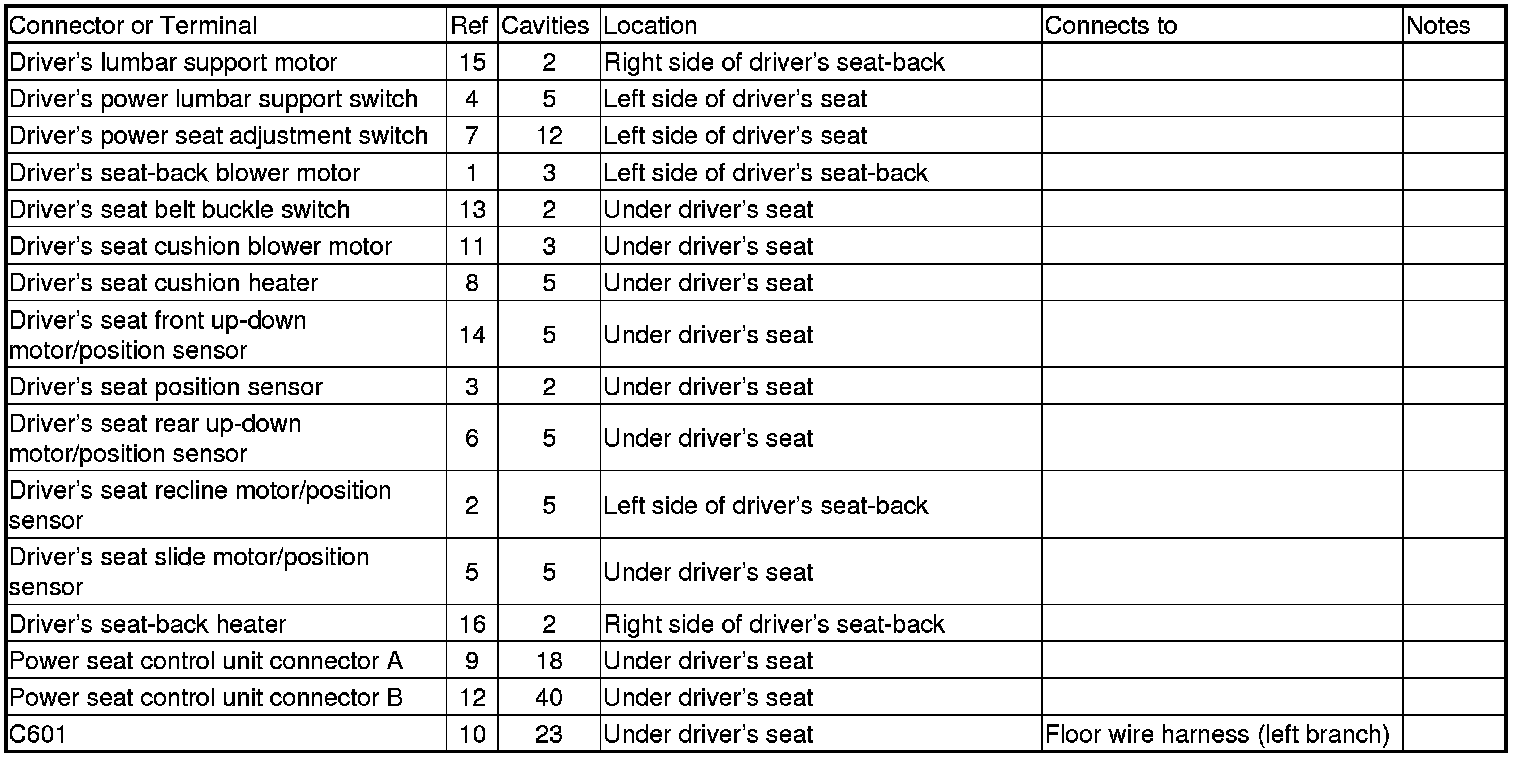

Driver's Seat Wire Harness (Without Seat Ventilation)
