Home >> Acura >> 2012 >> ZDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Harness >> A/C Wire Harness >> Connector and Harness Locations

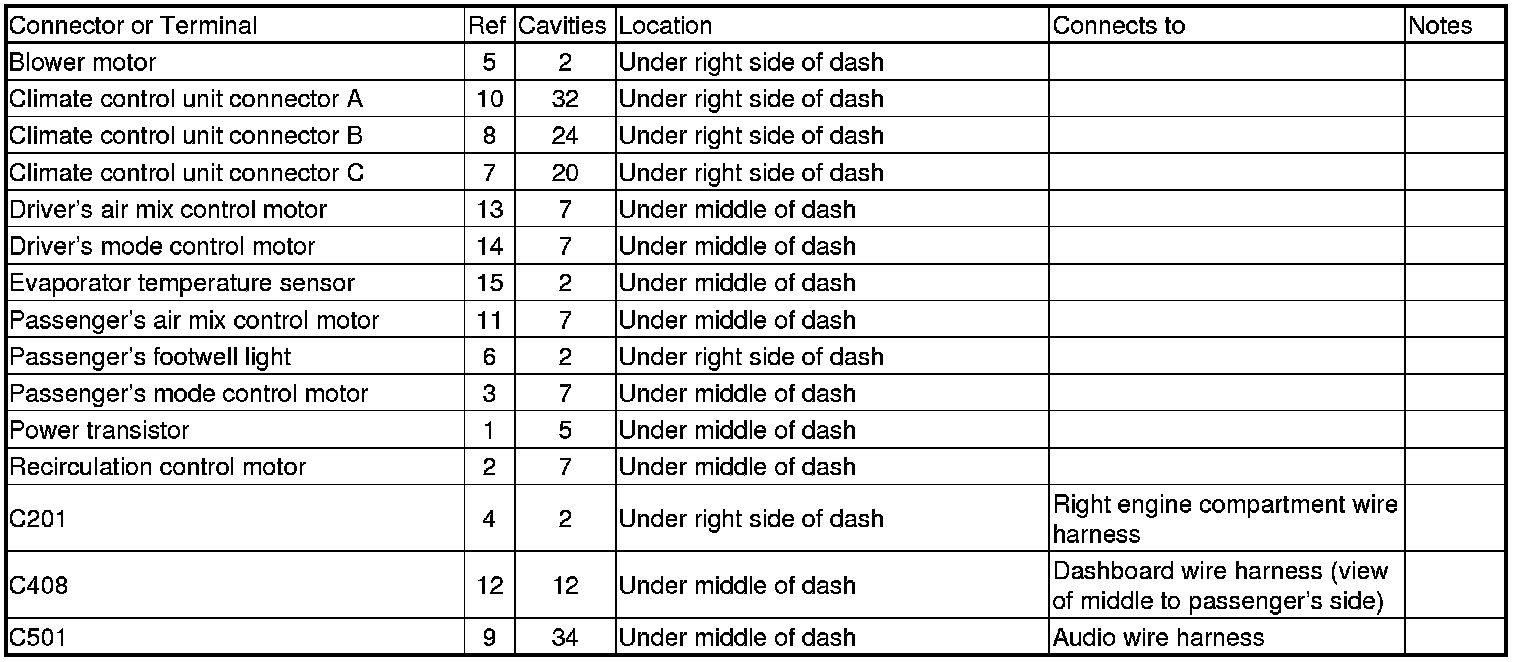

Connector and Harness Locations




Connector and Harness Locations

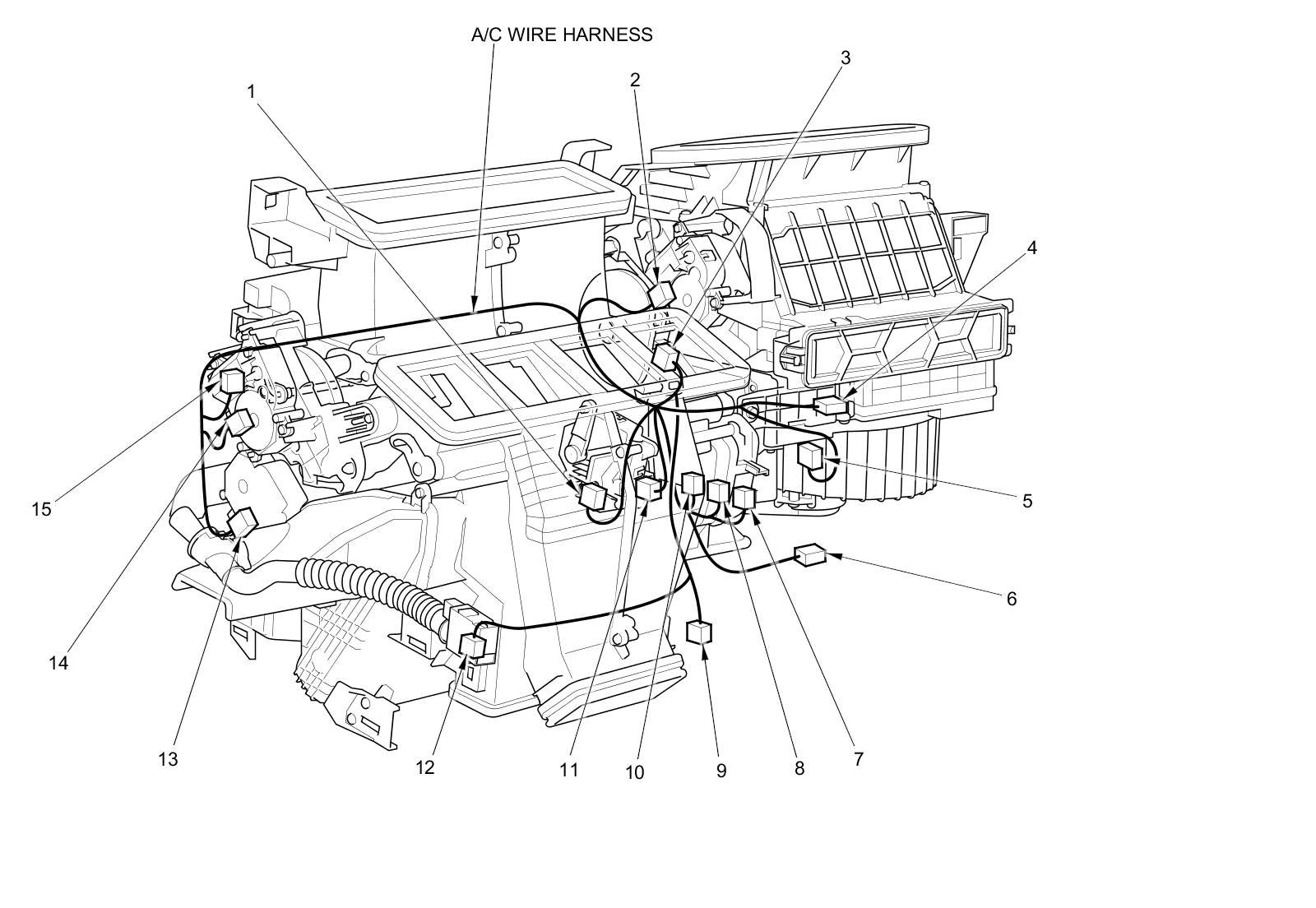

A/C Wire Harness
